Turn Signals: Service and Repair

Removal

Rear Combination Outside Lamp
1. Disconnect the negative (-) battery terminal.

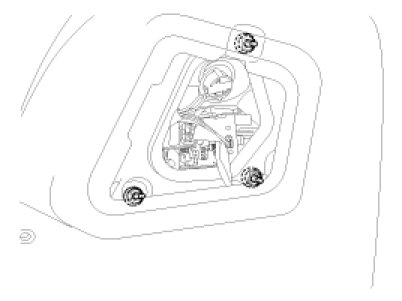

2. Loose the nuts holding the rear combination lamp (outside) then disconnect the connector.

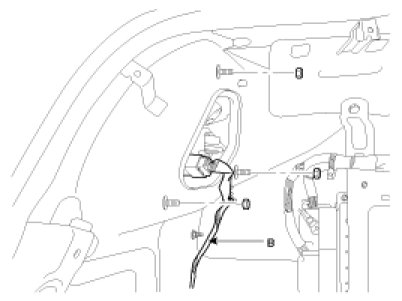

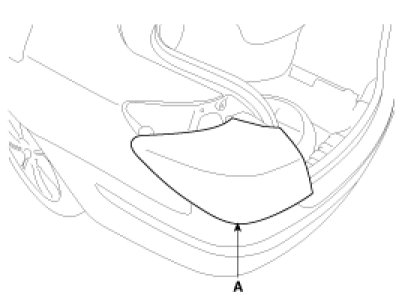

3. Remove the outside rear combination lamp (A) and connector (B).

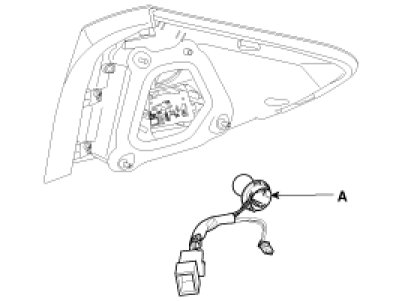

4. Replace the bulbs (A). (Replace the lamp assembly when the LED is out of order)





Rear Combination Inside Lamp
1. Disconnect the negative (-) battery terminal.

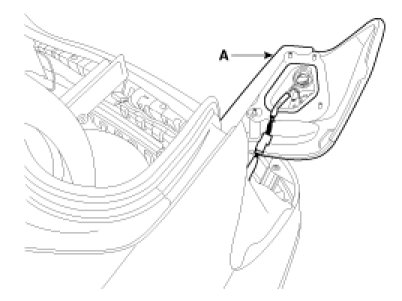

2. Loose the bolts holding the rear combination inside lamp (A) then disconnect the connector.




3. Replace the bulbs. (Replace the lamp assembly when the LED is out of order)

Installation

1. Install the rear combination outside lamp assembly.
2. Install the rear combination inside lamp assembly.
