Repair Procedures

Removal

AFLS unit
1. Disconnect the negative (-) battery terminal.

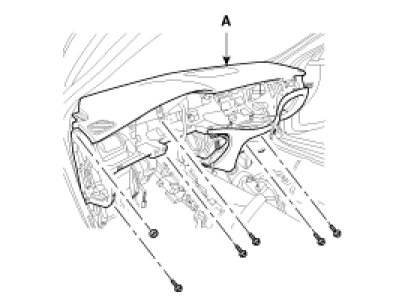

2. Remove the main crash pad (A).

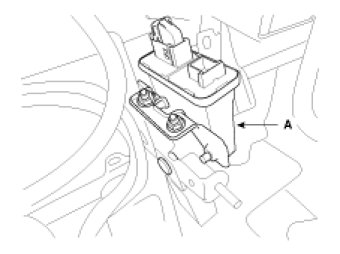

3. Remove the AFLS unit(A) after removing connector and nuts(2EA).






Installation

AFLS unit
1. Install the AFLS unit after connecting the connector.
2. Install the main crash pad.
3. Connect the negative (-) battery terminal.
