Head Lamp and Fog Lamp Aiming Point

Adjustment

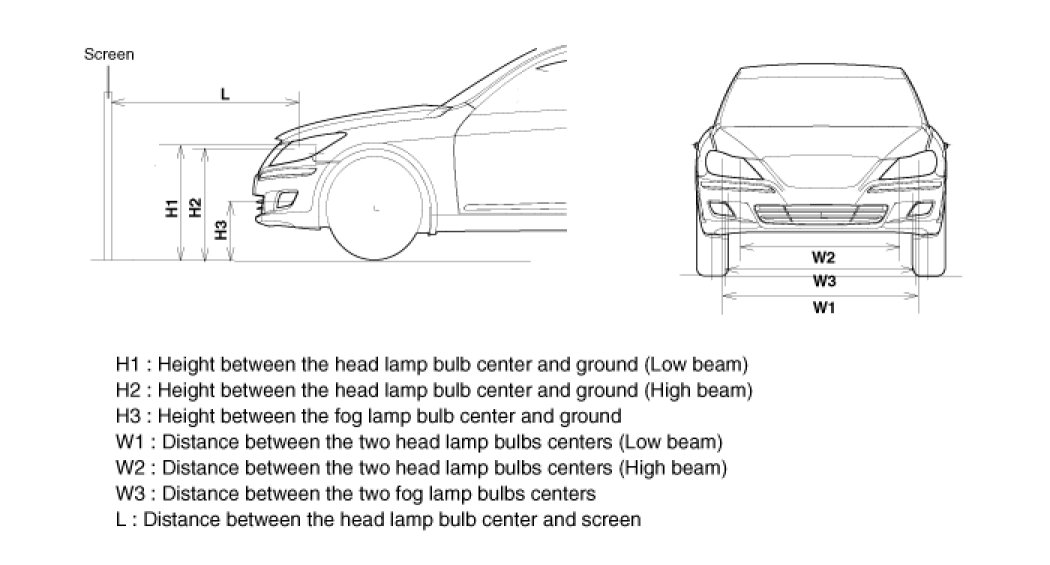

Head Lamp And Fog Lamp Aiming Point

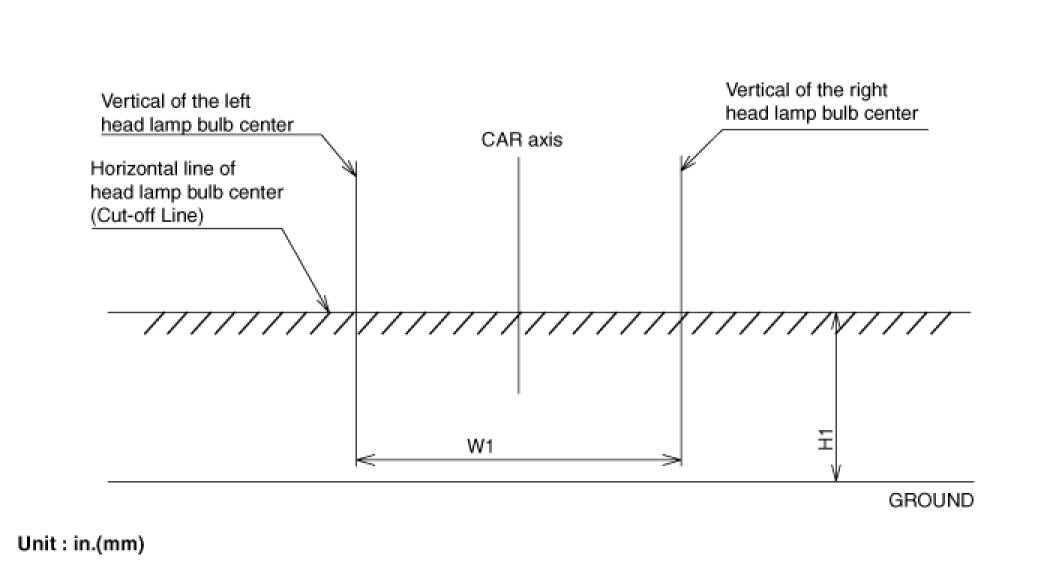

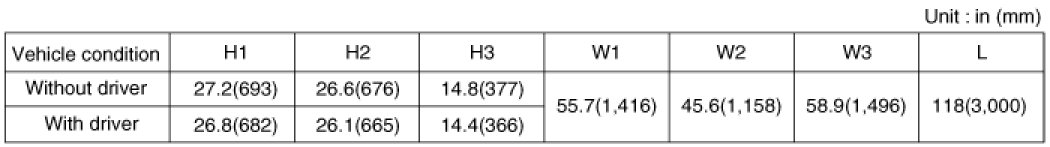

1. Turn the low beam on with driver.
In case of bulb option, the Cut-off line should be projected in the allowable range (shaded region).




* In case of high beam, head lamp do not need aiming with proper beam-setting equipment.

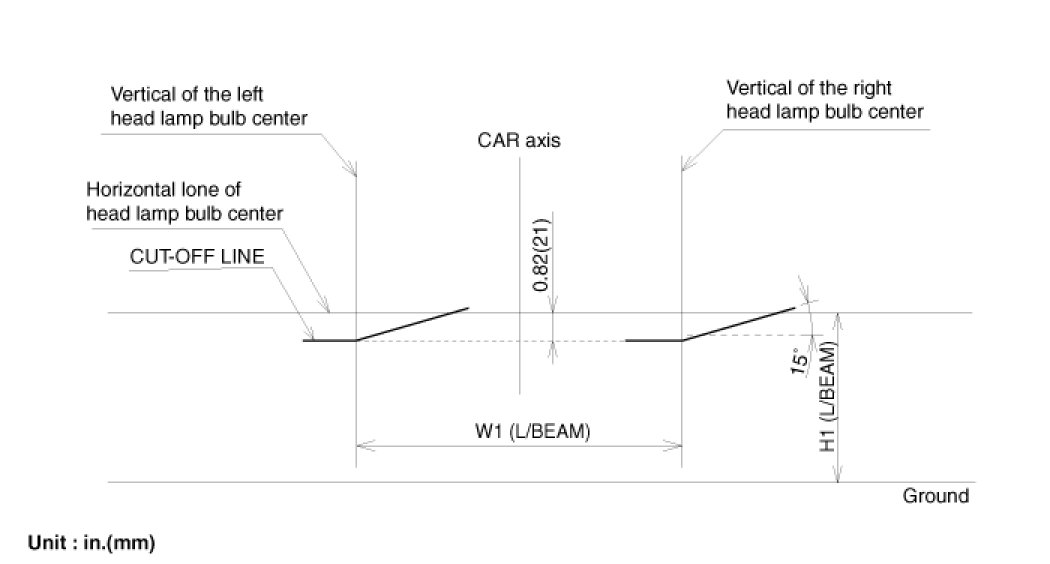

2. Turn the low beam on with driver.
In case of HID option, the Cut-off line should be projected in the allowable range shown in the picture.
In case of equipping with the auto leveling device, set the initialization by using the diagnostic tool before aiming.

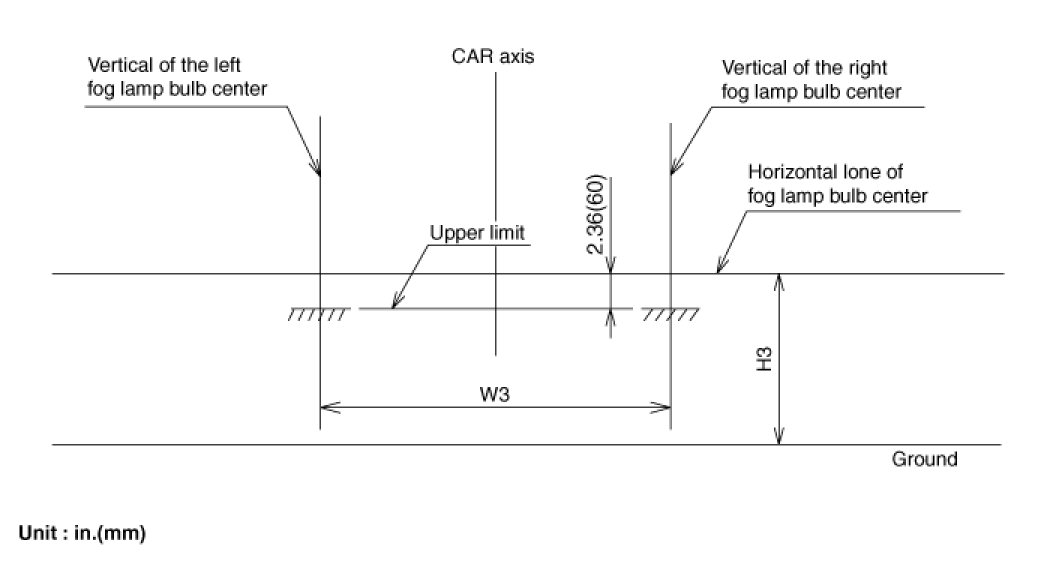

3. Turn the front fog lamp on with driver.
The cut-off line should be projected in the allowable range (shaded region)
