Console Lamp: Service and Repair

Inspection

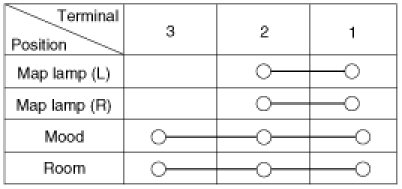

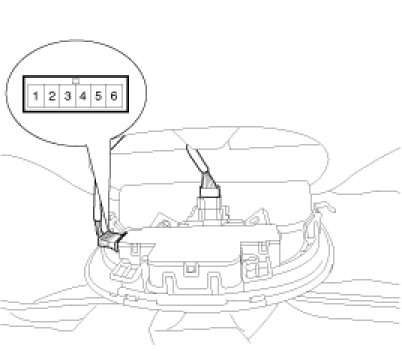

Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.










Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the overhead console lamp(A) after loosening the overhead console lamp screw(2EA).

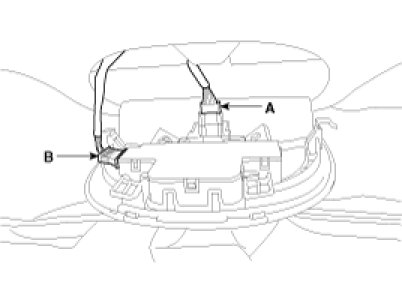

3. Disconnect the sunroof switch and lamp connector (B).






Installation

1. Install the overhead console lamp after connecting the sunroof switch connector and lamp connector.
2. Install the lens after tightening 2 screws.
