Instrument Panel, Gauges and Warning Indicators: Testing and Inspection

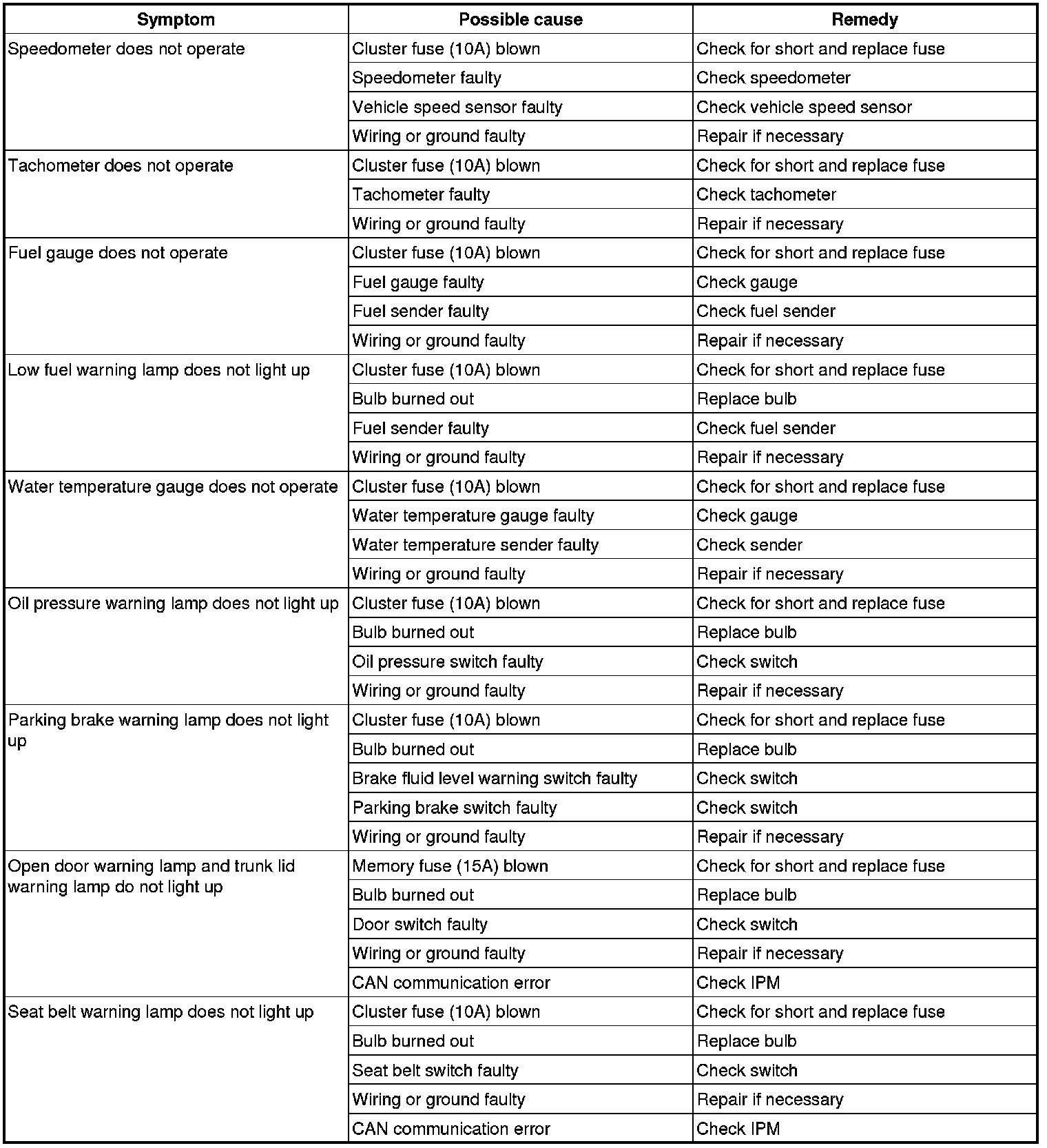

Troubleshooting





Diagnosis With Scan Tool
1. It will be able to diagnose defects of cluster (CLU) with scan tool quickly. Scan tool can operates actuator forcefully, input/output value monitoring and self diagnosis.

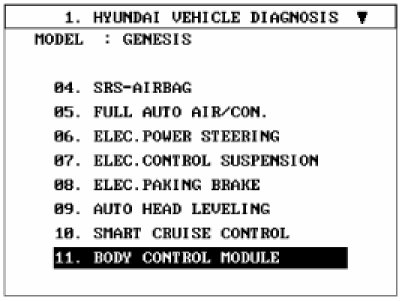

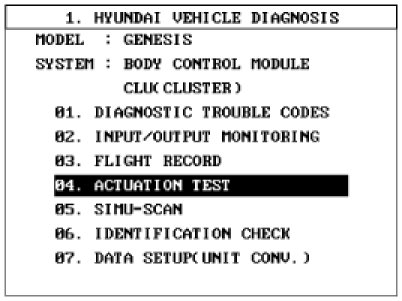

2. Select model and "BCU".

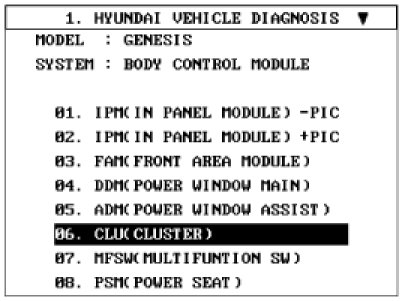

3. Select the "CLU (Cluster)" to check.

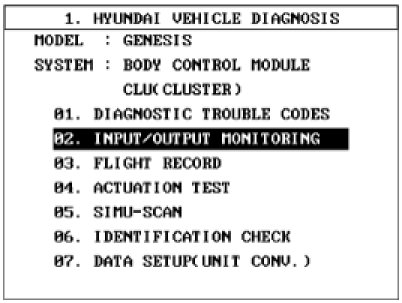

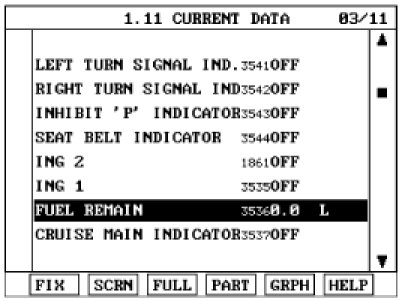

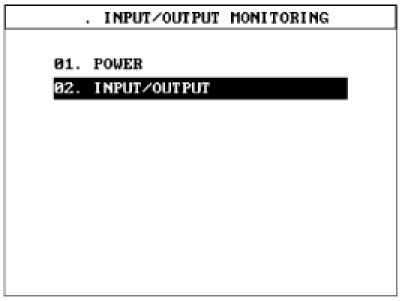

4. Select "Input/output monitoring", if you will check current data of cluster system. It provides input/output status of cluster.

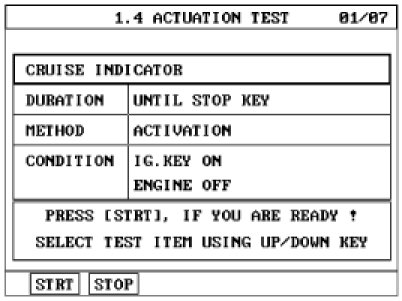

5. If you will check the cluster operation forcefully, select "Actuation test".

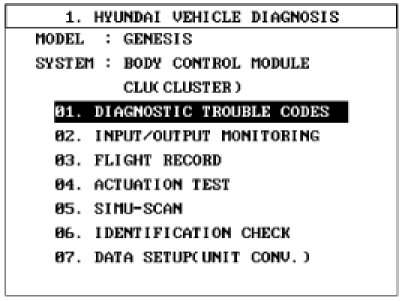

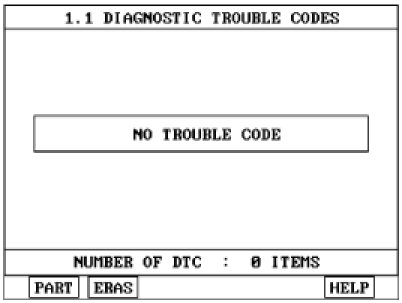

6. To check the DTC of the each module, select "Diagnostic trouble codes"
