Repair Procedures

Self Diagnosis

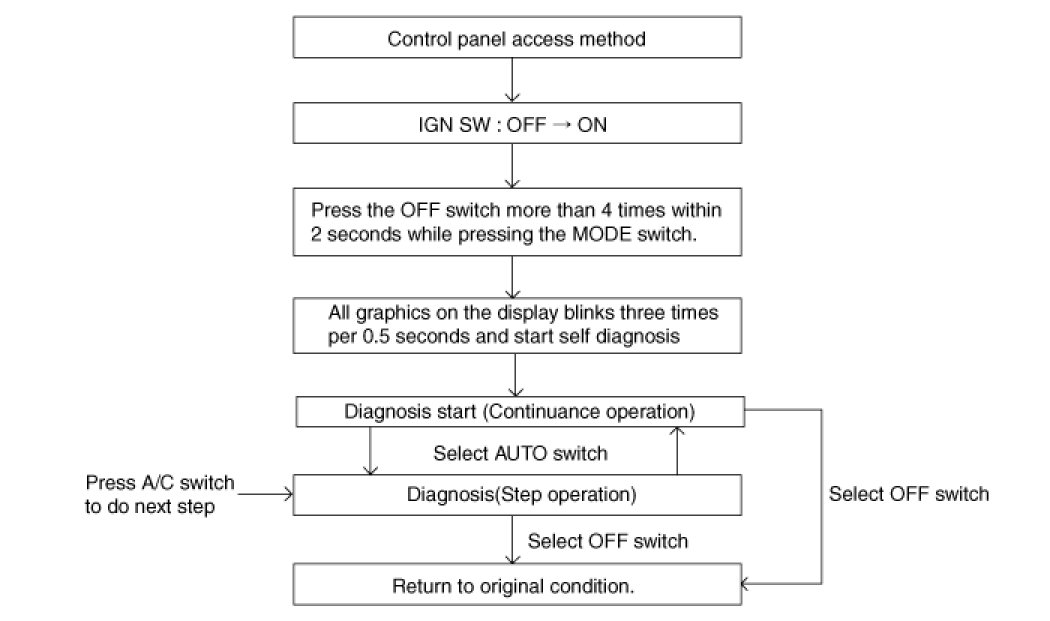

1. Self-diagnosis process
The F.A.T.C. module self test feature will detect electrical malfunction and provide error codes for system components with suspected failures.





NOTE:
DTC data can be retrieved from the control panel directly or from the DLC using the Hi-Scan Pro.

2. How to read self-diagnostic code

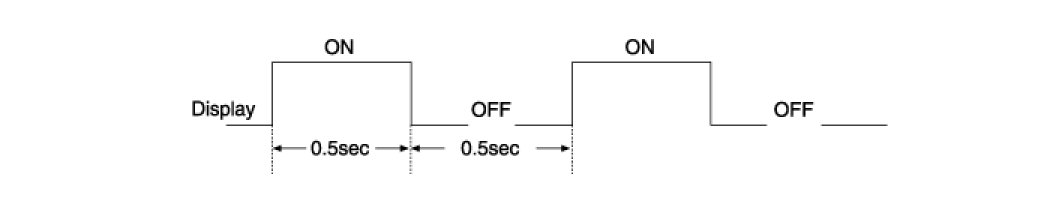

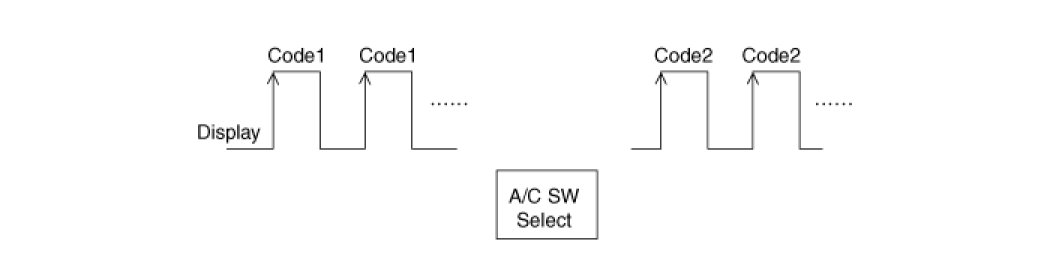

After the display panel flickers three times every 0.5 second, the corresponding fault code flickers on the setup temperature display panel every 0.5 second and will show two figures. Codes are displayed in numerical format.
Fault code





3. Fault code display

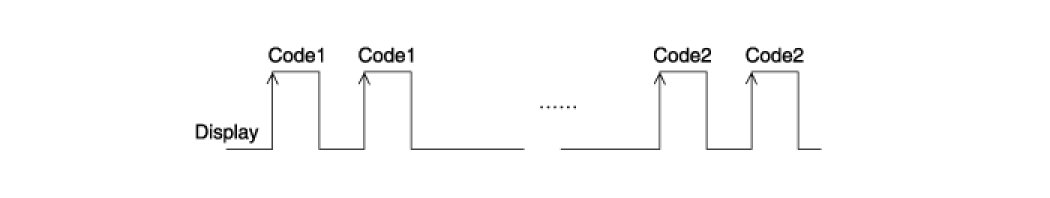

(1) Continuance operation : DTC code is one




(2) Continuance operation : DTC code is more two




(3) Step operation
A. Normal or one fault code is same a continuance
B. DTC code is more two

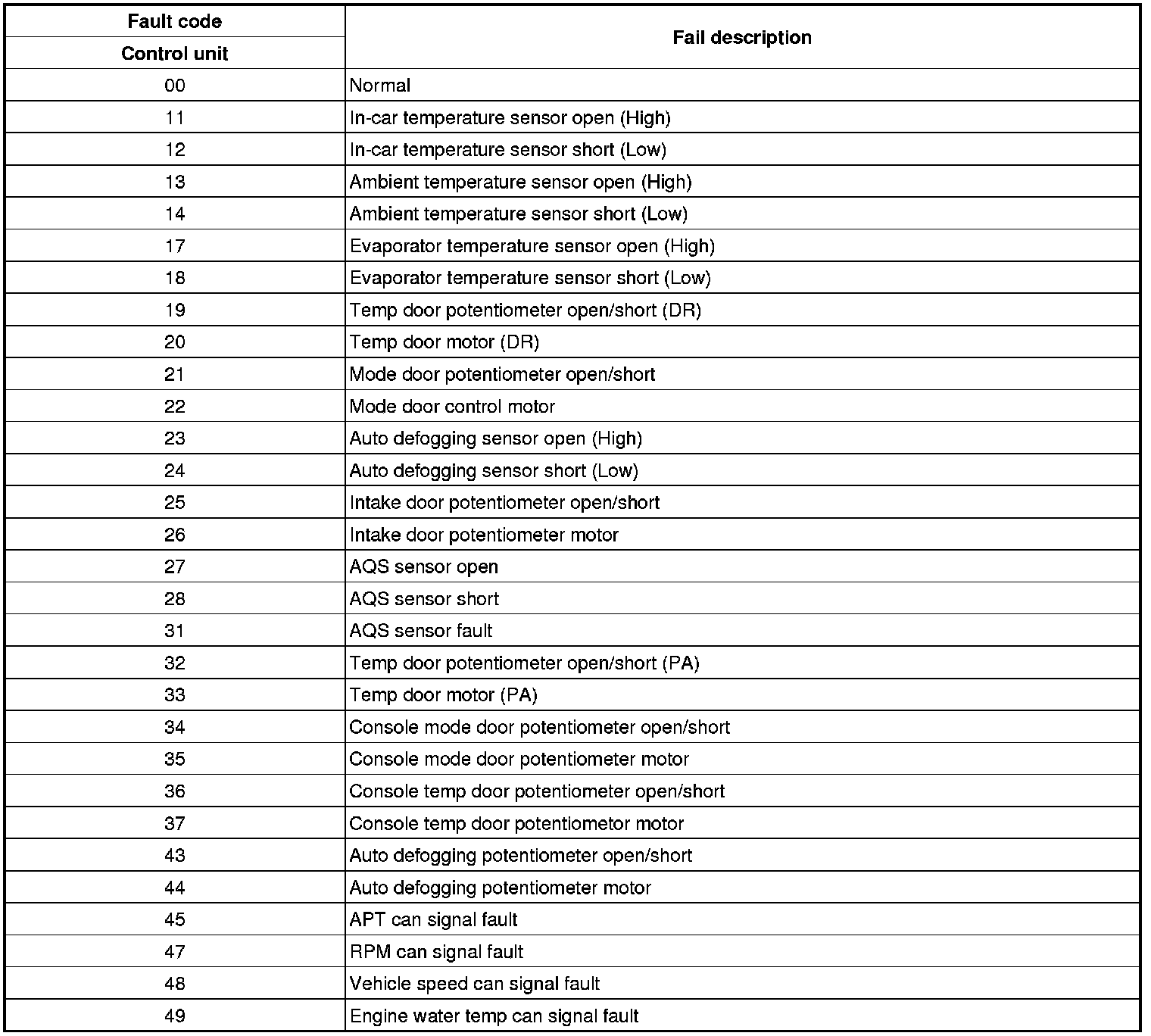

4. If fault codes are displayed during the check, Inspect malfunction causes by referring to fault codes.
5. Fail safe
(1) In-car temperature sensor: Control with the value of 25°C (77°F)
(2) Ambient temperature sensor: Control with the value of 20°C (67°F)
(3) Evaporator temperature sensor: Control with the value of -2°C (28.4°F)
(4) Temperature control actuator (Air mix potentiometer):
If temperature setting 17°C-24.5°C, fix at maximum cooling position.
If temperature setting 25°C-32°C, fix at maximum heating position
(5) Mode control actuator (Direction potentiometer):
Fix vent position, while selecting vent mode.
Fix defrost position, while selecting all except vent mode.
(6) Intake control actuator :
Fix fresh position, while selecting fresh mode.
Fix recirculation position, while selecting recirculation mode.
(7) AQS sensor : AQS operation OFF.
Intake position : The position before selecting AQS switch.
(8) Photo sensor : Control with the value 0w/m2
(9) Console temp switch :
When the console temperature S/W voltage is less than 0.1 V ; Fix cool position.
When the console temperature S/W voltage is more than 4.9 V ;Fix warm position.
(10) Console vent potentiometer :
When the console temperature S/W voltage is less than 2.5 V ; Fix cool position.
When the console temperature S/W voltage is more than 2.5 V ;Fix warm position.
(11) Console temp potentiometer :
When the console temperature S/W voltage is less than 2.5 V ; Fix cool position.
When the console temperature S/W voltage is more than 2.5 V ;Fix warm position.
(12) Console door potentiometer :
Fix close position, while selecting vent mode.
Fix open position, while selecting all except vent mode.
(13) Auto defog sensor : Control with the value of 0%.

Replacement

1. Disconnect the negative (-) battery terminal.

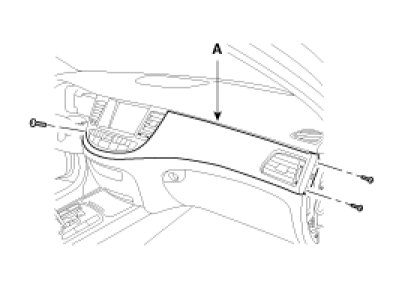

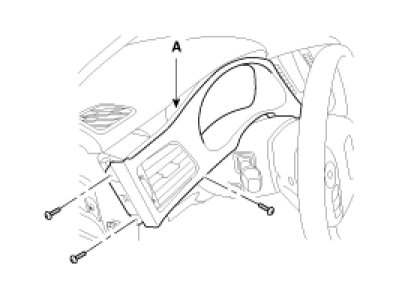

2. Remove the cluster garnish (A).

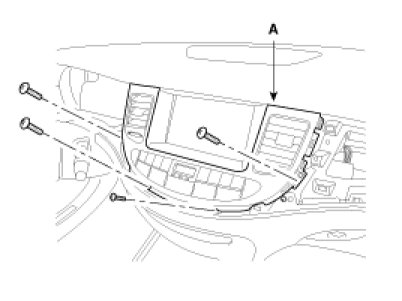

3. Remove the center garnish (A).

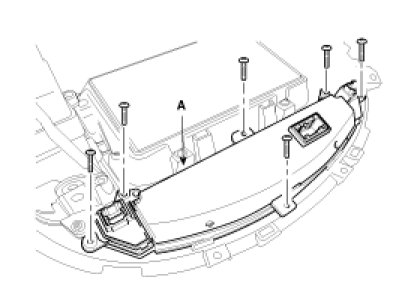

4. Remove the heater & A/C controller (A) after loosening 4 screws.

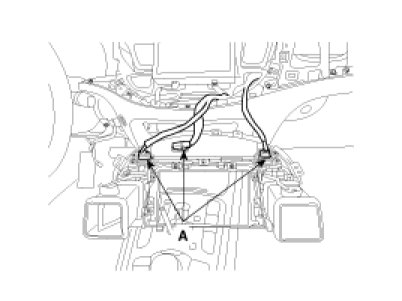

5. Disconnect the connector (A) and then remove the center facia panel.




6. Remove the heater & A/C controller (A) from center facia panel.




7. Installation is the reverse order of removal.
