Repair Procedures

Removal and Installation

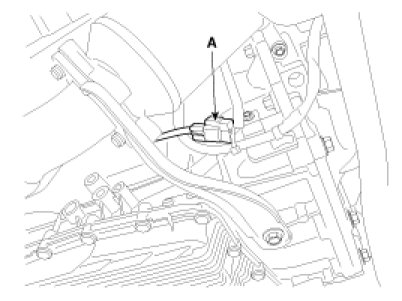

1. Disconnect the rear oxygen sensor (HO2S) connector (A) on LH and RH side.

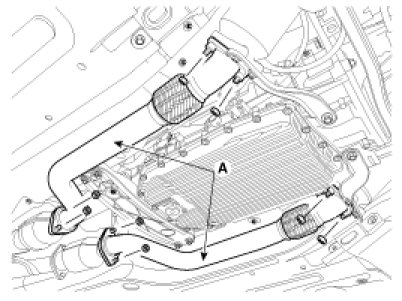

2. Remove the front muffler (A) on LH and RH side.

Tightening torque :
39.2 - 58.8N.m (4.0 - 6.0kgf.m, 28.9 - 43.4lb-ft)

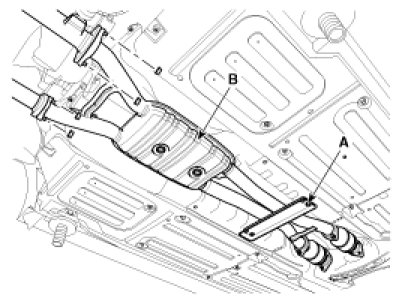

3. Remove the center muffler (B) after removing the tunnel stay (A).

Tightening torque :
39.2 - 58.8N.m (4.0 - 6.0kgf.m, 28.9 - 43.4lb-ft)

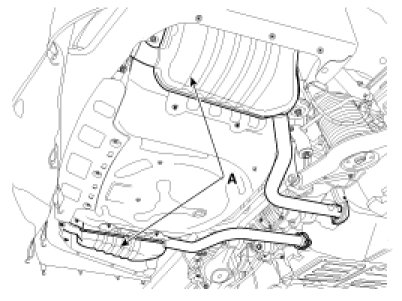

4. Remove the main muffler (A).




5. Installation is reverse order of removal.
