Engine Control Module





ECM Terminal And Input / Output signal

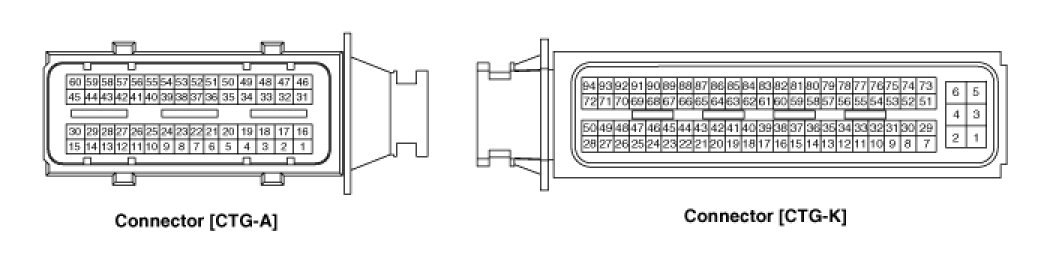

ECM Harness Connector

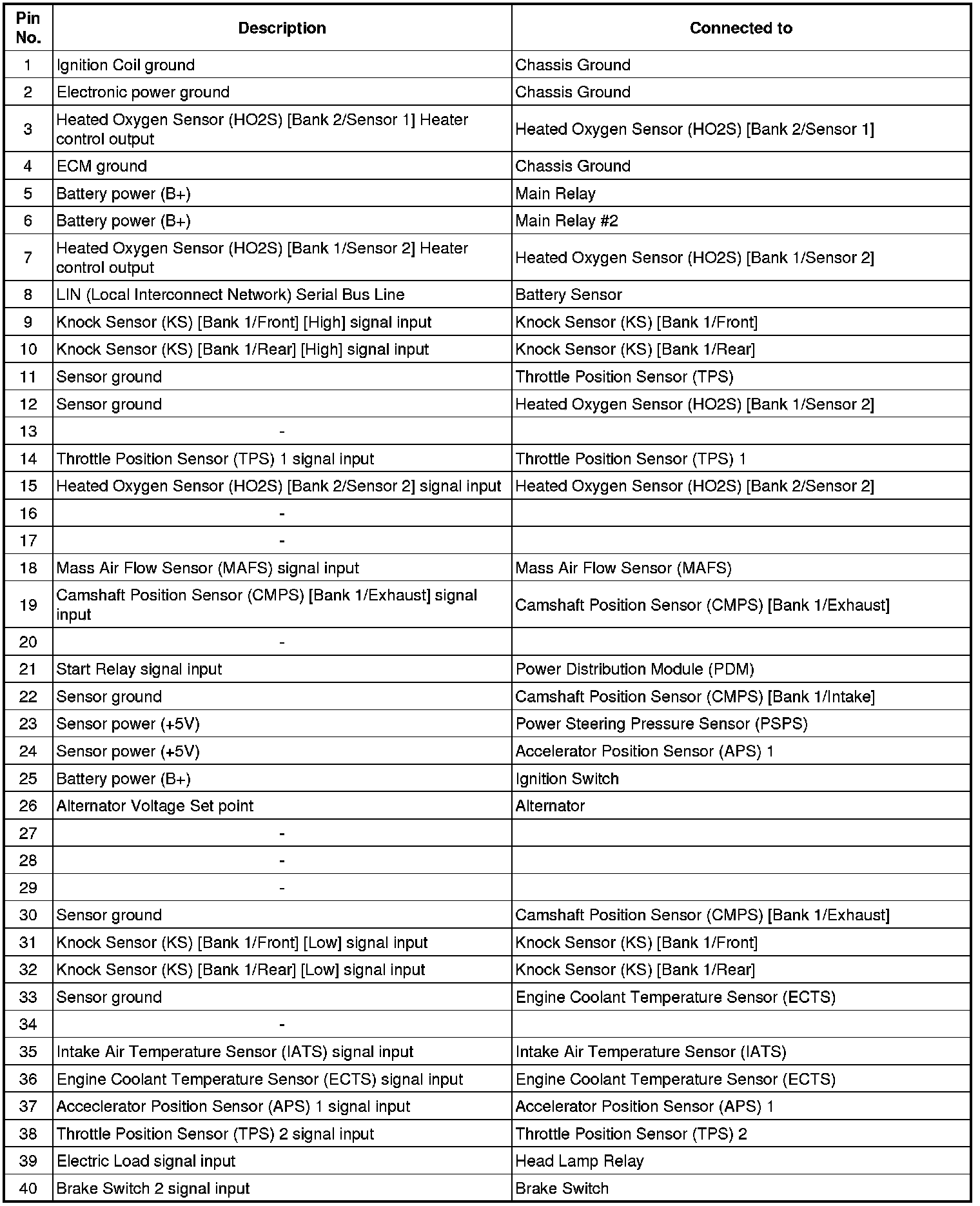

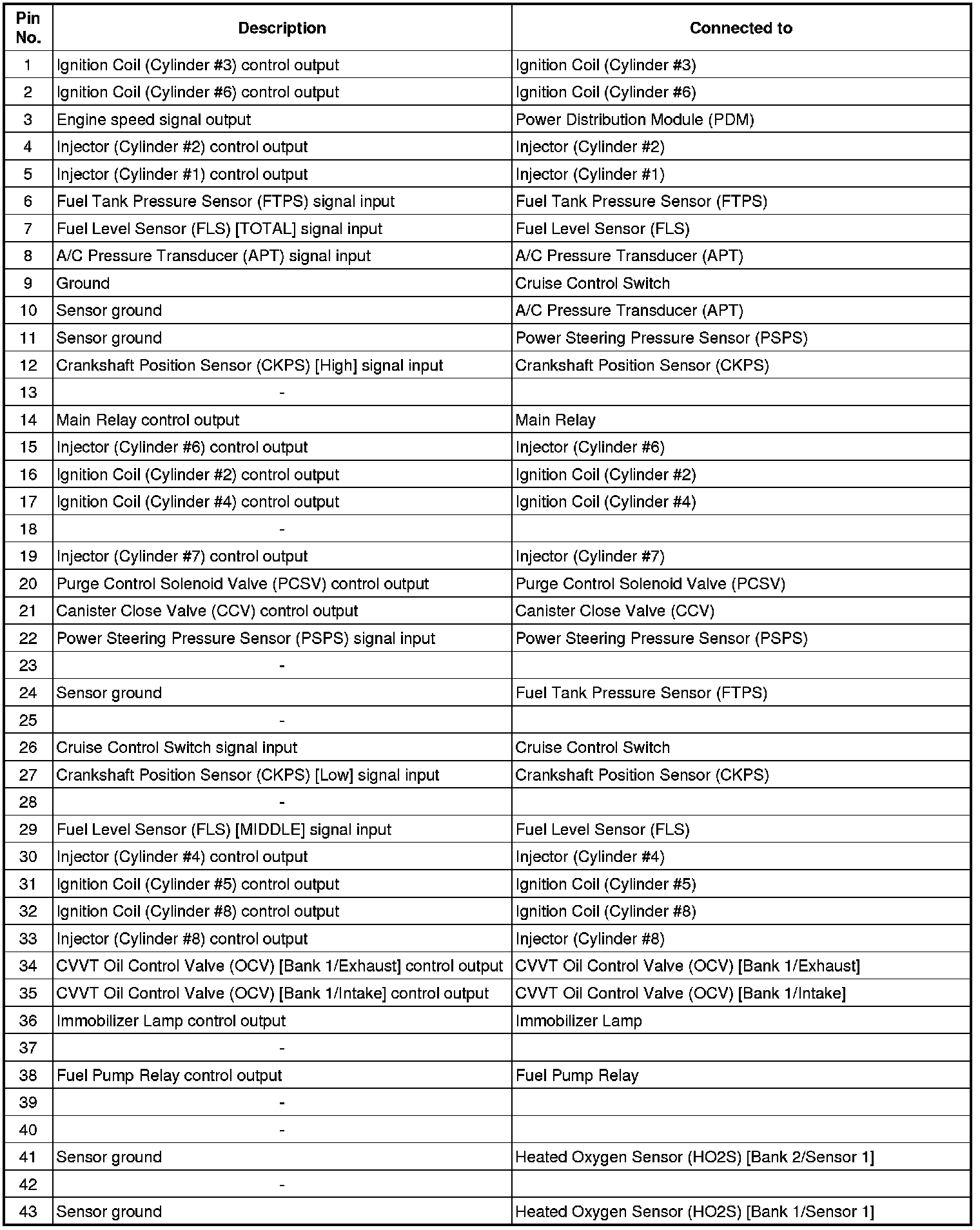

ECM Terminal Function
Connector [CTG-A]









Connector [CTG-K]

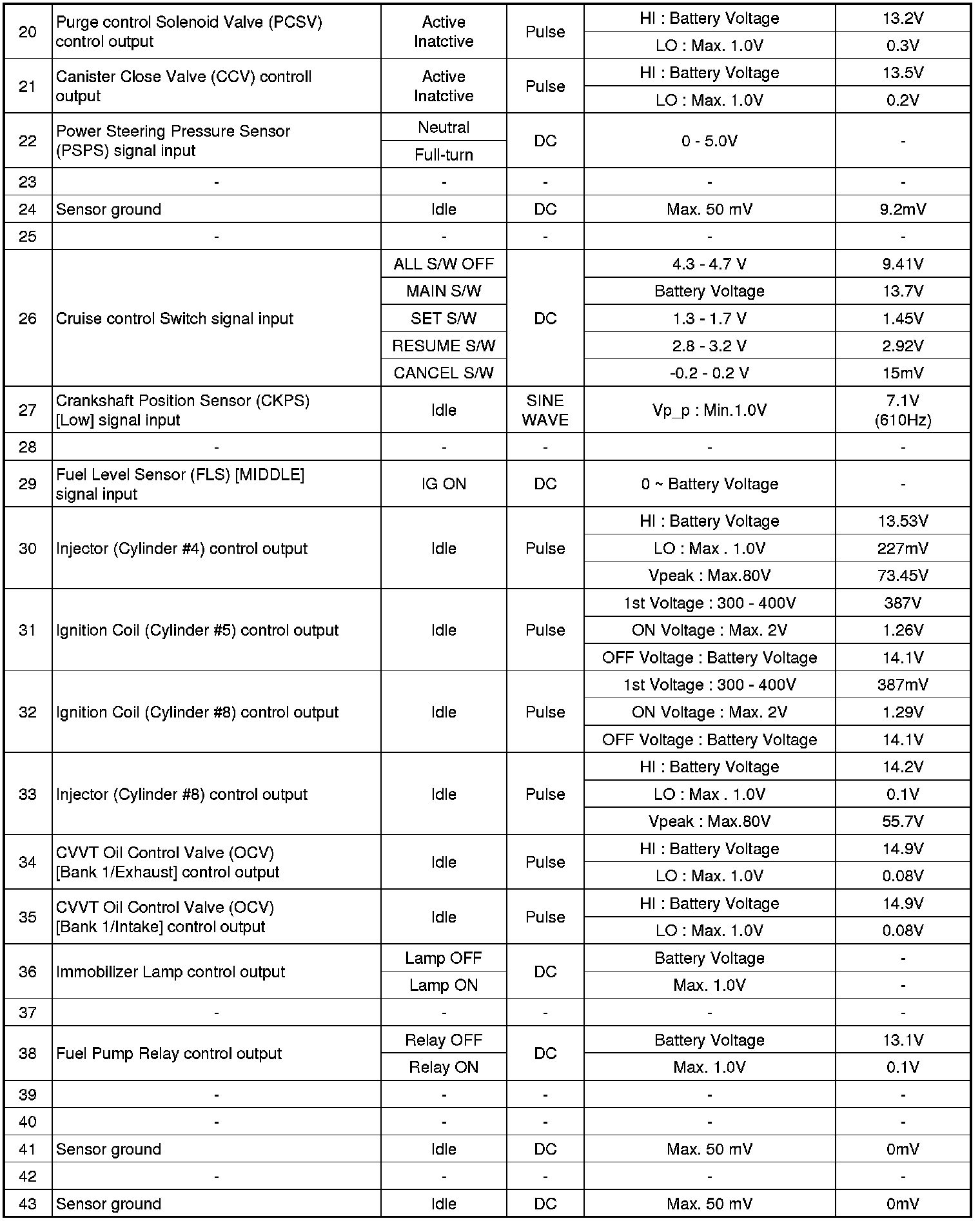

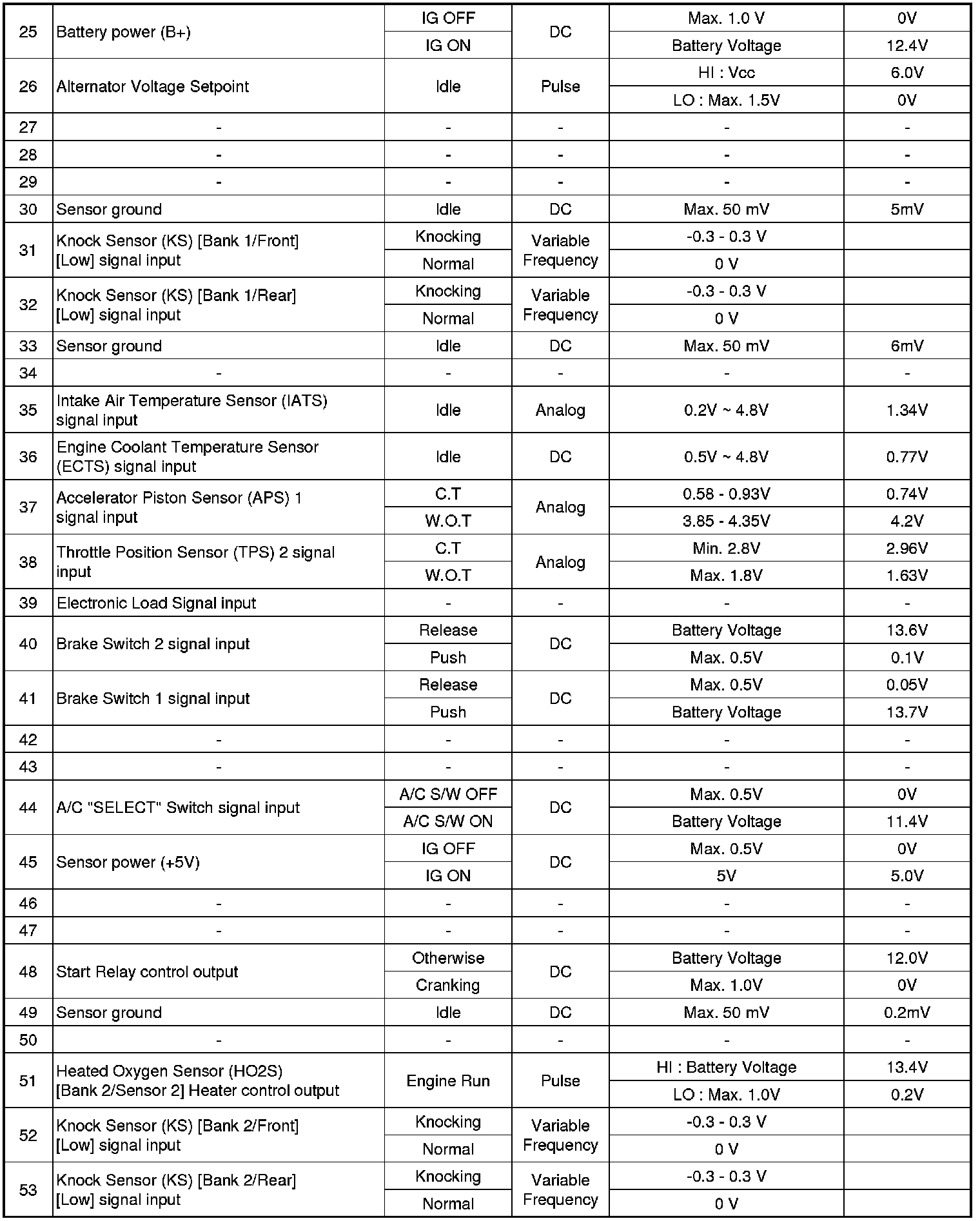

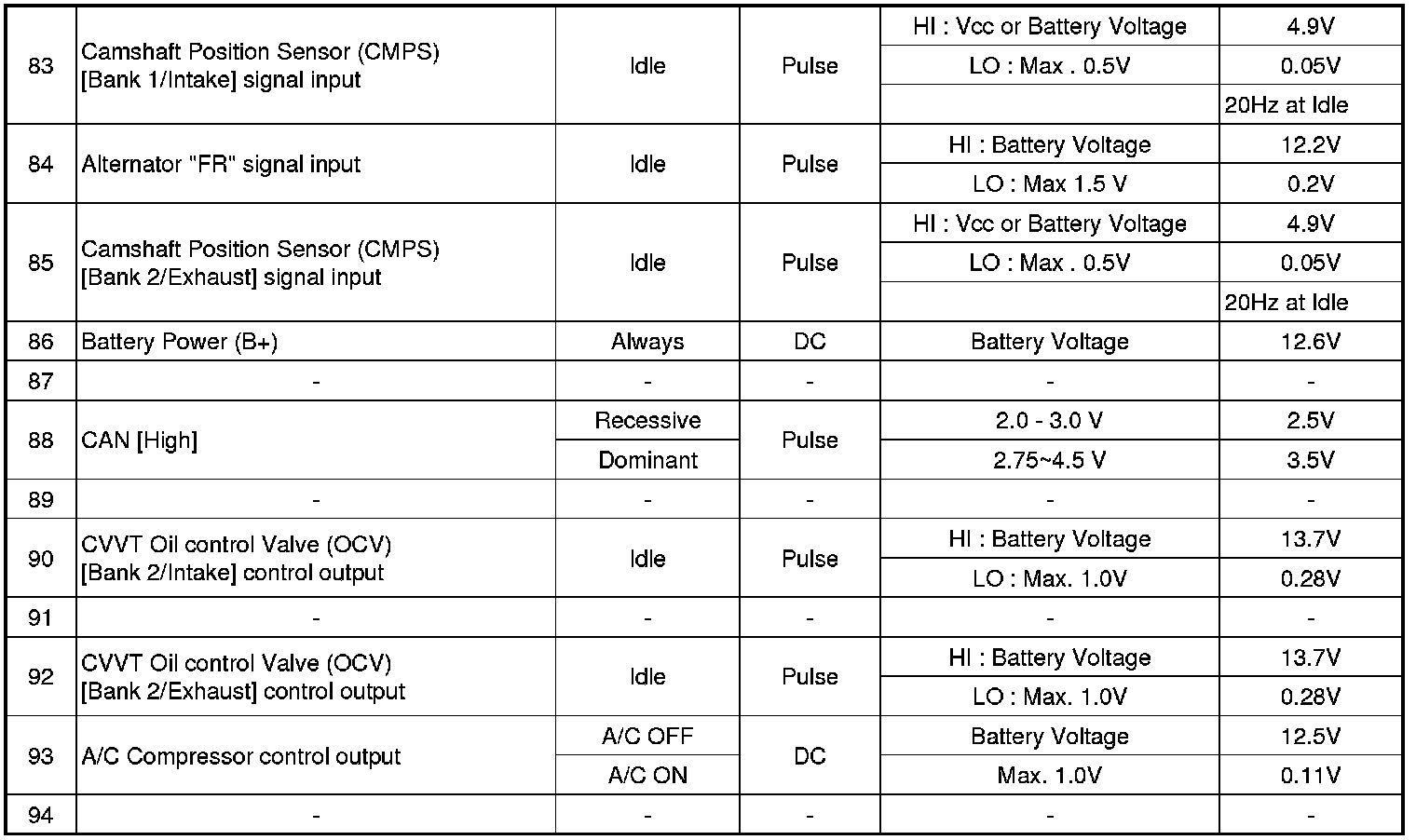

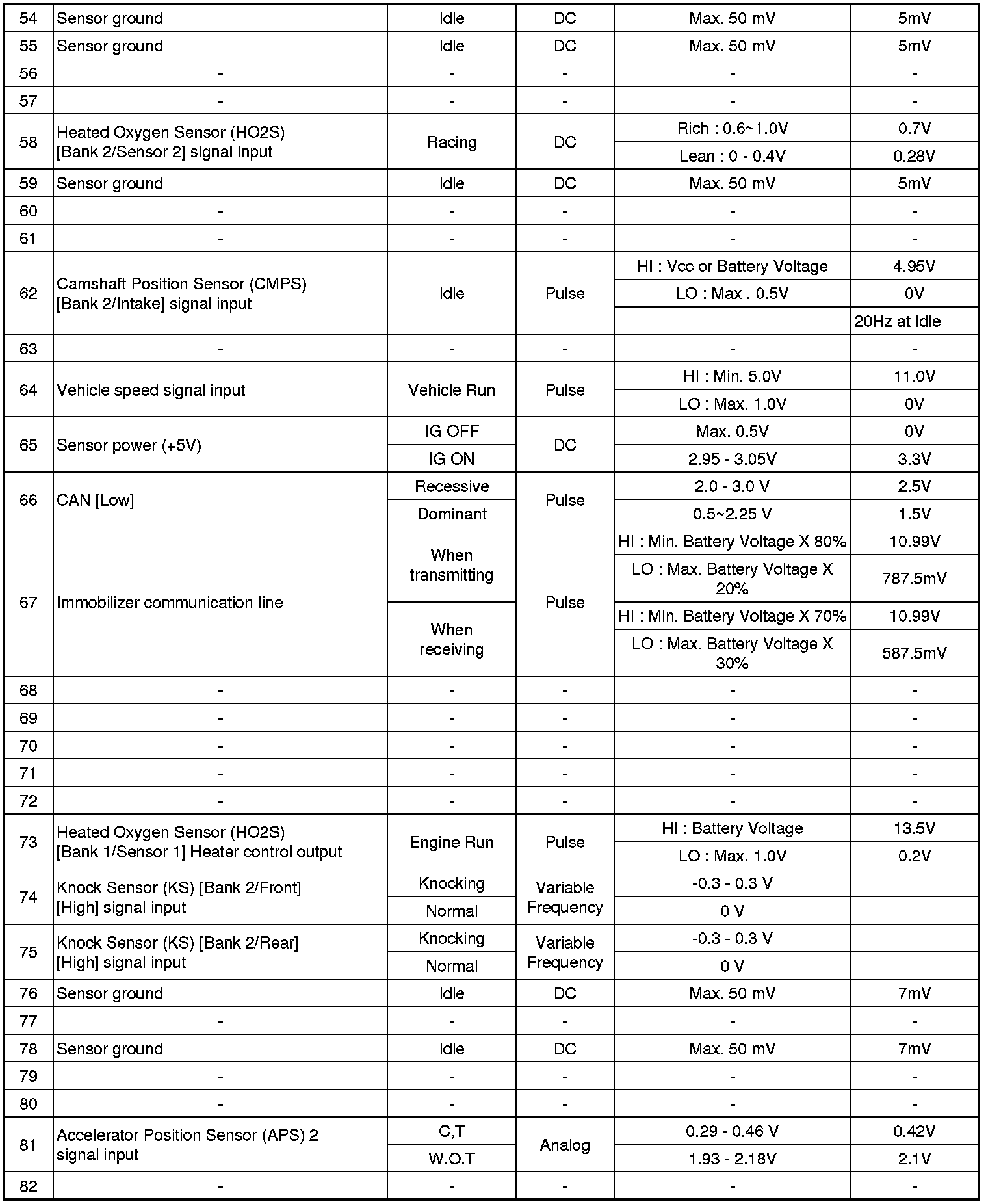

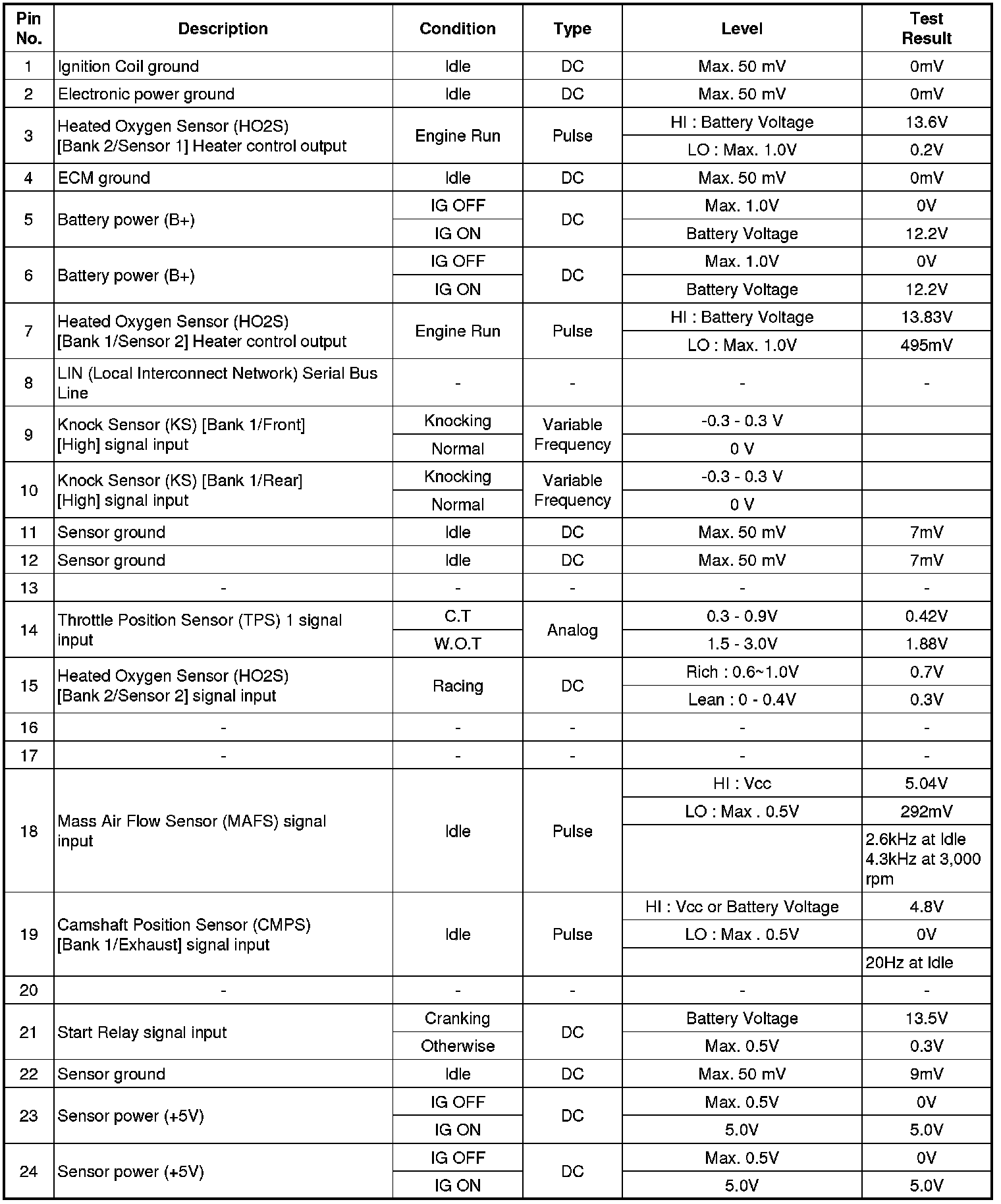

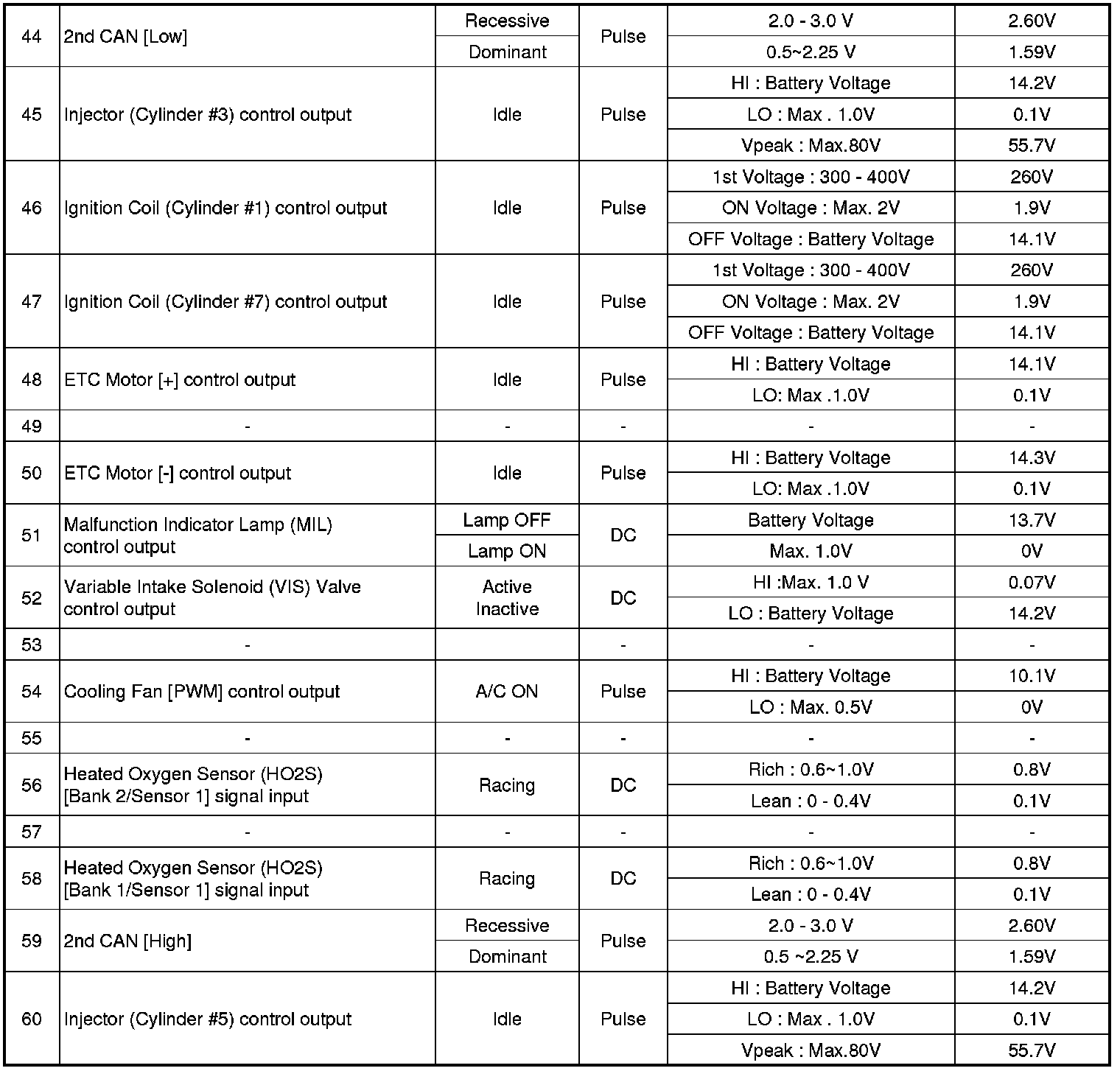

ECM Terminal Input/ Output signal

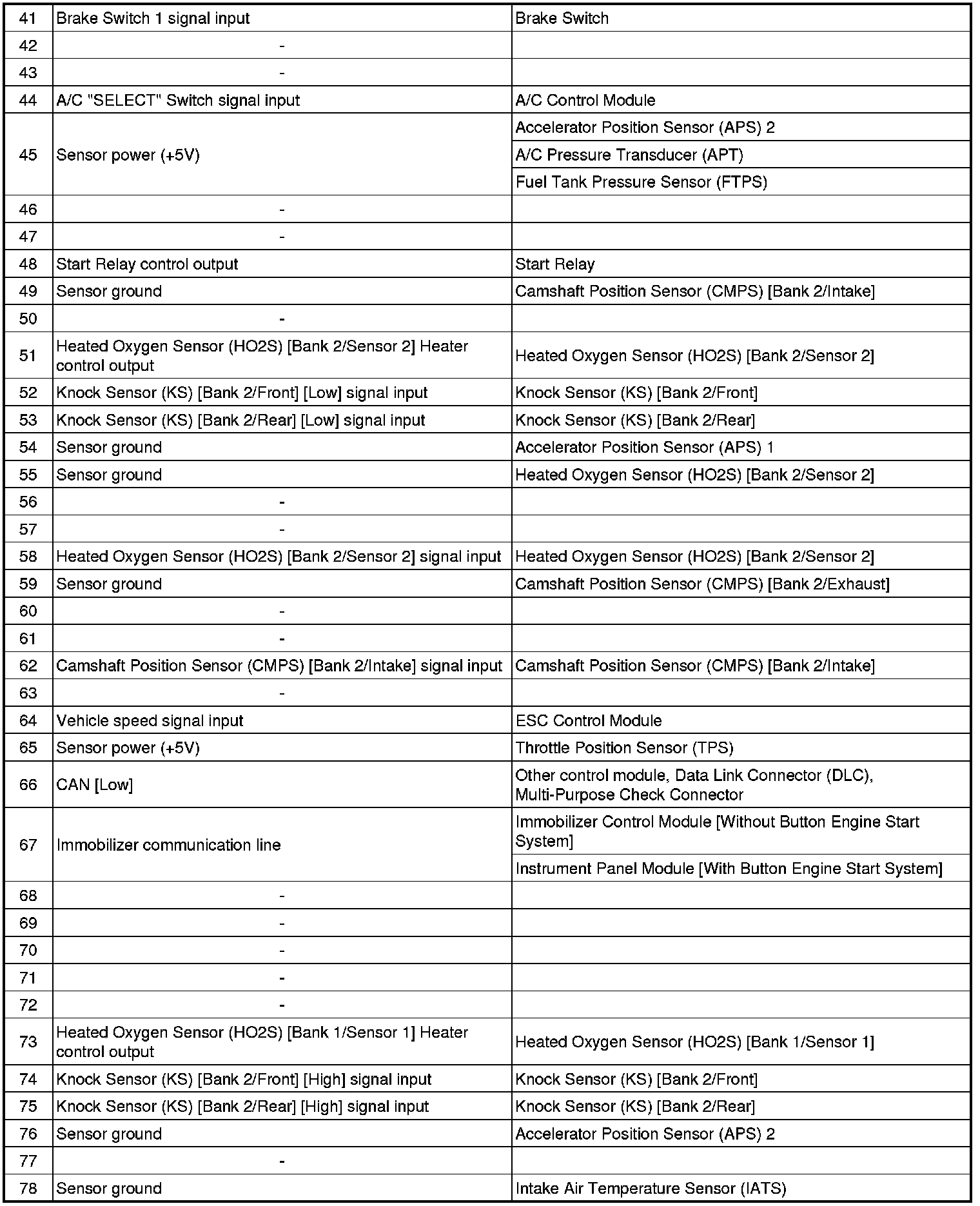

Connector [CTG-A]

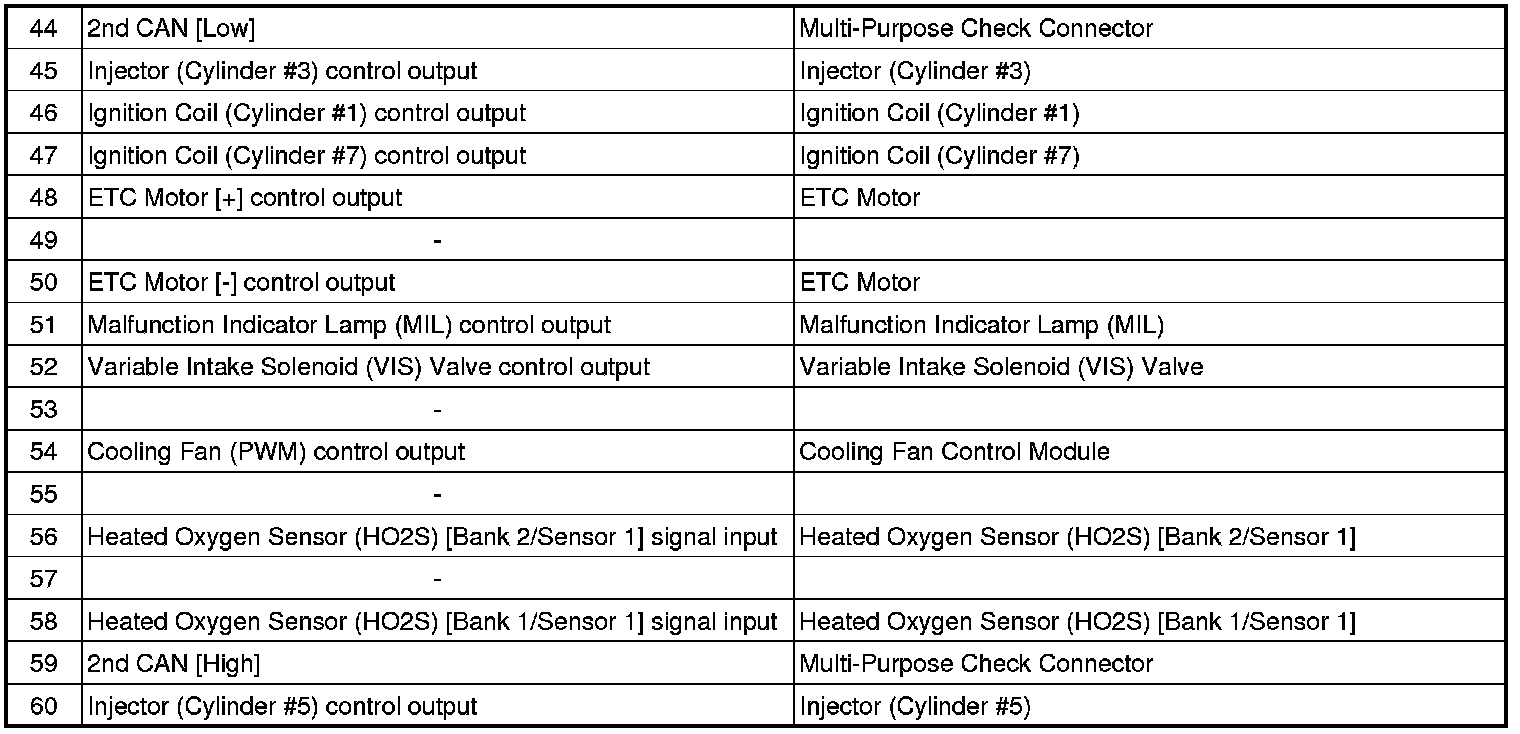

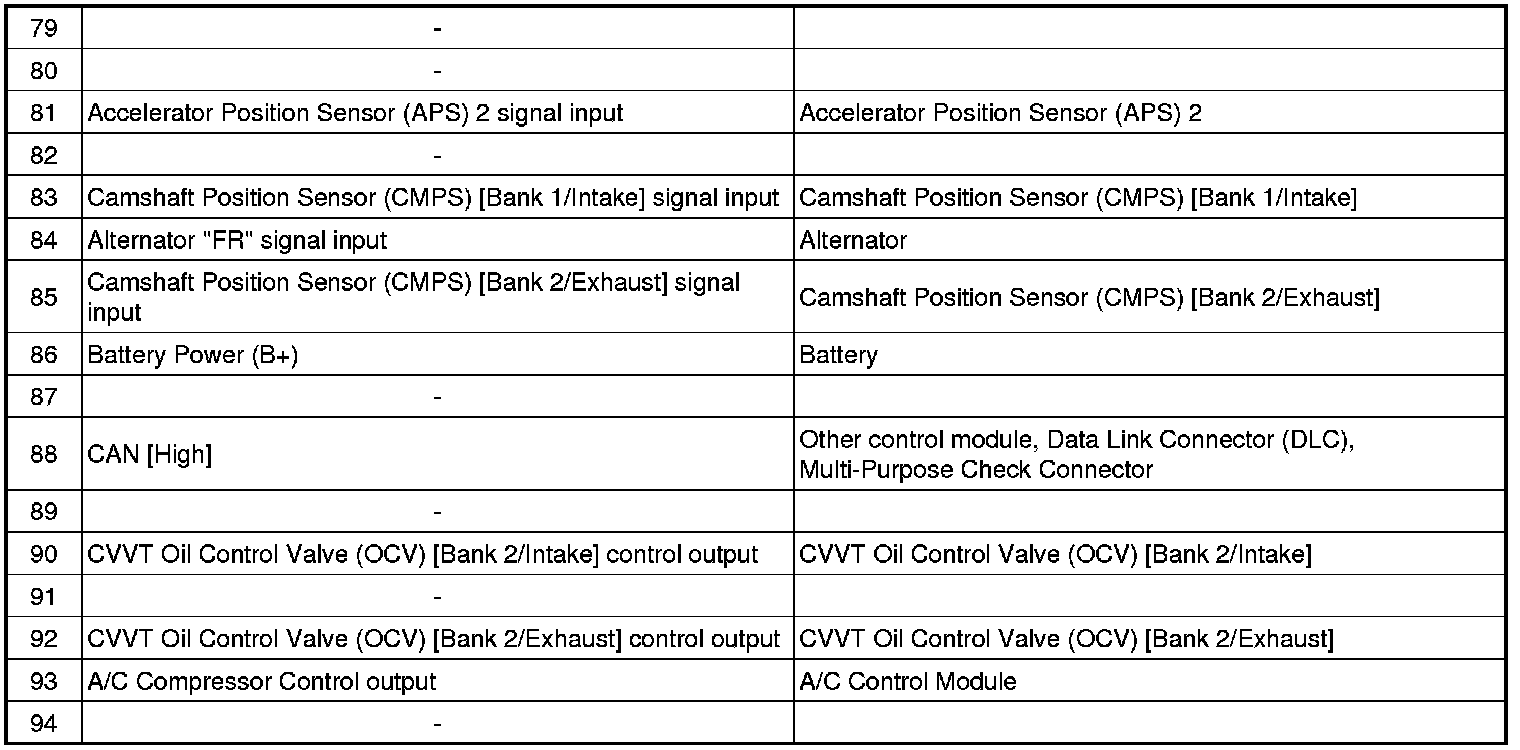

Connector [CTG-K]

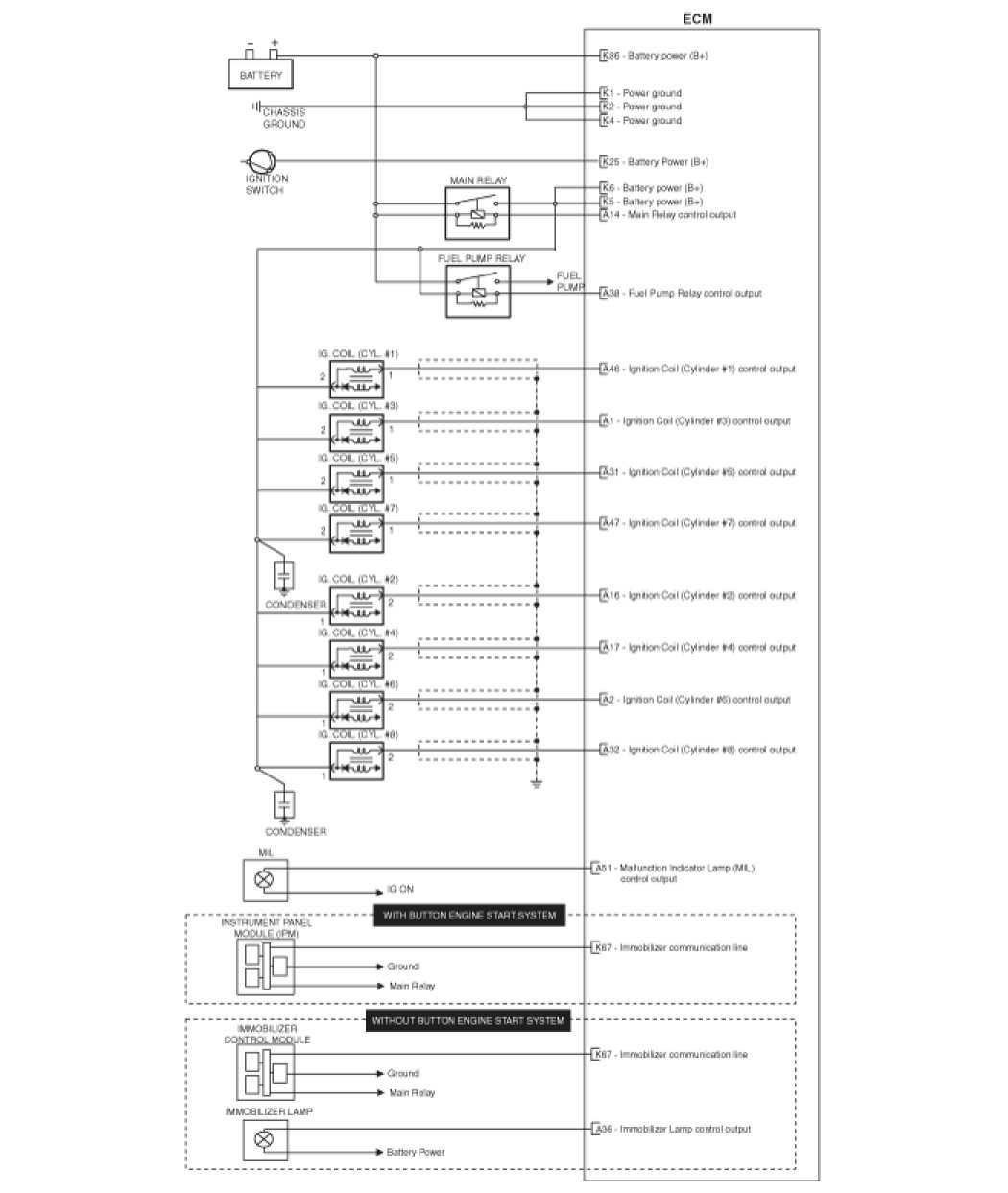

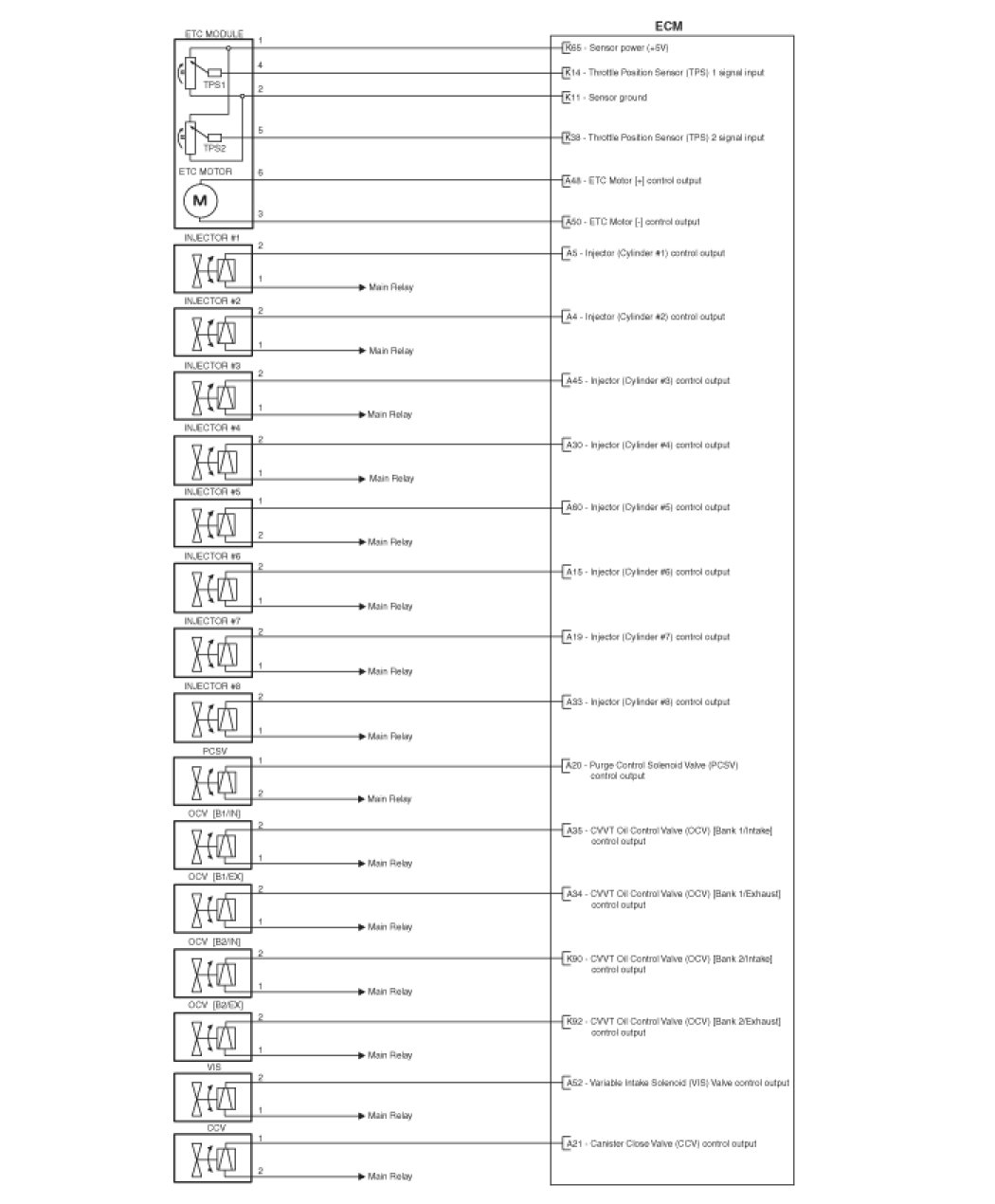

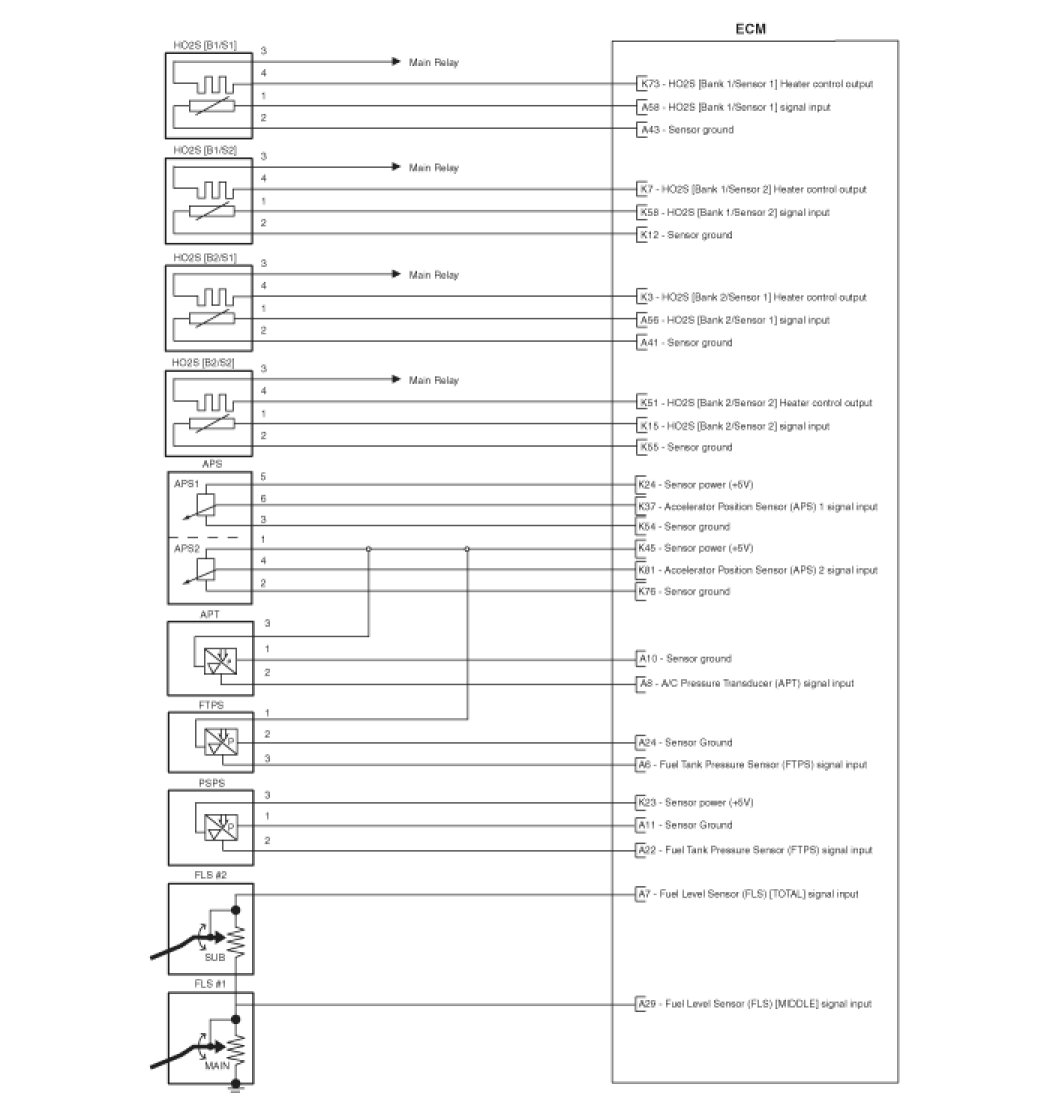

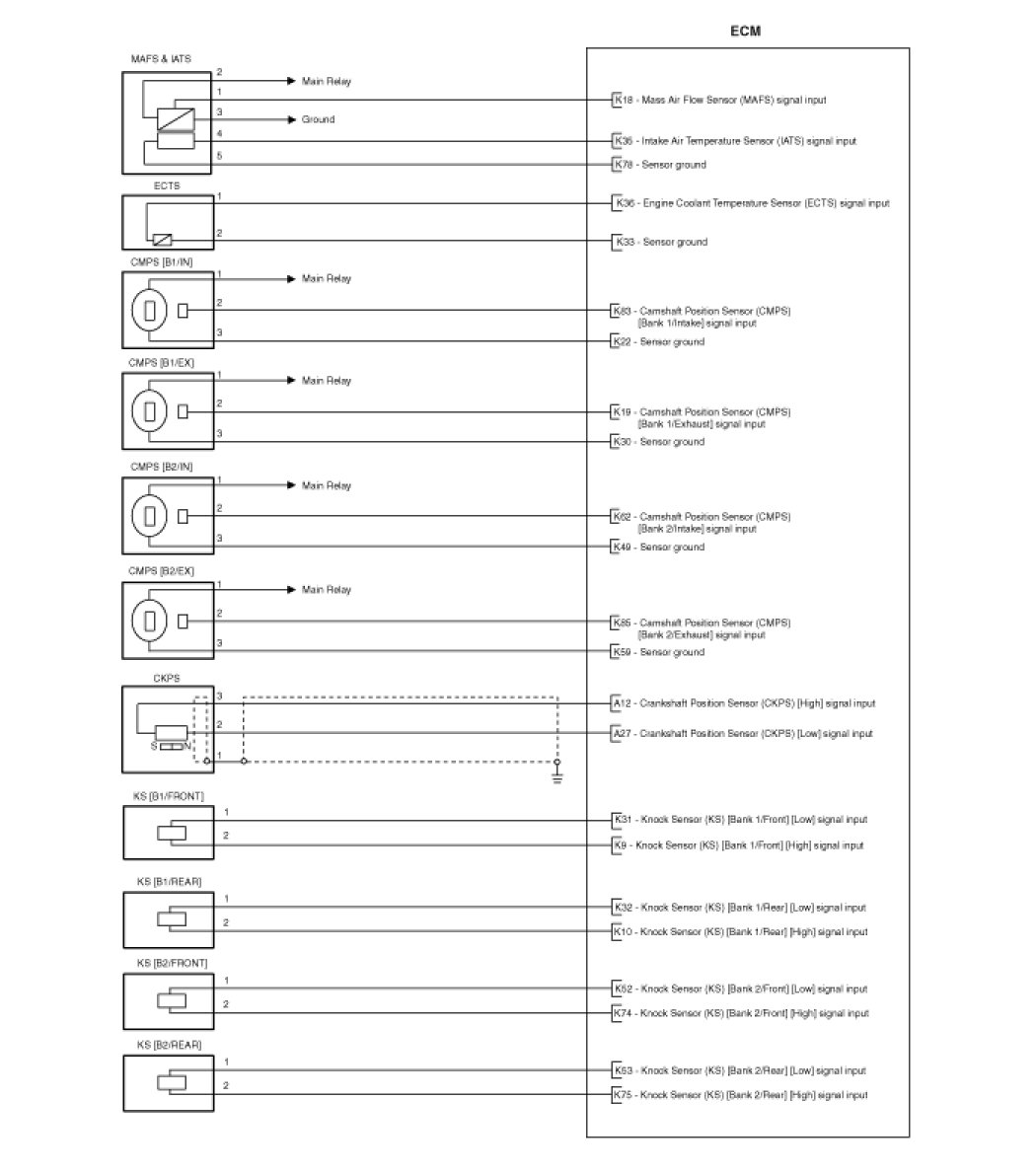

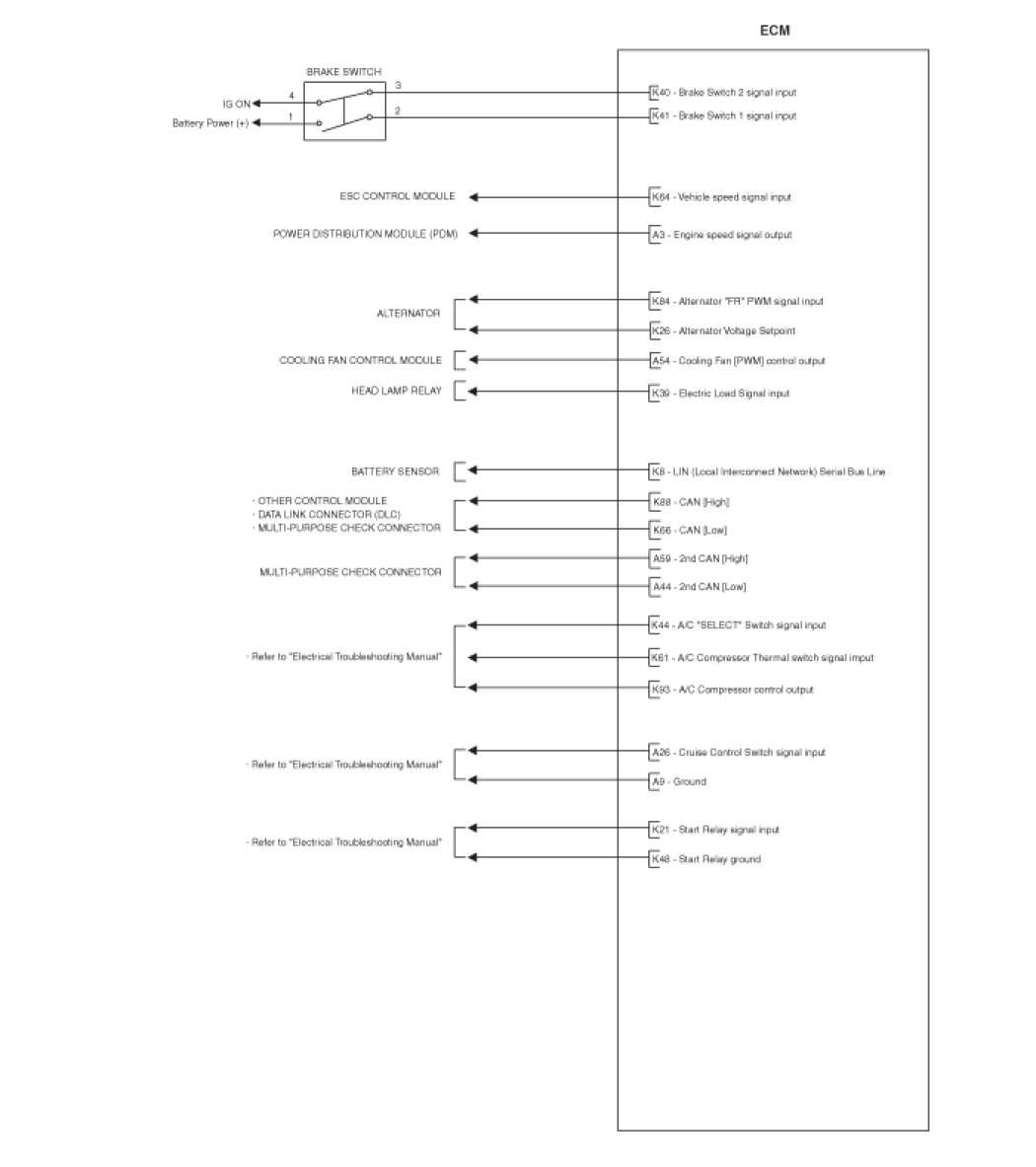

Circuit Diagram
