Cruise Control
>>
System Diagram
>>
Smart Cruise Control System
Smart Cruise Control System

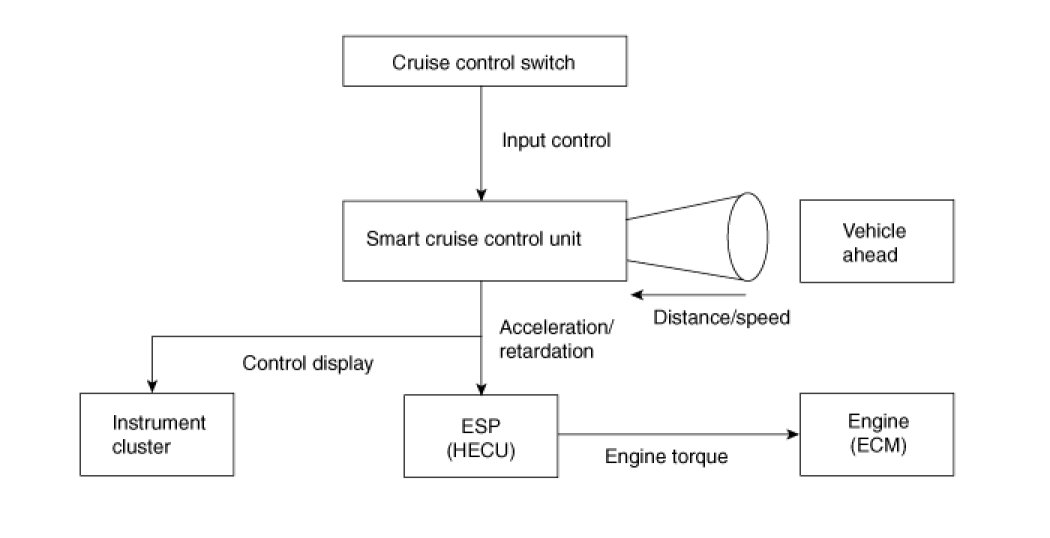

System Block Diagram

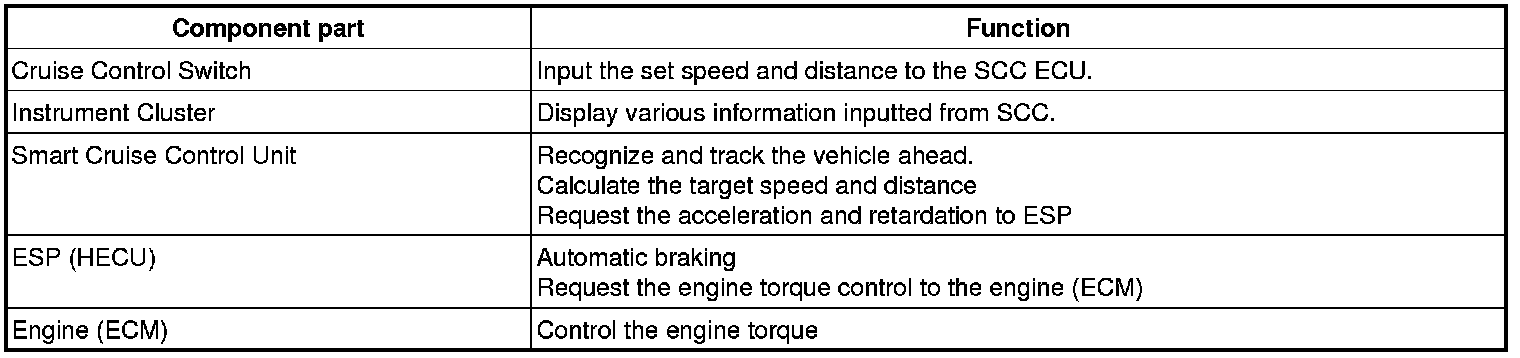

Component Parts And Function Outline
