Home >> Hyundai >> 2013 >> Genesis Sedan V8-4.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Shift Solenoid, A/T >> ON/OFF Solenoid Valve

ON/OFF Solenoid Valve

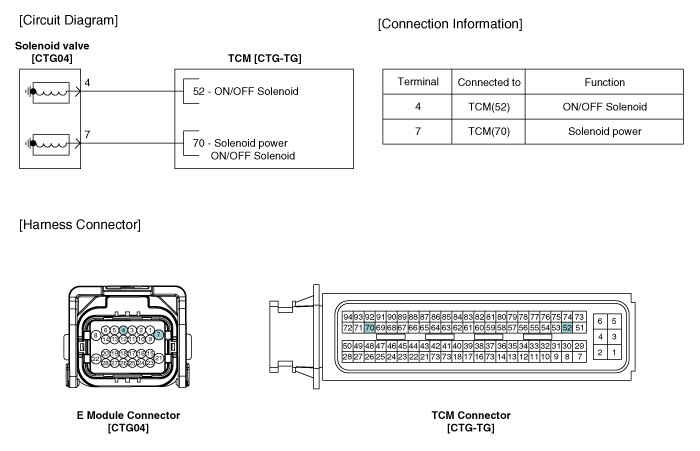

Circuit Diagram
