Control Module, A/T





1. TCM Connector and Terminal Function

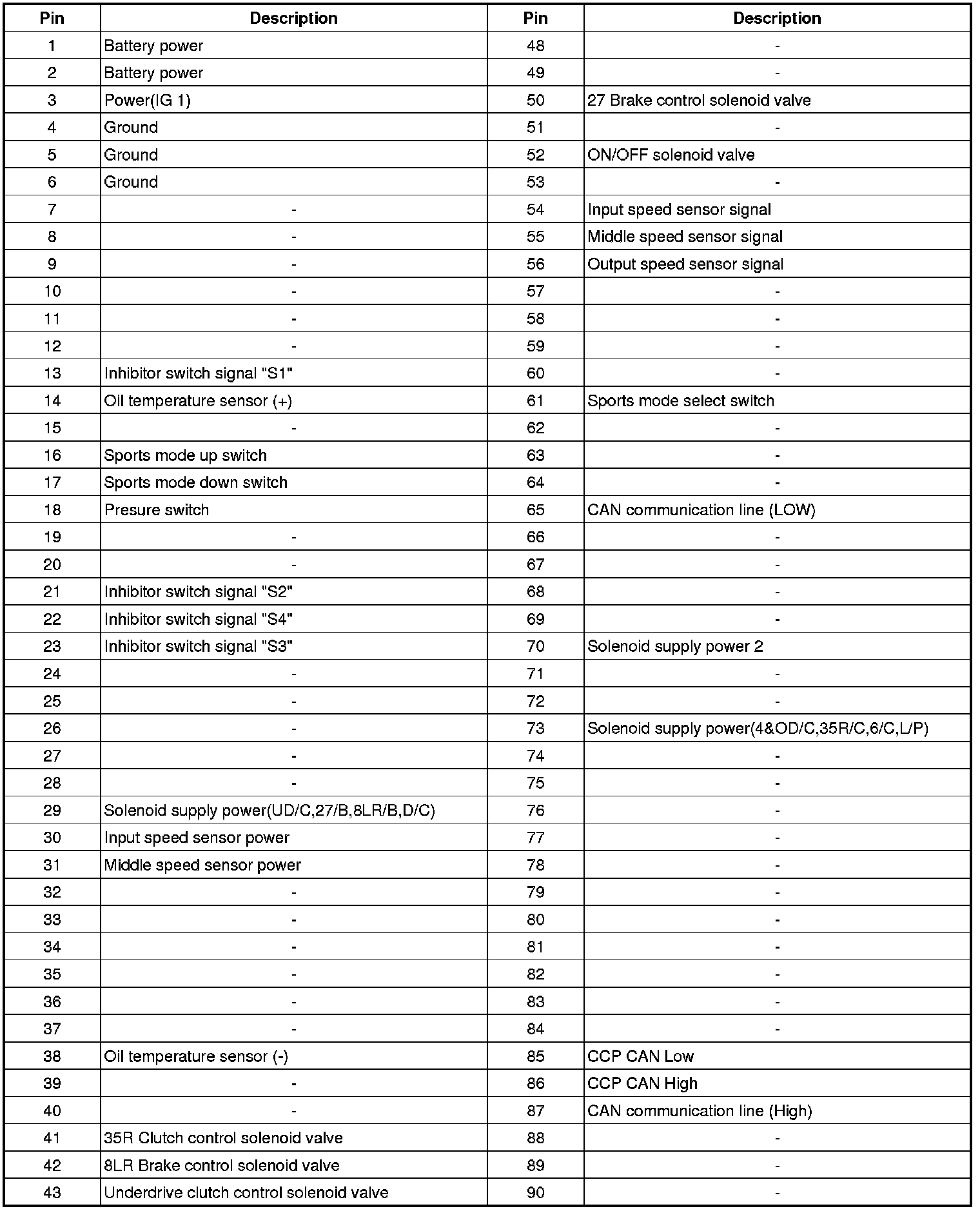

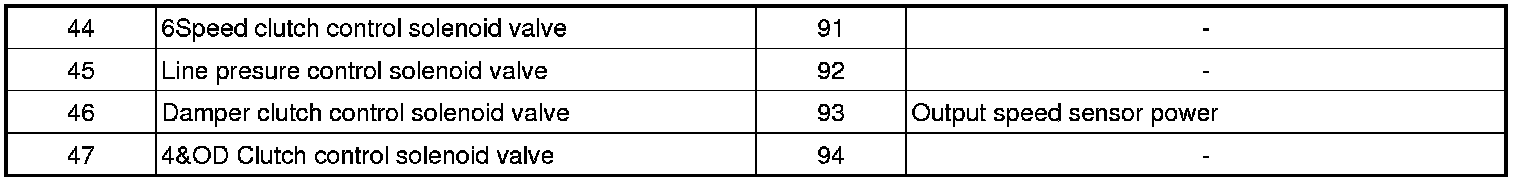

2. TCM Terminal Function

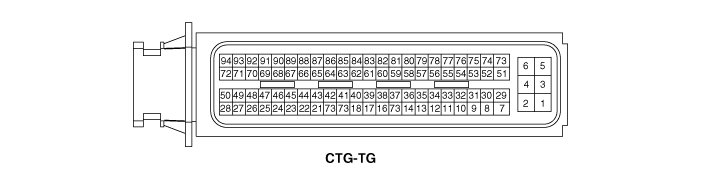

Connector [CTG-TG]

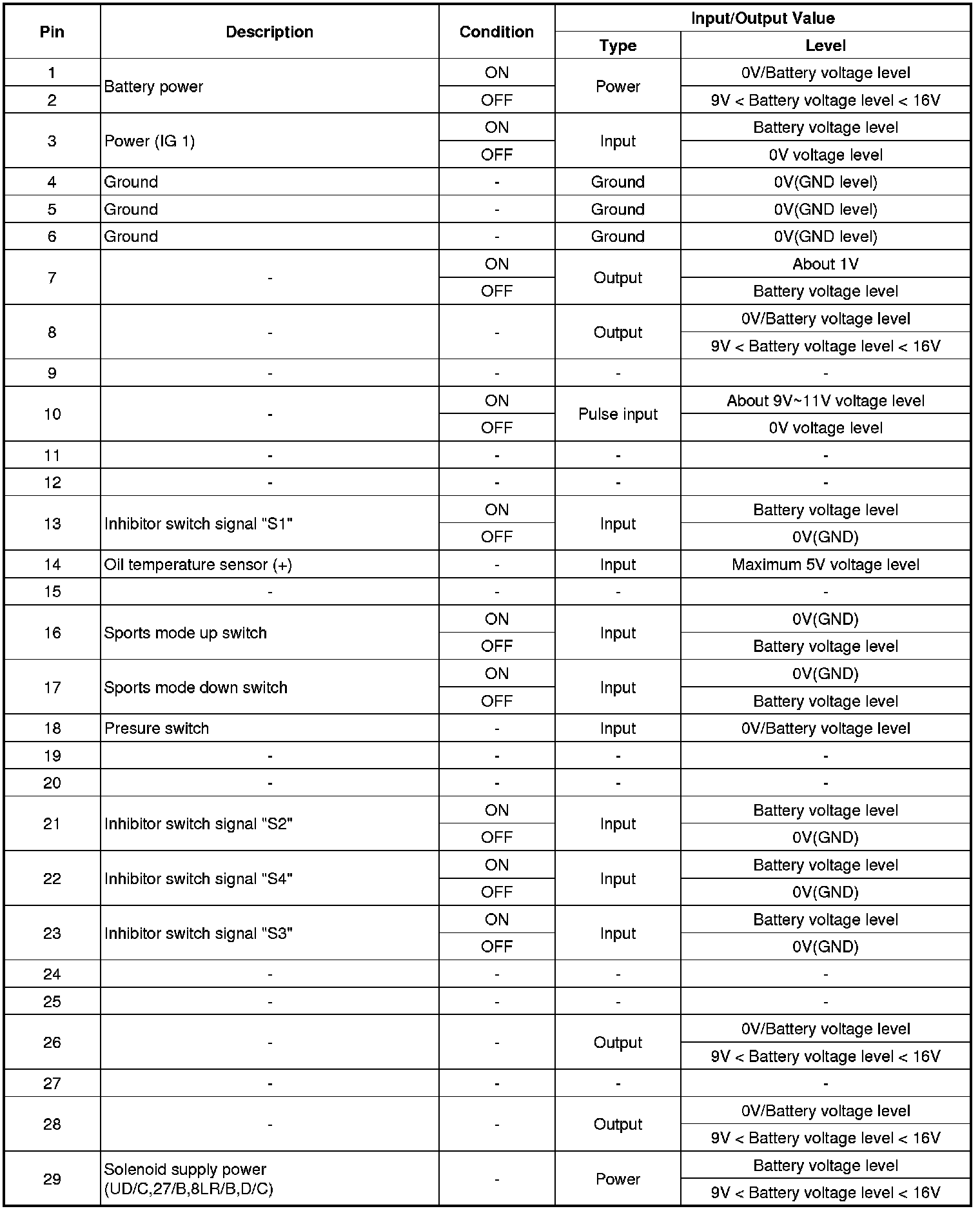

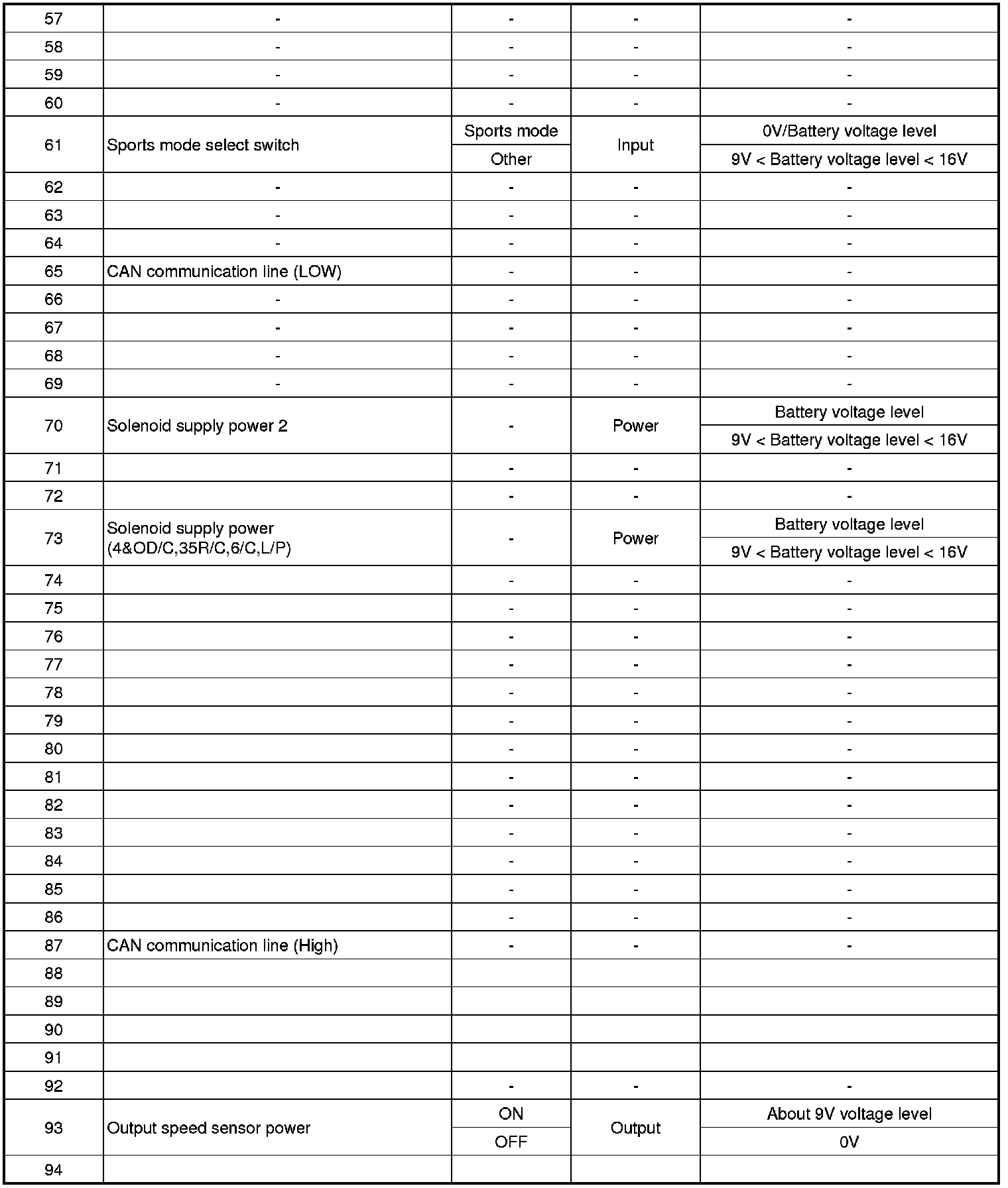

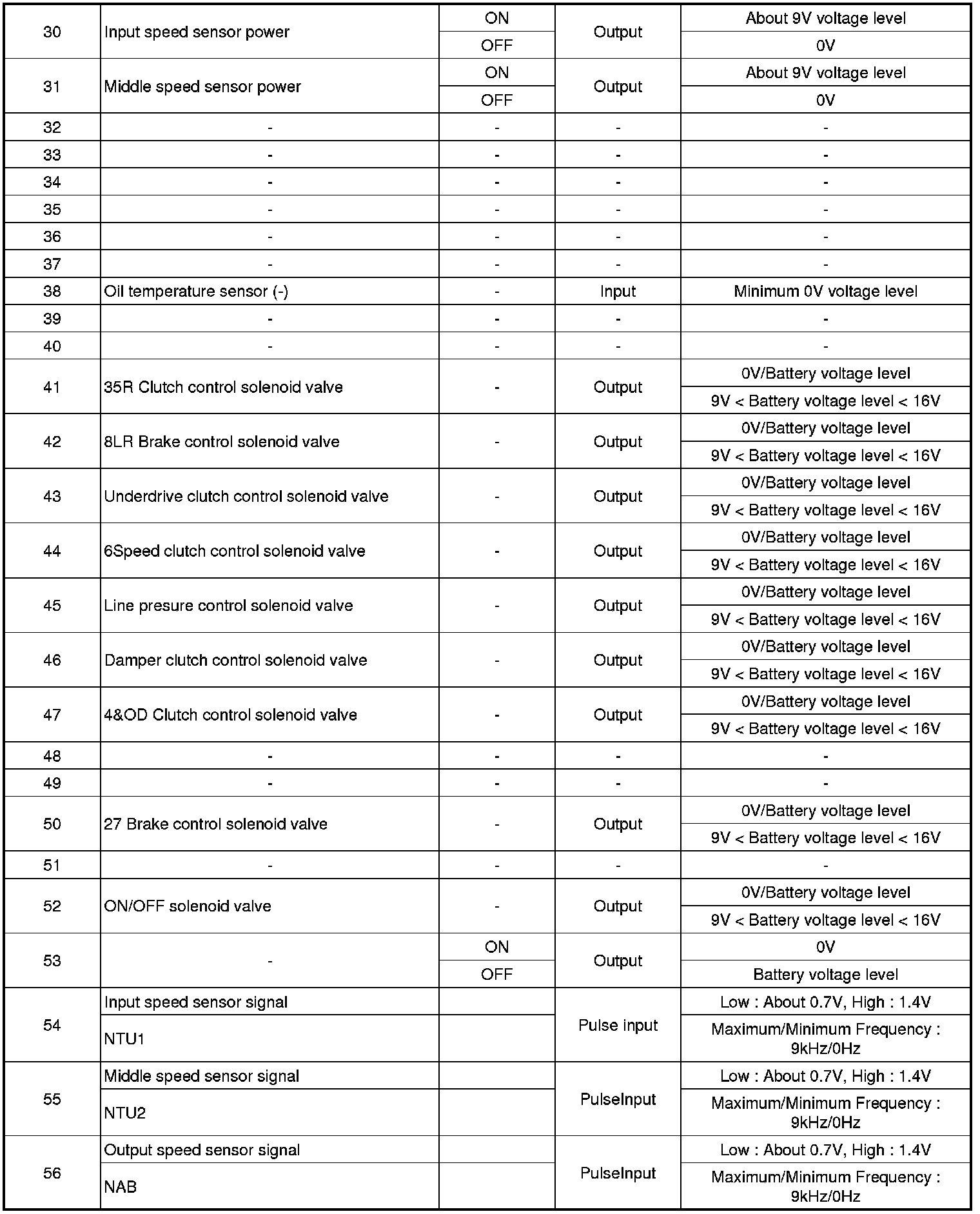

3. TCM Terminal input/output signal
