Power Door Lock Switch: Service and Repair

Inspection

Diagnosis With Scan Tool
1. It will be able to diagnose defects of DDM/ADM with scan tool quickly. Scan tool can operates actuator forcefully, input/output value monitoring and self diagnosis.

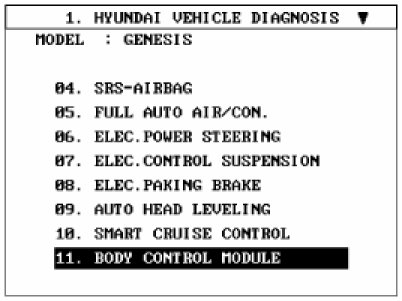

2. Select model and "Body control module".

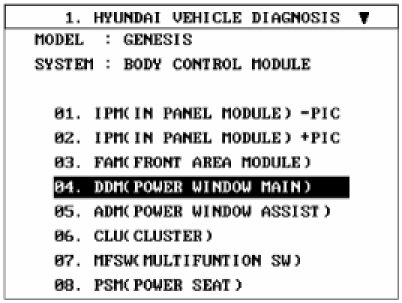

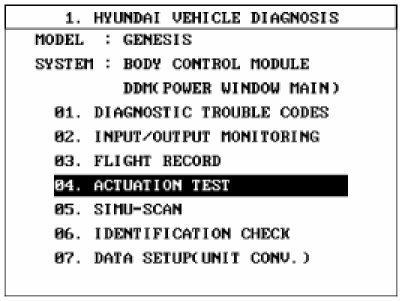

3. Select the "DDM (Power window main)" to check.

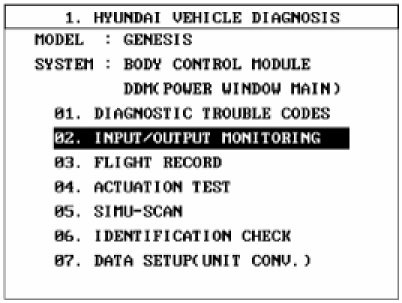

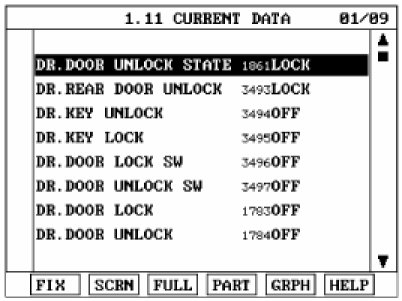

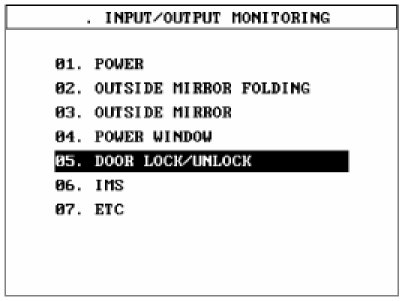

4. Select "Input/output monitoring", if you will check current data of power door lock system. It provides input/output status of DDM/ADM.

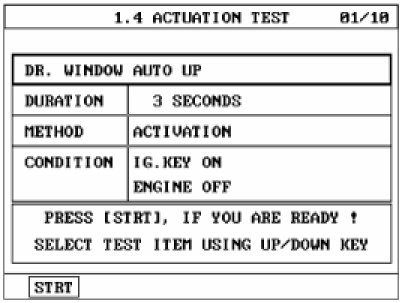

5. If you will check the power door lock operation forcefully, select "Actuation test".

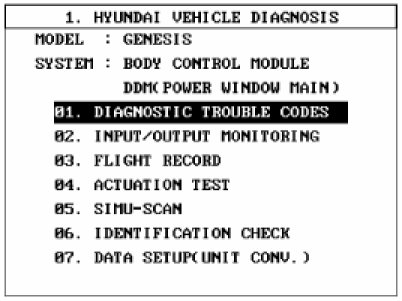

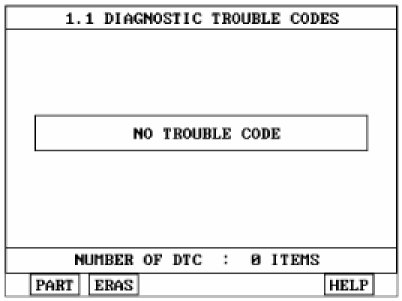

6. To check the DTC of the DDM/AMD module, select "Diagnostic trouble codes"










Removal

Driver Door Lock Switch
1. Disconnect the negative (-) battery terminal.

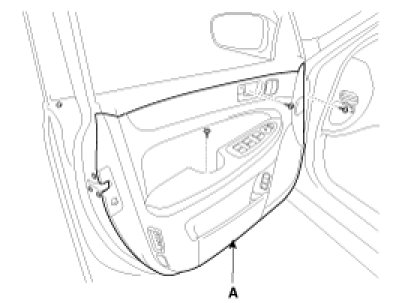

2. Remove the front door trim panel (A).

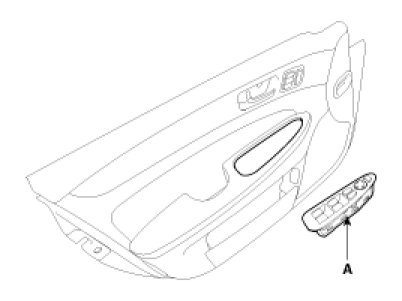

3. Remove the power door lock switch module (DDM) (A) from the front door trim panel after disconnecting module connector.
Be careful not to damage the door module removing the clip.





Rear Door Lock Switch
1. Disconnect the negative (-) battery terminal.

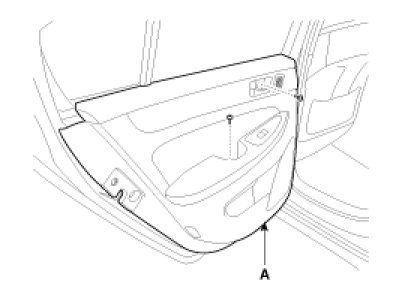

2. Remove the rear door trim panel (A).

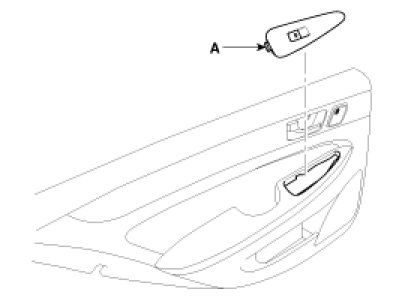

3. Remove the power door lock switch module (A) from the front door trim panel after disconnecting module connector.
Be careful not to damage the door module removing the clip.






Installation

Driver Door Lock Switch
1. Install the power door lock switch module on the front door trim panel.
2. Install the front door trim panel.
3. Connect the negative (-) battery terminal.

Rear Door Lock Switch
1. Install the power door lock switch module on the rear door trim panel.
2. Install the rear door trim panel.
3. Connect the negative (-) battery terminal.
