Repair Procedures

Replacement

Sunvisor Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.

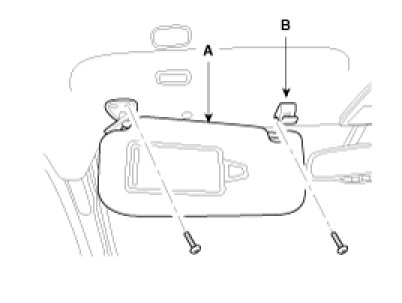

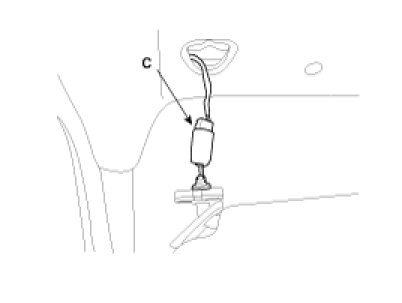

1. Remove the sunvisor (A) and retainer (B) from each side.




2. Disconnect the connector (C).




3. Installation is the reverse of removal.

Assist Handle Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.

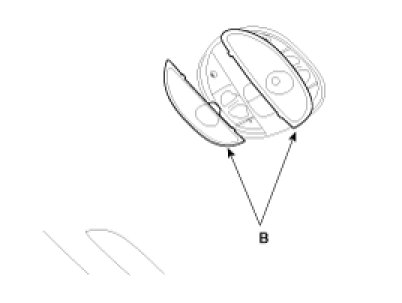

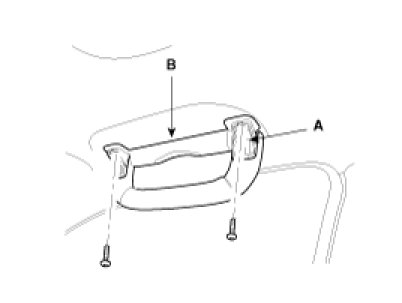

1. Remove the covers (B), and remove the screws, then remove the assist handle (A).




2. Installation is the reverse of removal.

Overhead Console Lamp Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.

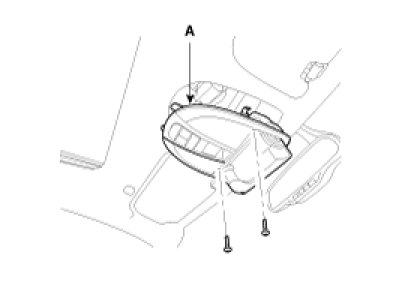

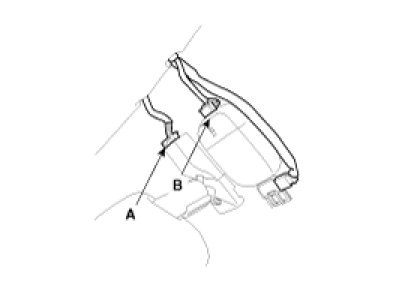

1. After loosening the mounting screws, remove the overhead console (A).

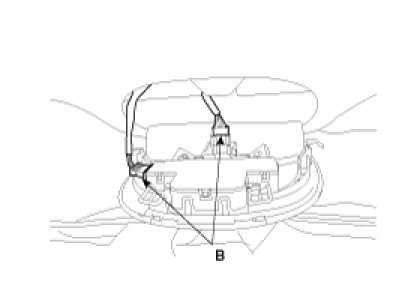

2. Disconnect the connector (B).




3. Installation is the reverse of removal.

Room Lamp Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.

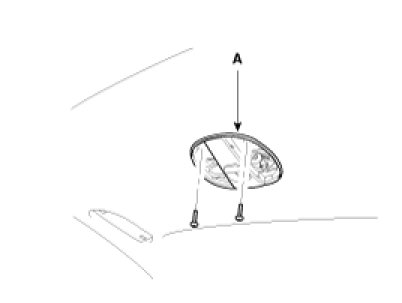

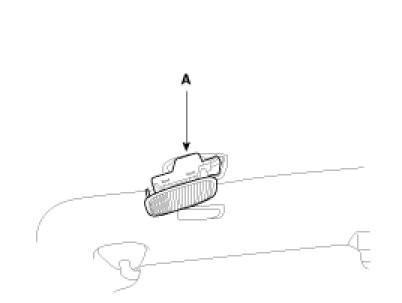

1. Remove the lens (A).




2. Remove the lamp (B).

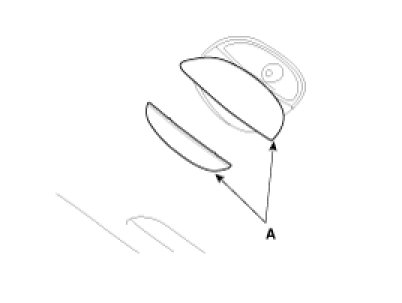

3. Pull out the room lamp (A).

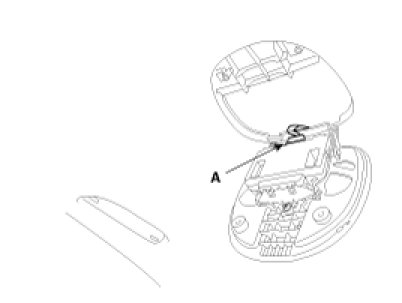

4. Disconnect the connector (A).




5. Installation is the reverse of removal.

Hands free mic and lamp replacement

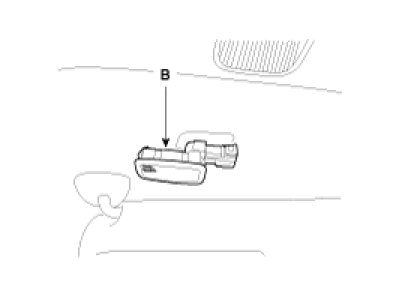

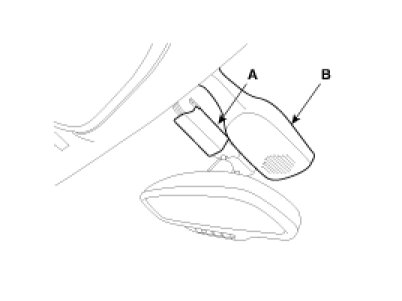

1. Remove the hands free mic (A) and lamp (B).








2. Installation is the reverse of removal.

Headliner Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the following items:
A. Front seat, rear seat assembly
B. Door scuff trim
C. Front pillar trim
D. Center pillar trim
E. Rear pillar trim
F. Overhead console
G. Room lamp
H. Sunvisor
I. Assist handle

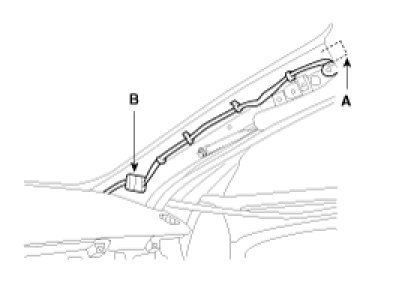

2. Remove the cover (A) and (B).




3. Disconnect the connector (A) and (B).




4. Disconnect the connector (A) and (B).

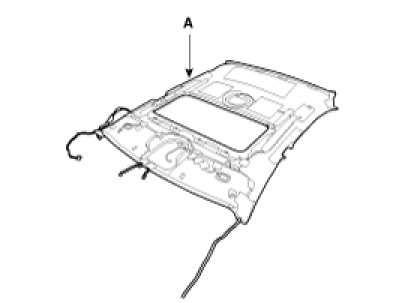

5. Remove the roof trim (A).




6. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.
