Repair Procedures

Removal

DIS Head Unit
1. Disconnect the negative (-) battery terminal.

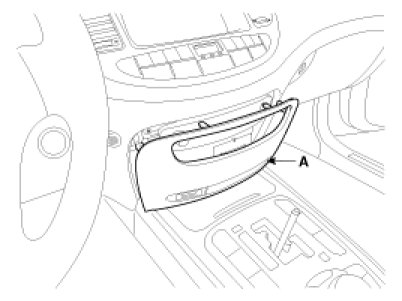

2. Remove the crash pad lower panel (A).

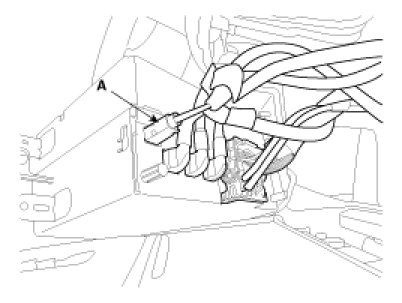

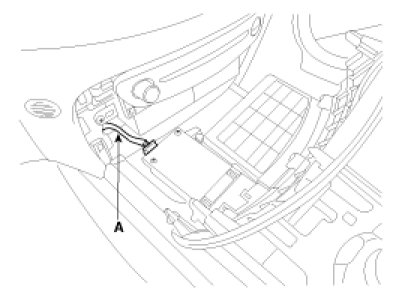

3. Remove the connector (A).

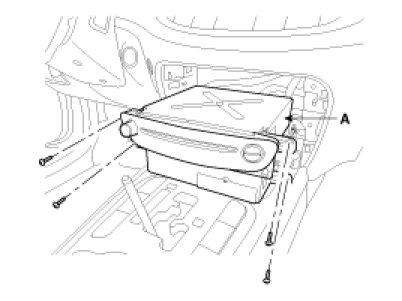

4. Remove the mounting screws and then remove the DIS head unit (A).




5. Remove the DIS head unit connectors (A).





CAUTION:
When the compact disc is not ejected, do not remove it forcibly.

6. When separate the CD/DVD ROM drive, if necessary, remove the screws (5EA) on the head unit.




7. Remove the connector (A).




8. Remove the CD/DVD ROM drive (A).





CAUTION:
When the HDD(hard disc drive) is not ejected, do not remove it forcibly.

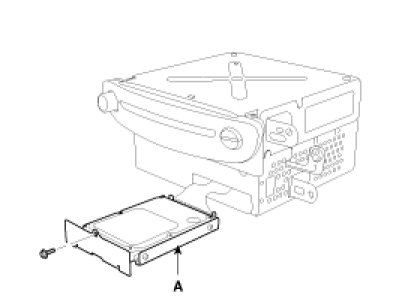

9. Replace the HDD (A) after removing the screw.






Installation

DIS Head Unit
1. Install the A/V & Navigation head unit after connecting the connectors.
2. Install the crash pad lower panel.
3. Connect the negative (-) battery terminal.

Variant coding when replace the DIS head unit

DIS head unit delivers the necessary expertise such as multi media, air conditioning, trip computer and drive information.
For these reasons, further information of vehicle have to be inputted to new DIS head unit when the DIS head unit is replaced.

NOTE:
Below description is only using the GDS.

Variant Coding
In case replacement the new head unit, should be variant coding at the engineering mode.

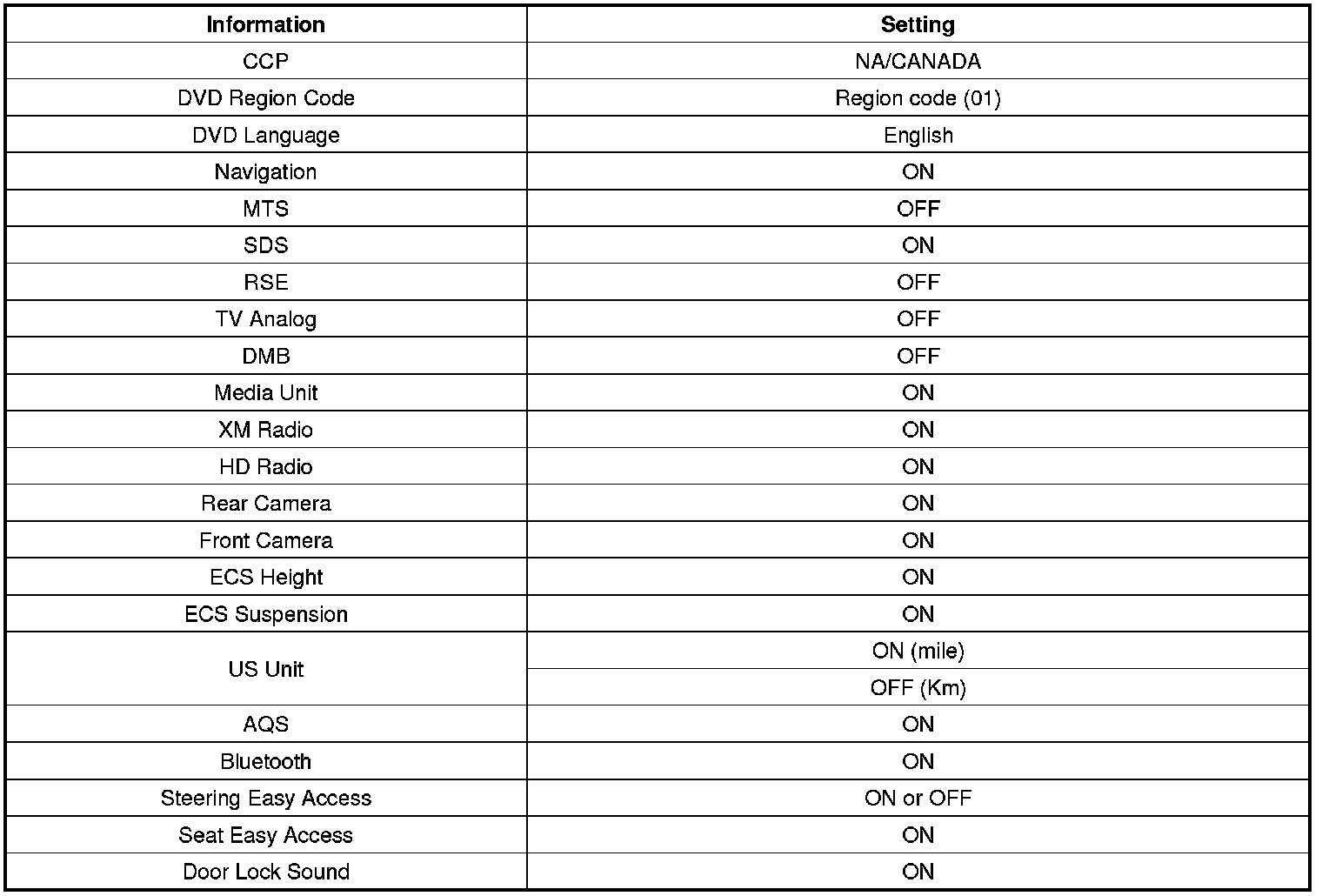

1. Check below information about hardware devices in system or vehicle with GDS.

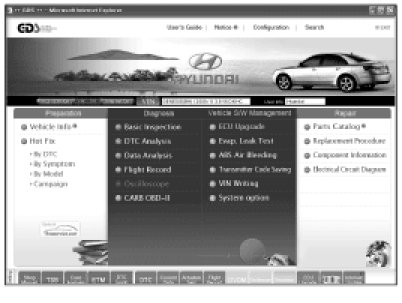

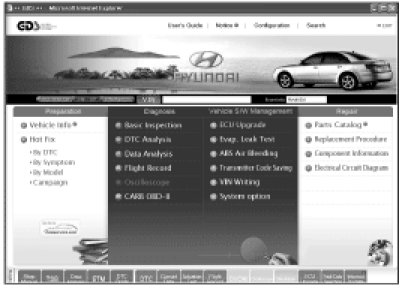

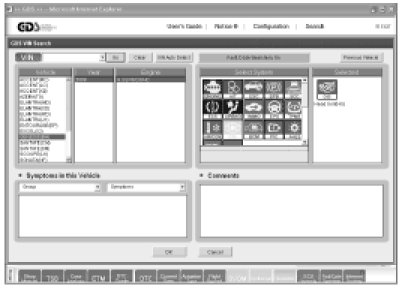

2. Select the "GDS VIN Search".




3. Select the "Vehicle / Year / Engine" and select item "DIS".

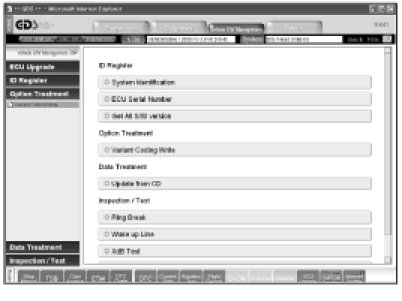

4. Select the "Variant coding write" then click the "OK".

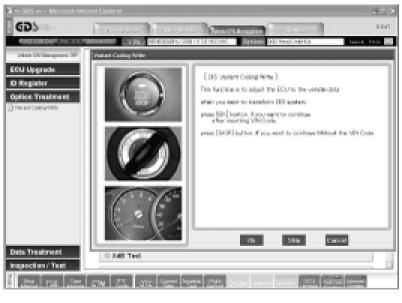

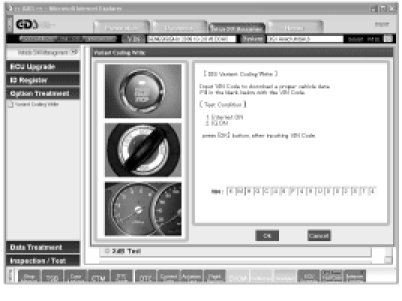

5. Input the VIN code and click the "OK".

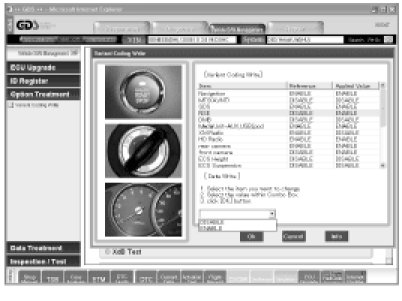

6. Select the item which you want to change. And change the value within combo box.

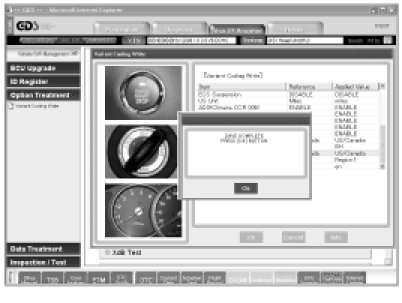

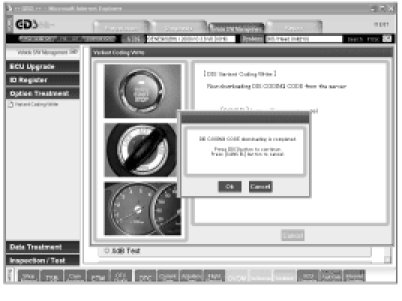

7. Click the "OK" then complete the variant coding write process.
