Repair Procedures

Removal

Audio Unit
1. Disconnect the negative (-) battery terminal.

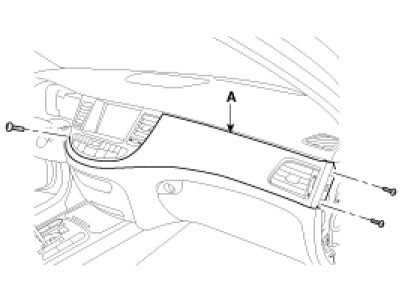

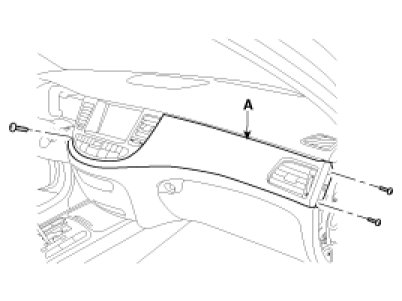

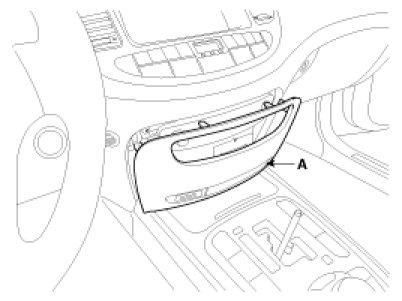

2. Remove the crash pad lower panel (A).




3. Remove the connector (A).

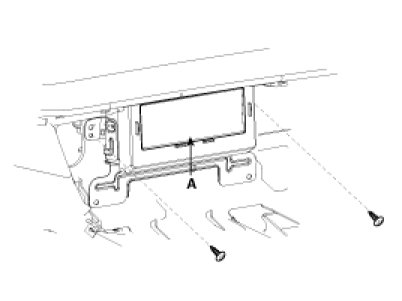

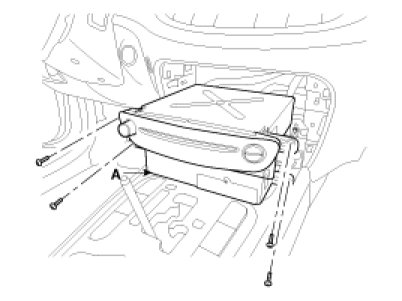

4. Remove the mounting screws and then remove the audio unit (A).

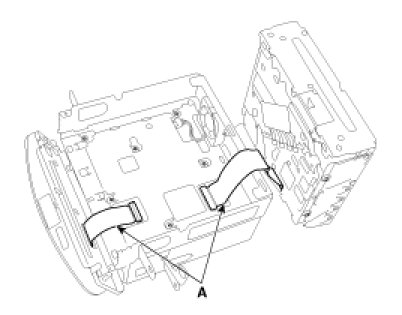

5. Remove the connector (A).





NOTE:
When the compact disc is not ejected, do not remove it forcibly

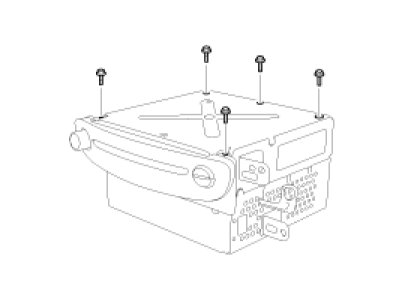

6. When separate the CD ROM drive, if necessary, remove the screws (5EA) on the head unit.

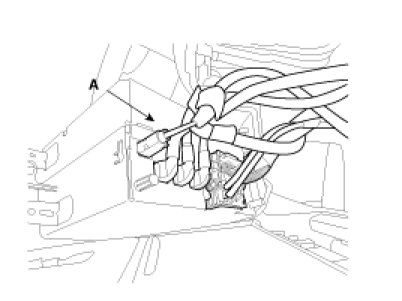

7. Remove the connector (A).

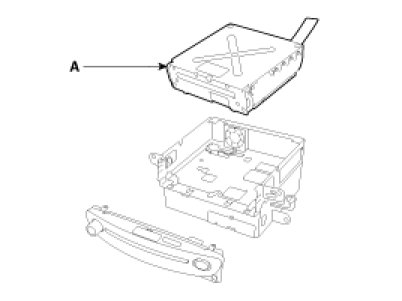

8. Remove the CD ROM drive (A).





Keyboard Unit
1. Disconnect the negative (-) battery terminal.
2. Remove the cluster fascia panel.

3. Remove the crash pad side garnish (A) after removing the screws.

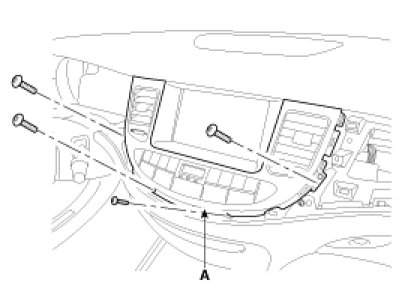

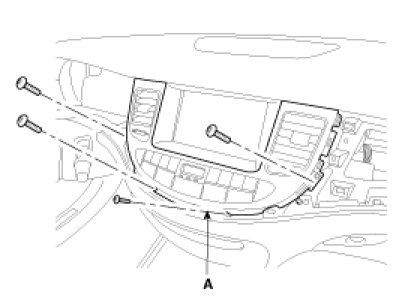

4. Remove the center fascia panel (A) after removing the screws.




5. Remove the connectors (A).




6. Remove the keyboard unit (A) after removing the screws.





Monitor Unit
1. Disconnect the negative (-) battery terminal.
2. Remove the cluster fascia panel.

3. Remove the crash pad side garnish (A) after removing the screws.




4. Remove the center fascia panel (A) after removing the screws.




5. Remove the connectors (A).




6. Remove the monitor unit (A) after removing the screws.






Installation

Audio Unit
1. Install the audio head unit after connecting the connectors.
2. Install the crash pad lower panel and connectors.
3. Connect the negative (-) battery terminal.

Keyboard Unit
1. Install the keyboard unit after connecting the connectors.
2. Install the center fascia panel.
3. Install the crash pad side garnish, cluster fascia panel and crash pad lower panel.

Monitor Unit
1. Install the monitor unit after connecting the connectors.
2. Install the center fascia panel.
3. Install the crash pad side garnish, cluster fascia panel and crash pad lower panel.
