Repair Procedures

Removal

Front LCD Monitor
1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad lower panel.
3. Remove the cluster fascia panel.

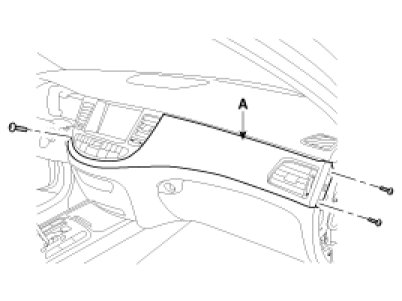

4. Remove the crash pad side garnish (A) after removing the screws.

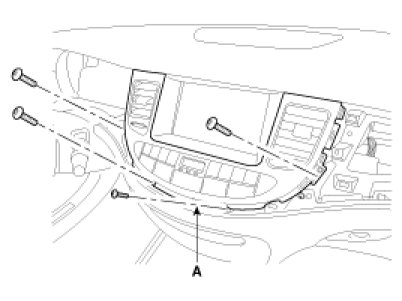

5. Remove the center fascia panel (A) after removing the screws.




6. Remove the LCD monitor unit after removing the screws.

Installation

Front LCD Monitor
1. Install the LCD monitor unit after connecting the connectors.
2. Install the center fascia panel.
3. Install the crash pad side garnish, cluster fascia panel and crash pad lower panel.
