Power Window Motor: Testing and Inspection

Inspection

Front Power Window Motor

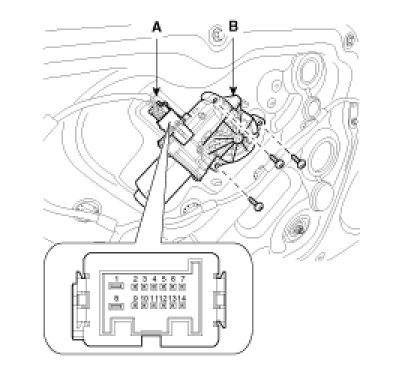

1. Remove the front door trim panel.

2. Disconnect the connector from the motor.




3. Connect the terminal No.4 directly to battery voltage (12V) and check that the motor operates smoothly. If the operation is abnormal, replace the motor.
