Procedures

Service Adjustment Procedure

Transmission Gear Oil Level

Inspection
1. Remove oil filler plug(A).

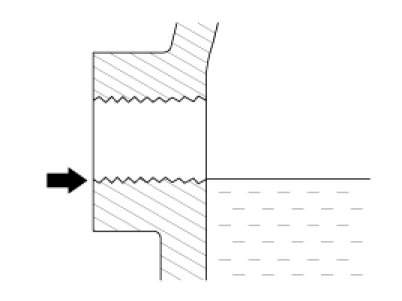

2. Check level with finger.
Oil level must be up to fill the hole, if not, add oil until it runs over.




3. Install filler plug with a new gasket.

Tightening torque :
60 - 80 Nm (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb-ft)

Replacement
1. With the vehicle parked on a level surface, remove the drain plug.

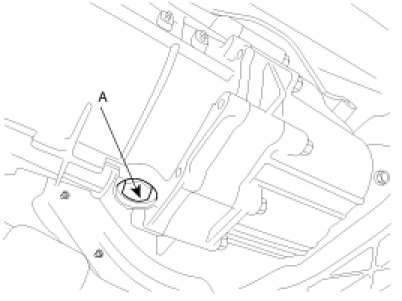

2. Drain the transmission oil after loosening the drain plug (A).




3. Install the drain plug with new gasket.

Tightening torque :
60 - 80 Nm (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb-ft)

4. Add new oil through the filler plug hole and, fill it just below the plug opening.

Standard oil :SAE 75W/85, API GL-4
Oil capacity :2.0l(2.1US qt, 1.76lmp qt)

Extension Housing Oil Seal

Replacement

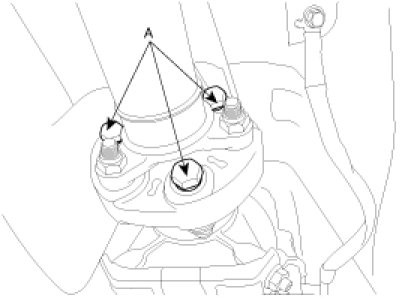

1. Remove the propeller shaft from the transmission by removing the bolts(A-3ea).




2. After releasing the caulking, remove the flange assembly by removing the locking nut(35mm) and O-ring.

CAUTION:
Do not reuse locking nut and O-ring.

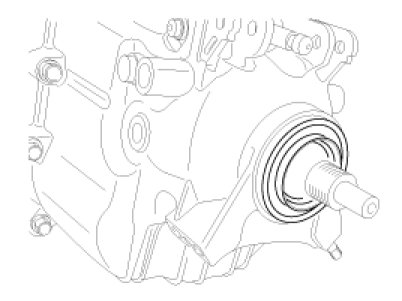

3. Remove the oil seal by using a screw driver.

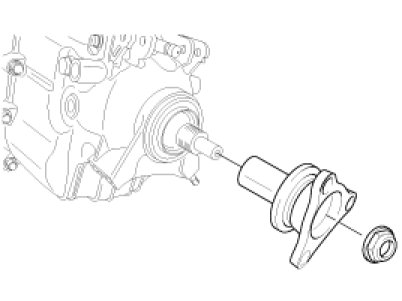

4. Replace the oil seal with a new one using the Special Service Tool(09452-25100).
5. Apply the lithium grease (0.2 - 0.5g) to lip of the oil seal.
6. Install the removed parts in reverse order of removal.
