Component Tests and General Diagnostics

Service Adjustment Procedure

Clutch Pedal Inspection And Adjustment

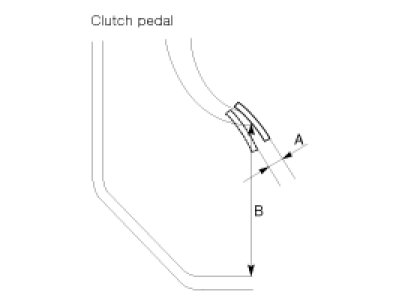

1. Measure the clutch pedal height (from the face of the pedal pad to the floorboard) and the clutch pedal clevis pin play (measured at the face of the pedal pad.)

Standard value
(A) : 6 - 13mm (0.24 - 0.51in)
(B) : 196.9mm (7.75in)
