Repair Procedures

Removal

1. Remove the transmission assembly. (refer to Manual transmission removal in MT group)

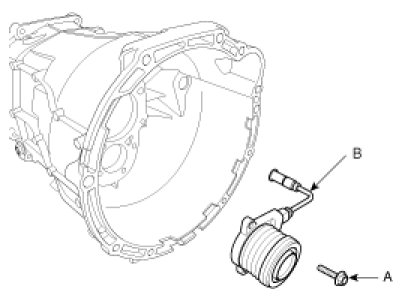

2. Remove the C.S.C assembly (B) from the transmission case by removing bolts (A-3ea).






Installation

1. Install the C.S.C assembly (B) to the transmission case by installing bolts (A-3ea).




2. Install the transmission assembly. (refer to Manual transmission installation in MT group)
3. Bleed the air in the C.S.C system. (refer to C.S.C Adjustment Procedure)

C.S.C Adjustment Procedure

C.S.C(Concentric Slave Cylinder) Air Bleeding

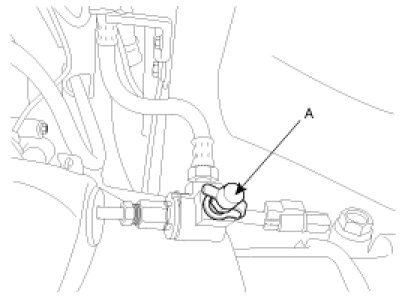

1. After disconnecting a cap from the concentric slave cylinder air bleeder, insert a vinyl hose in the plug.
2. Loosening the plug screw, press and release the clutch pedal about 10 times.

CAUTION:
Hold the air bleeder body not to rotate with a spanner.
The holding is needed when the plug loosened or tightened.

3. Tighten the plug during the clutch pedal pressed.
Afterwards, raise the pedal with a hand.

Tightening torque :
8 - 10 Nm (0.8 - 1.0 kgf.m, 2.8 - 7.2 lb-ft)

4. After pressing the clutch pedal 3 times more, loosen the plug and retighten it with the pedal pressed. Raise it again, then.
5. Repeat the step 4 two or three times. (until there is no bubble in the fluid)
