Repair Procedures

Removal

1. Disconnect (-) terminal from the battery in order to prevent current from flowing through wire.




2. Remove the shift lever knob by rotating counter clockwise.




3. Remove the indicator assembly.

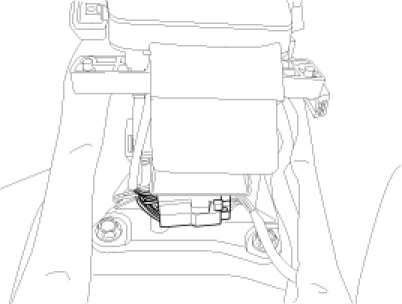

4. Disconnect the sports mode switch connector.




5. Remove the shift lever assembly by removing bolts(4ea).




6. Remove the shift link (A) by removing a nut.






Inspection

1. Check the shift lever assembly for proper operation and for damage.
2. Check the shift link for damage.
3. Check the boots for damage.

Adjustment

How To Adjust Shift Cable
1. Place the lever in 'N' position each of in-vehicle and of transmission.
2. Install the shift link (A) to the manual lever by inserting the snap pin.




3. Install the shift link (A) to the shift lever by installing a nut.




4. After adjusting according to procedure no. 3-4, check to be sure that this part operates surely at each range of T/M side corresponding to each position of room lever.

Installation

1. Install the shift lever assembly by installing bolts(4ea).

Tightening torque:
9 - 14 Nm (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)




2. Connect the sports mode switch connector.




3. Install the indicator assembly.




4. Install the shift lever knob by rotating clockwise.




5. Install the shift link (A) by installing a nut.




6. Connect (-) terminal to the battery.
