Repair Procedures

Removal

1. Disconnect (-) terminal from the battery in order to prevent current from flowing through wire.




2. Remove the ground wire (A) by removing a bolt.

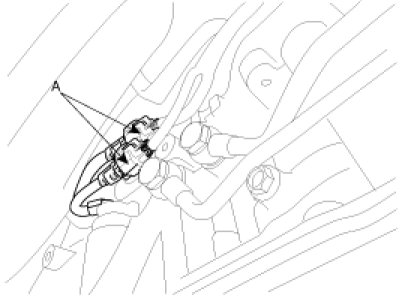

3. Disconnect the connectors (A).




4. Remove the CKP sensor (A) by removing a bolt.

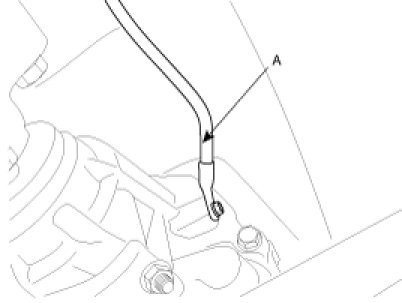

5. Remove the shift link (A) from the transmission by pulling out the snap pin.

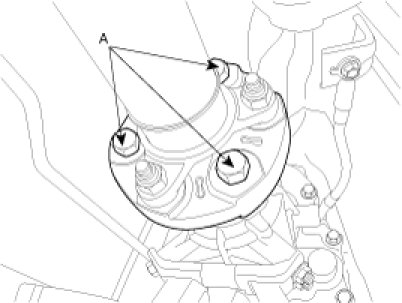

6. Remove the propeller shaft from the transmission by removing bolts (A-3ea).




7. Remove the oil cooler tube assembly (A) by removing bolts(2ea).




8. Remove the under shield cover (A).




9. After supporting the transmission assembly with a jack, remove the crossmember from the vehicle by removing bolts(4ea).




10. Remove the torque converter mounting bolts(6ea) by rotating the crankshaft.
11. Remove the mounting bolts (A-4ea) lower in the engine side.




12. Remove the mounting bolts(2ea) both sides in the engine side.
13. Remove the starter motor mounting bolts (A-2ea).




14. Remove the mounting bolts (A-2ea) on the transmission.




15. Remove the transmission assembly from the engine assembly and lower the jack.

CAUTION:
Be careful not to damage tubes, hoses or wire.

NOTE:
In case remove the transmission mounting bracket assembly from the transmission assembly.

Tightening torque:
50 - 65 Nm (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Installation

1. Temporarily install the transmission assembly by lifting the supporting jack.

CAUTION:
Be careful not to damage tubes, hoses or wire.

2. Install the mounting bolts (A-2ea) on the transmission.

Tightening torque:
43 - 55 Nm (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)




3. Install the starter motor mounting bolts (A-2ea).

Tightening torque:
43 - 55 Nm (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)




4. Install the mounting bolts(2ea) both sides in the engine side.

Tightening torque:
35 - 47 Nm (3.5 - 4.7 kgf.m, 25.3 - 34.0 lb-ft)

5. Install the mounting bolts (A-4ea) lower in the engine side.

Tightening torque:
43 - 49 Nm (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb-ft)




6. Install the torque converter mounting bolts(6ea) by rotating the crankshaft.

Tightening torque:
46 - 53 Nm (4.6 - 5.3 kgf.m, 33.3 - 38.3 lb-ft)

7. Install the crossmember from the vehicle by installing bolts(4ea) and put aside the supporting jack.

Tightening torque:
50 - 65 Nm (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)




8. Install the under shield cover (A).




9. Install the oil cooler tube assembly (A) by installing bolts(2ea).




10. Install the propeller shaft to the transmission by installing bolts (A-3ea).

Tightening torque:
90 - 110 Nm (9 - 11 kgf.m, 65.0 - 79.5 lb-ft)




11. Install the shift link (A) to the transmission by inserting the snap pin.




12. Install the CKP sensor (A) by installing a bolt.




13. Connect the connectors (A).




14. Install the ground wire (A) by installing a bolt.




15. Connect (-) terminal to the battery.




16. Check the level of oil fluid. (refer to Procedure of ATF level adjusting)
