Rear Stabilizer Bar

Replacement

1. Remove the rear wheel & tire.

Tightening torque :
90 - 110 N.m(9.0 - 11.0 kgf.m, 65 - 80 lb-ft)

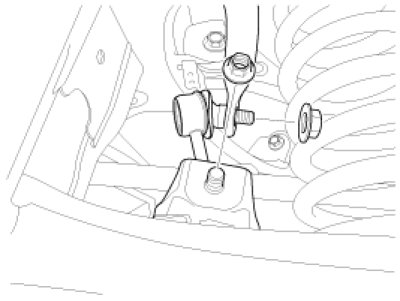

2. Loosen the nuts and then remove the stabilizer link from stabilizer bar and lower arm.

Tightening torque :
100 - 120 N.m(10.0 - 12.0 kgf.m, 72 - 87 lb-ft)




3. Loosen the mounting bolts.

Tightening torque :
50 - 65 N.m(5.0 - 6.5 kgf.m, 36 - 47 lb-ft)




4. Installation is the reverse of removal.

Inspection

1. Check the bushing for wear deterioration.
2. Check the all bolts.
3. Check the stabilizer bar for deformation.
4. Check the stabilizer link ball joint for damage.
