Front Stabilizer Bar

Replacement

1. Remove the front wheel & tire.

Tightening torque :
90 - 110 N.m(9.0 - 11.0 kgf.m, 65 - 80 lb-ft)

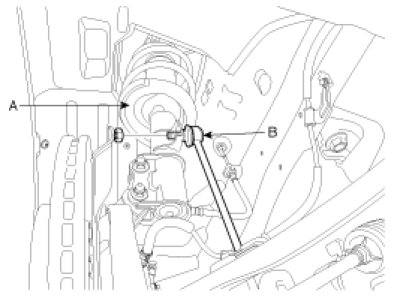

2. Disconnect the stabilizer link(B) with the front strut assembly(A) after loosening the nut.

Tightening torque :
100 - 120 N.m(10.0 - 12.0 kgf.m, 72 - 87 lb-ft)




3. Remove stabilizer from the cross member by loosening the clamp mounting bolts.




4. Installation is the reverse of removal.

Inspection

1. Check the bushing for wear and deterioration.
2. Check the front stabilizer bar for deformation.
3. Check the front stabilizer link ball joint for damage.
