Rear Upper Arm

Replacement

Front Upper Arm
1. Remove the rear wheel & tire.

Tightening torque :
90 - 110 N.m(9.0 - 11.0 kgf.m, 65 - 80 lb-ft)

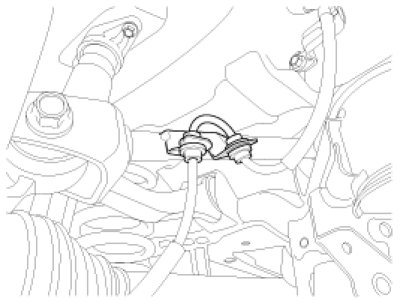

2. Remove the brake hose bracket.

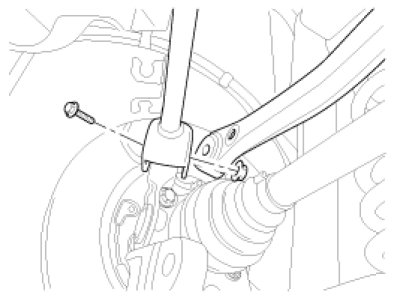

3. Loosen the bolts and nuts and then remove the front upper arm from rear axle.

Tightening torque :
100 - 120 N.m(10.0 - 12.0 kgf.m, 72 - 87 lb-ft)

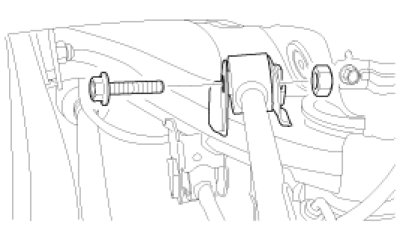

4. Loosen the bolts and nuts and then remove the front upper arm from sub frame.

Tightening torque :
100 - 120 N.m(10.0 - 12.0 kgf.m, 72 - 87 lb-ft)




5. Installation is the reverse of removal.

Rear Upper Arm
1. Remove the rear wheel & tire.

Tightening torque :
90 - 110 N.m(9.0 - 11.0 kgf.m, 65 - 80 lb-ft)

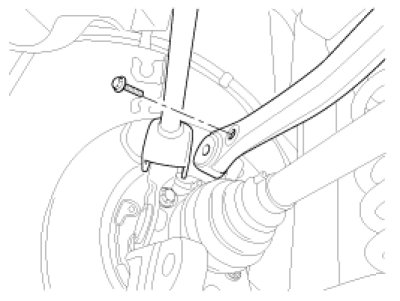

2. Loosen the bolts and nuts and then remove the rear upper arm from rear axle.

Tightening torque :
140 - 160 N.m(14.0 - 16.0 kgf.m, 101 - 116 lb-ft)

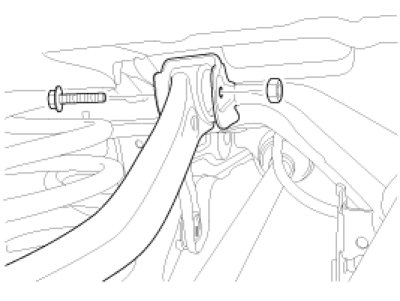

3. Loosen the bolts and nuts and then remove the rear upper arm from sub frame.

Tightening torque :
100 - 120 N.m(10.0 - 12.0 kgf.m, 72 - 87 lb-ft)




4. Installation is the reverse of removal.
