Rear Lower Arm

Replacement

1. Remove the rear wheel & tire.

Tightening torque :
90 - 110 N.m(9.0 - 11.0 kgf.m, 65 - 80 lb-ft)

2. Remove the rear shock absorber.

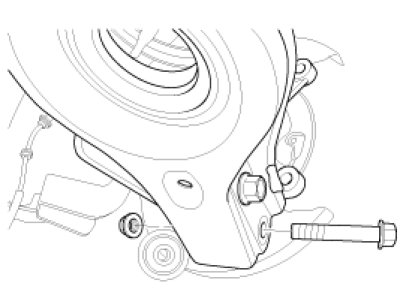

3. Loosen the bolts and nuts and then remove the lower arm from rear axle.

Tightening torque :
140 - 160 N.m(14.0 - 16.0 kgf.m, 101 - 116 lb-ft)

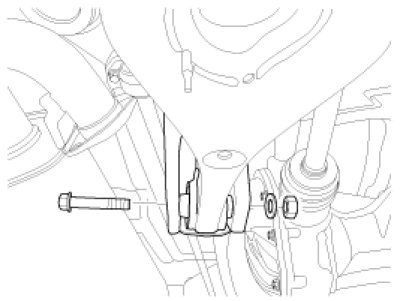

4. Loosen the bolts and nuts and then remove the lower arm from sub frame.

Tightening torque :
140 - 160 N.m(14.0 - 16.0 kgf.m, 101 - 116 lb-ft)




5. Installation is the reverse of removal.
6. Check the alignment.


Inspection

1. Check the bushing for wear and deterioration.
2. Check the rear lower arm deformation.
3. Check the all bolts.
4. Check the coil spring pad for deterioration and deformation.
