Rear Assist Arm

Replacement

1. Remove the rear wheel & tire.

Tightening torque :
90 - 110 N.m(9.0 - 11.0 kgf.m, 65 - 80 lb-ft)

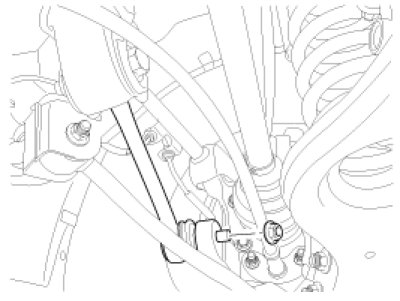

2. Loosen the nuts.

Tightening torque :
100 - 120 N.m(10.0 - 12.0 kgf.m, 72 - 87 lb-ft)

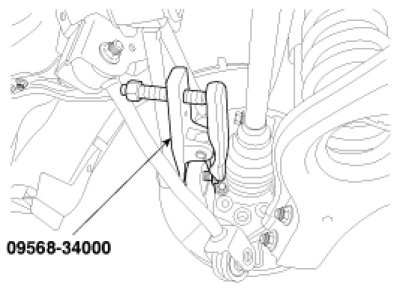

3. Separate the assist arm from the rear axle ball joint by using SST (09568-34000).

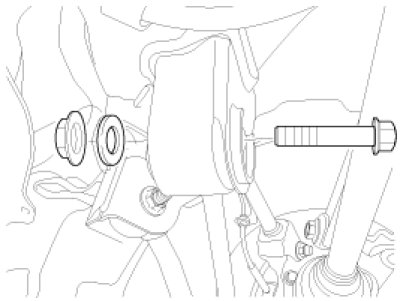

4. Loosen the bolts and nuts and then remove the assist arm from sub frame.

Tightening torque :
140 - 160 N.m(14.0 - 16.0 kgf.m, 101 - 116 lb-ft)




5. Installation is the reverse of removal.
6. Check the alignment.
