Pressure Plate

Pressure Plate

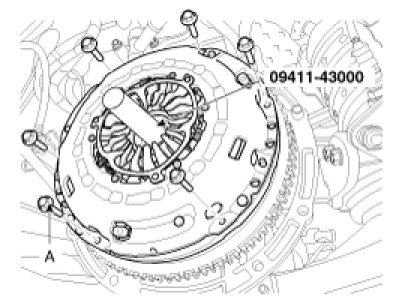

Install the clutch cover assembly to the flywheel and temporarily tighten the bolts one or two steps at a time in a star pattern.

Tightening torque :
Clutch disc cover bolt 25 - 36 N.m (2.5 - 3.6 kgf.m, 18.1 - 26.0 lb-ft)
