Repair Procedures

Inspection

Lighting Switch Inspection
With the multi function switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multi-function switch.





Lighting Switch (Auto Light)





Lighting Switch

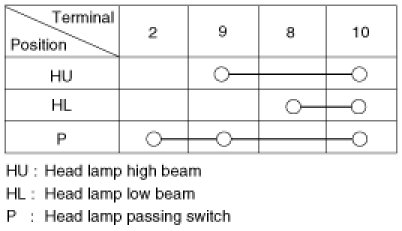

Dimmer And Passing Switch





Turn Signal Switch





Front Fog Lamp Switch





Wiper And Washer Switch Inspection
With the multi function switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multi-function switch.





Wiper Switch





Washer Switch






Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the steering wheel.

3. Remove the steering column upper and lower shrouds after removing 3 screws.

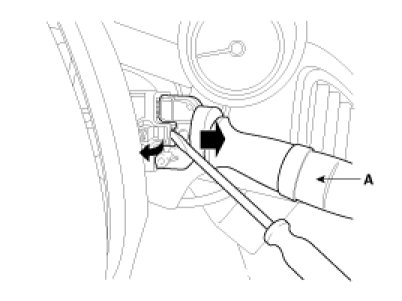

4. If necessary of removing the wiper & washer switch, release the lock of wiper switch using tool without removing the steering wheel.




5. Remove the clock spring(A).

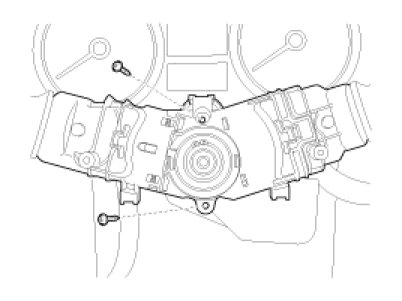

6. Loosen the screws from the multifunction switch assembly.




7. Remove the multifunction switch assembly(A) after loosening the connectors.






Installation

1. Install the multifunction switch.
2. Install the clock spring.
3. Install the steering column upper and lower shrouds.
4. Install the steering wheel.

NOTE:
Make sure the multifunction switch connectors are plugged in properly.
