Repair Procedures

Removal

1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
2. Remove the lower anchor bolt.
3. Remove the following parts.

A. Rear seat assembly, Door scuff trim
B. Luggage side trim, Center upper trim
4. Remove the upper anchor bolt.
5. Loosen the Seat Belt Pretensioner mounting bolt and remove the Seat Belt Pretensioner.

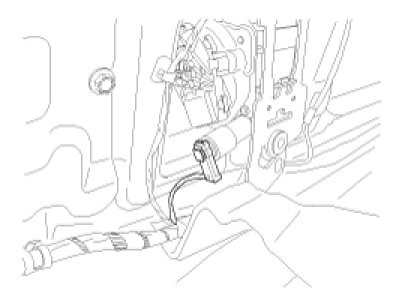

6. Disconnect the Seat Belt Pretensioner connector.






Installation

1. Remove the ignition key from the vehicle.
2. Disconnect the battery negative cable and wait for at least three minutes.
3. Connect the Seat Belt Pretensioner (BPT) connector.
4. Install the Seat Belt Pretensioner (BPT) with a bolt.

Tightening torque
Bolt B : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)




5. Install the upper anchor bolts.

Tightening torque
: 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

6. Install the following parts.

A. Center upper trim, luggage side trim
B. Door scuff trim, Rear seat assembly
7. Install the lower anchor bolts.

Tightening torque
: 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

8. Reconnect the battery negative cable.
9. After installing the Seat Belt Pretensioner (BPT), confirm proper system operation:
A. Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.28
