Fuel Filler Neck: Service and Repair

Removal

1. Disconnect the fuel filler hose (A) and the leveling hose (B).

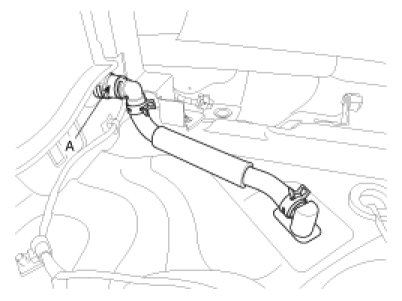

2. Disconnect the vapor hose quick-connector (A) after removing the trunk luggage trim.




3. Remove the rear-LH wheel, tire, and the inner wheel house.

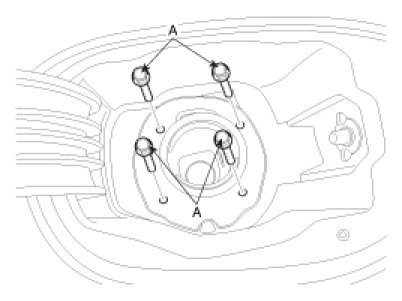

4. Remove the filler-neck installation bolts (A).




5. Remove the filler-neck assembly from the vehicle after removing the vapor hose mounting bolts (A) and the bracket mounting bolts (B).






Installation

1. Installation is reverse of removal.

Filler-neck assembly installation bolt :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
Filler-neck assembly installation nut :
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
