Fog/Driving Lamp: Service and Repair

Inspection

1. Disconnect the negative(-) battery terminal.
2. Remove the lighting switch of the multi-function switch.

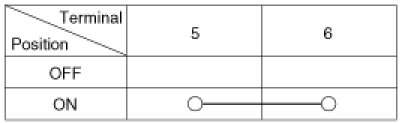

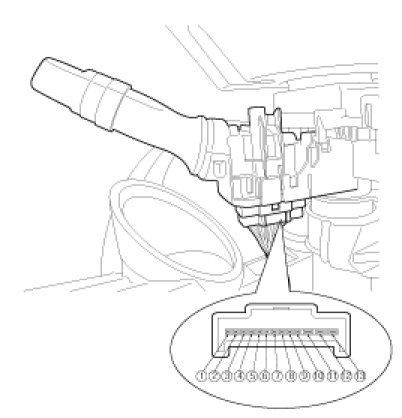

3. With the front fog lamp switch, make sure that continuity exists between the terminals below.
If continuity is not as specified, replace the multi-function switch.





Front Fog Lamp





Front Fog Lamp Relay
1. Disconnect the negative(-) battery terminal.

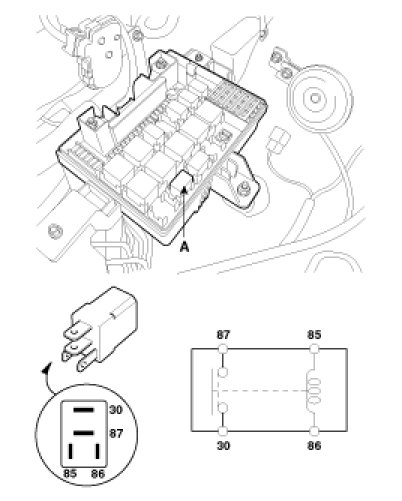

2. Pull out the front fog lamp relay(A) from the engine compartment relay box.

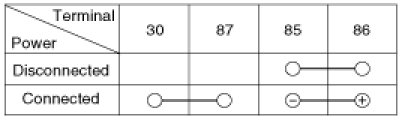

3. Check for continuity between terminals. There should be continuity between the No.87 and No.30 terminals when power and ground are connected to the No.85 and No.86 terminals.
4. There should be no continuity between the No.87 and No.30 terminals when power is disconnected.










Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper.

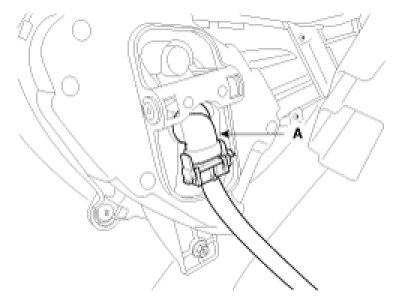

3. Disconnect the front fog lamp connector(A).




4. Replace the front fog bulb turning it in the counter clock-wise direction.






Installation

1. Install the front fog bulb.
2. Reconnect the lamp connector.
3. Install the front bumper.
