Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the crush pad.

3. Remove the cowl cross bar assembly.

4. Remove the heater & blower unit.

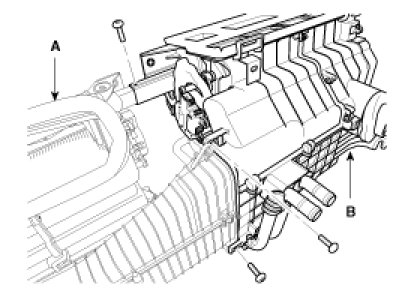

5. Remove the blower unit from the heater unit (B) after loosening a mounting bolt and 2 screws.





NOTE:
Make sure that there is no air leaking out of the blower and duct joints.

6. Installation is the reverse order of removal.
