Repair Procedures

Removal

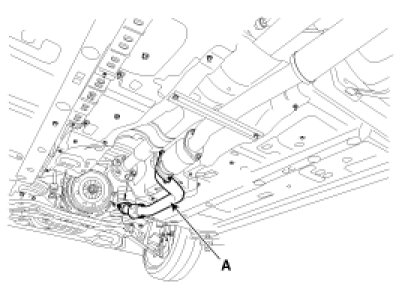

1. Remove the front muffler (A).

Tightening torque :
39.2 - 58.8N.m (4.0 - 6.0kgf.m, 28.9 - 43.4lb-ft)




2. Remove the center muffler (A).

Tightening torque :
39.2 - 58.8N.m (4.0 - 6.0kgf.m, 28.9 - 43.4lb-ft)




3. Remove the main muffler (A).

Tightening torque :
39.2 - 58.8N.m (4.0 - 6.0kgf.m, 28.9 - 43.4lb-ft)
