Home >> Hyundai >> 2012 >> Genesis Coupe L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Engine Control Module

Engine Control Module





ECM Terminal And Input/Output signal

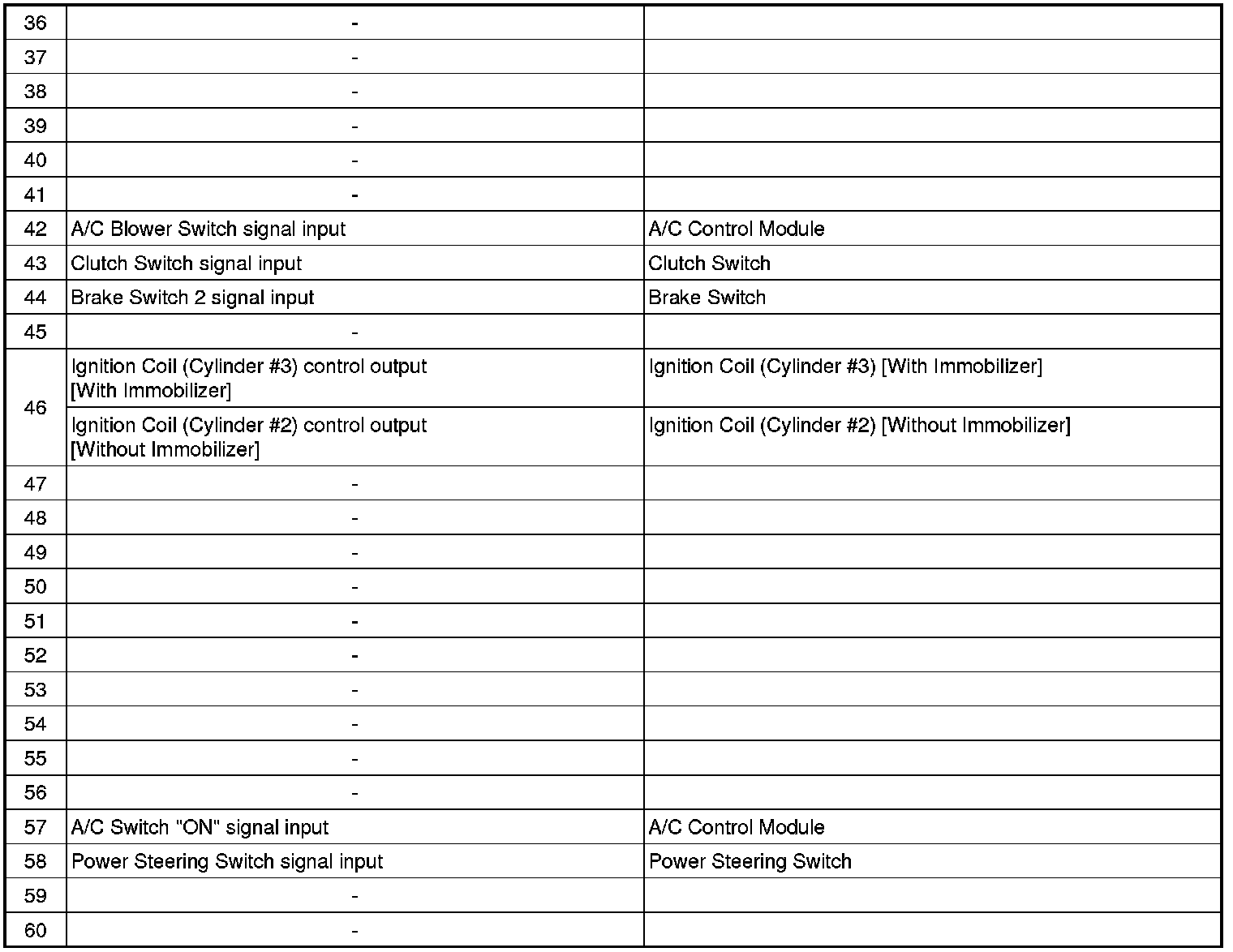

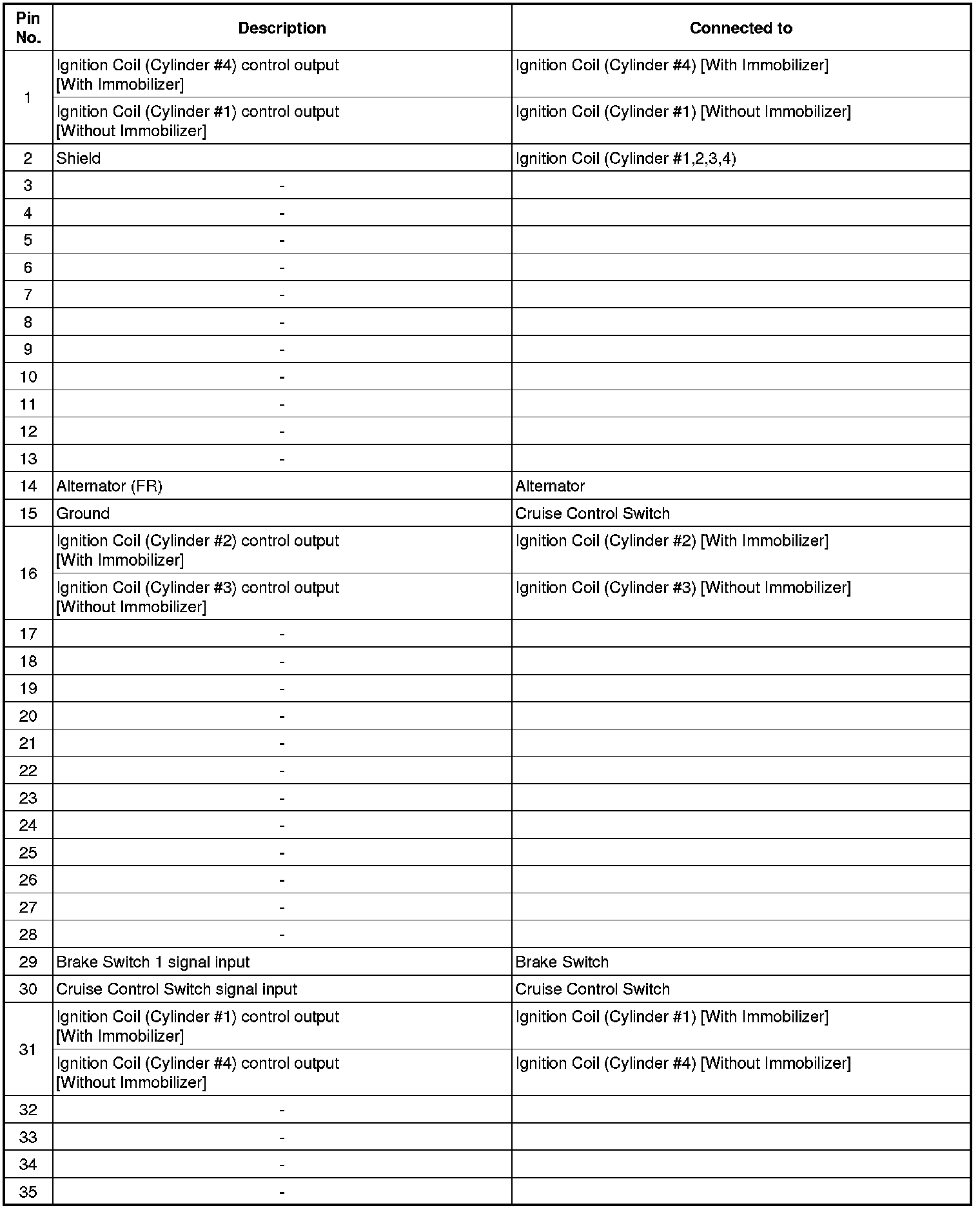

ECM Terminal Function

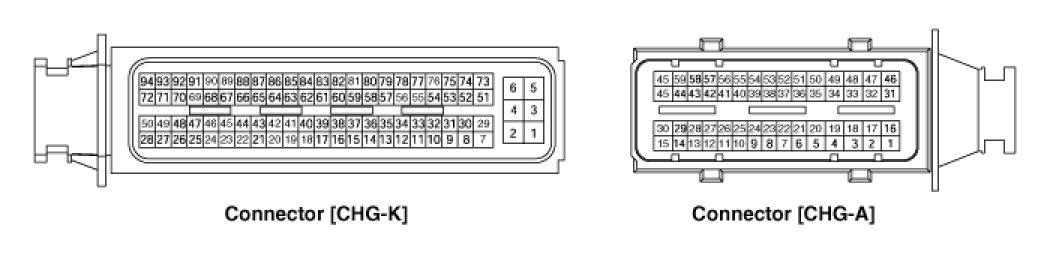

Connector [CHG-K]













Connector [CHG-A]

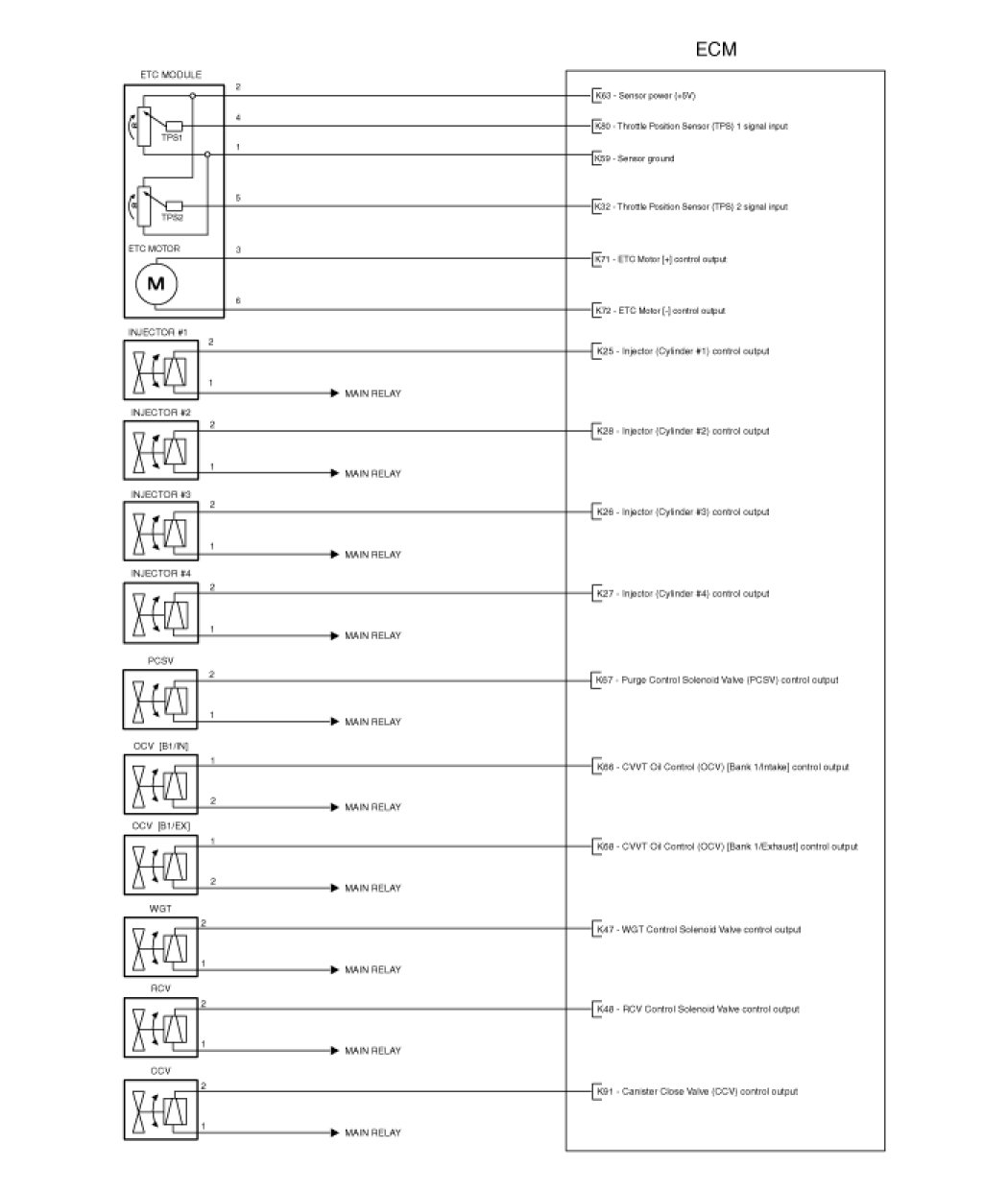

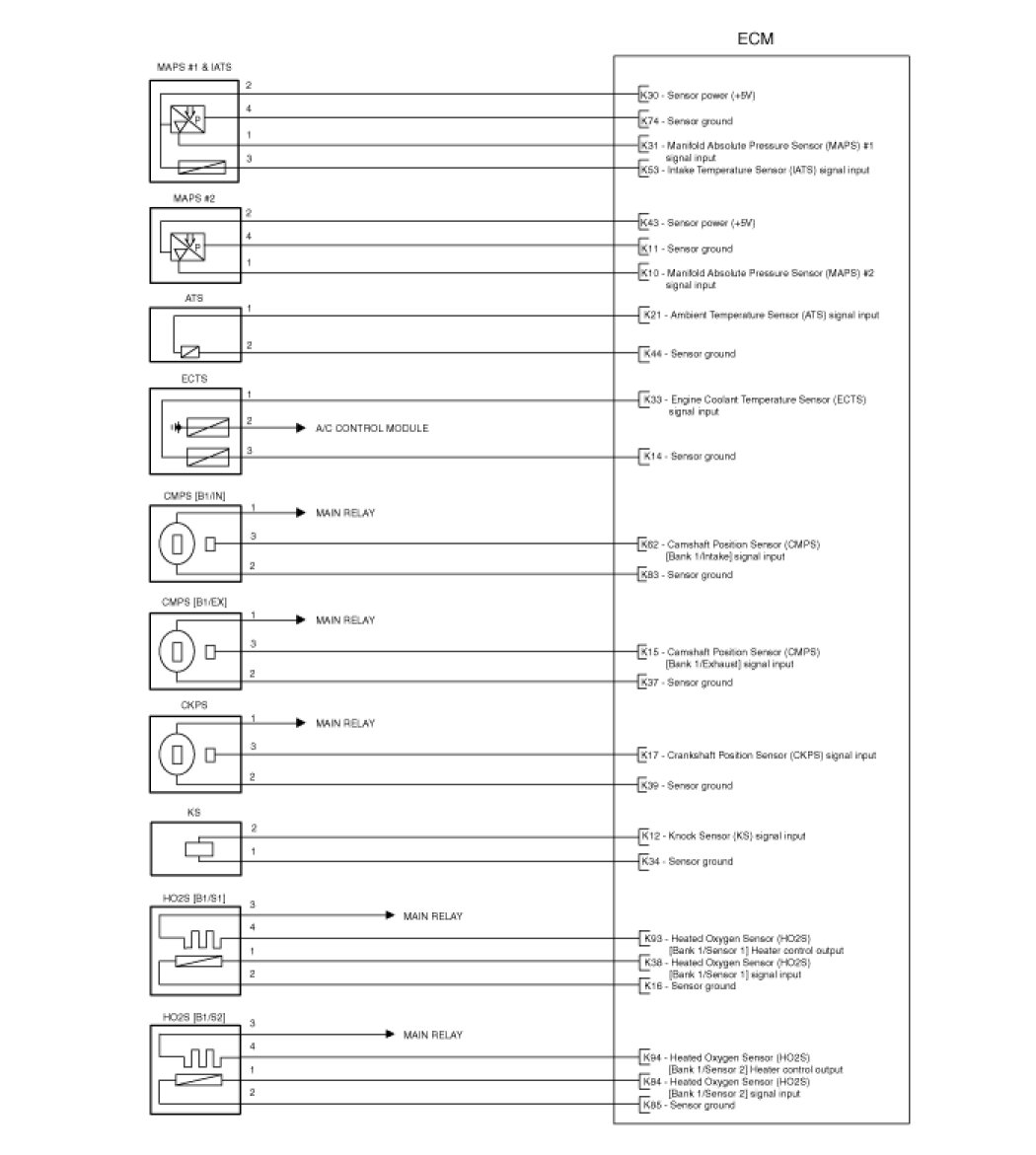

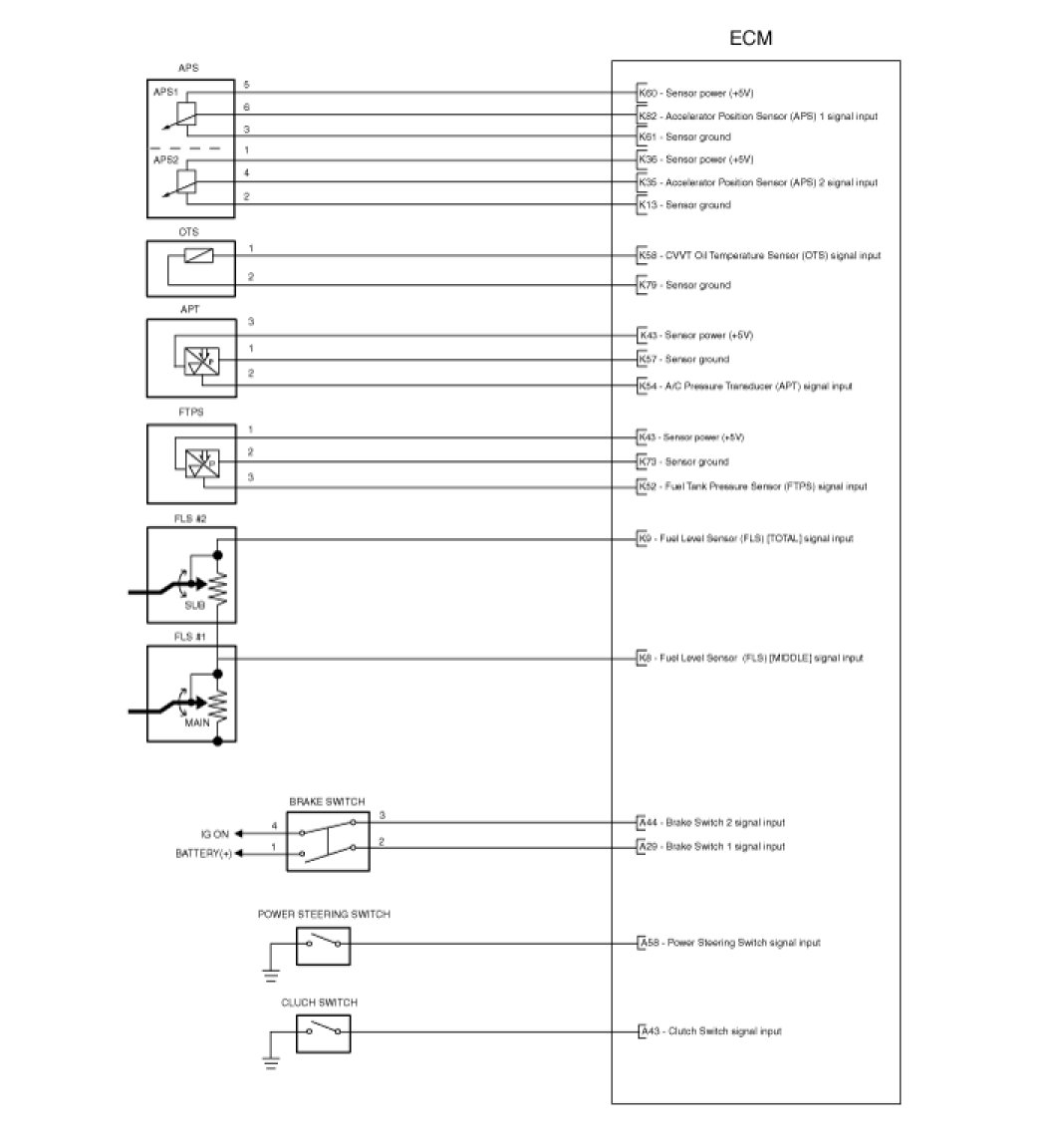

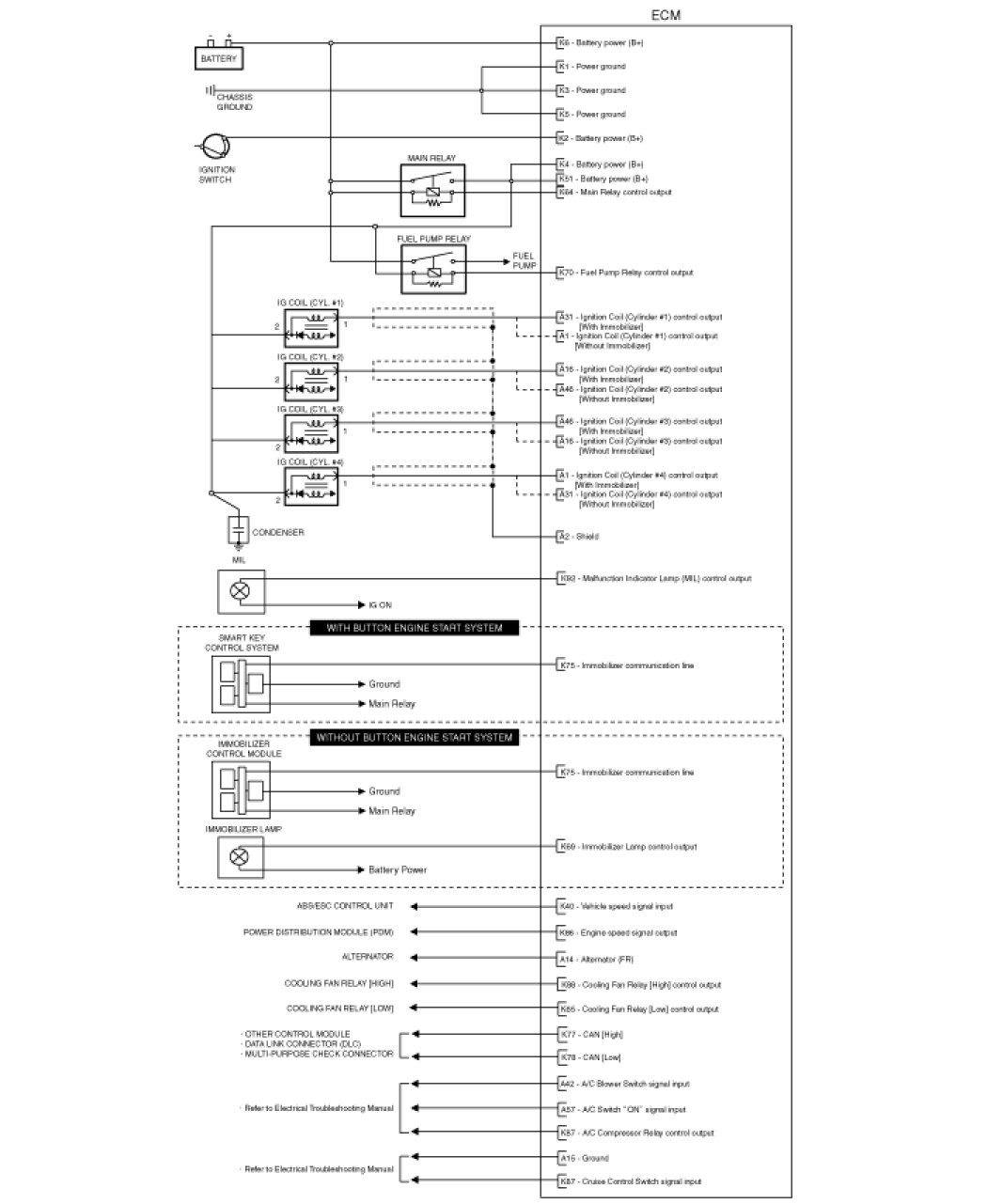

Circuit Diagram
