Repair Procedures

Removal

1. Remove the front bumper cover.

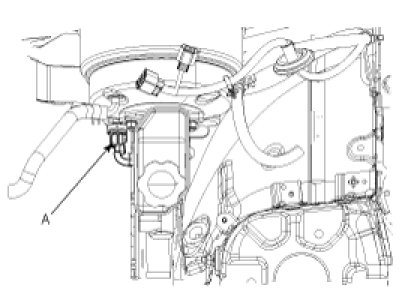

2. Disconnect the Vacuum pump connector (A).

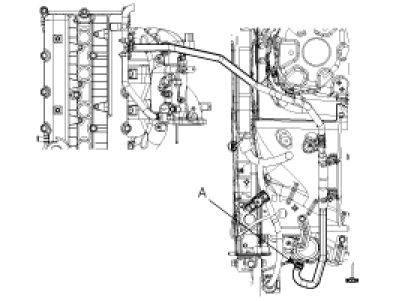

3. Remove the Vacuum hose (A).




4. Remove the mounting bracket bolt (A).

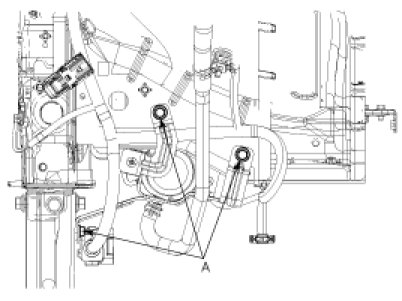

5. Remove the 2 nuts (A) and then remove the bracket from Vacuum pump.






Installation

1. Install the Vacuum pump to the bracket.




2. Install the Vacuum pump & bracket bolt.




3. Install the Vacuum hose.




4. Connect the Vacuum pump connector.




5. Install the front bumper cover.
