Power Door Lock Switch: Service and Repair

Replacement

Front Door Lock Switch
1. Disconnect the negative(-) battery terminal.
2. Remove the front door trim panel.

3. Disconnect the module connector(A) from the wiring harness.




A. Loosen the screw(1EA).




B. Remove the grip handle cover then loosen the upper screw.
C. Loosen the screws(3EA).




D. Remove the power window switch bracket.
E. Loosen the screws from the bracket.

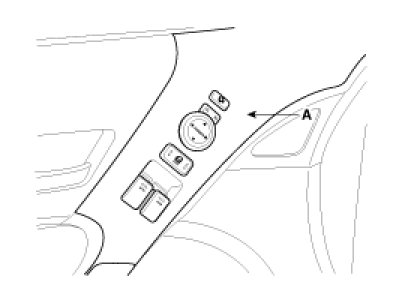

4. Remove the power window switch module(A) from the front door trim panel.





Passenger Door Lock Switch
1. Disconnect the negative(-) battery terminal.
2. Remove the door trim panel.

3. Disconnect the module connector(A).




A. Loosen the screw(1EA).




B. Remove the grip handle cover then loosen the upper screw.
C. Loosen the screws(3EA).




D. Remove the power window switch bracket.
E. Loosen the screws from the bracket.

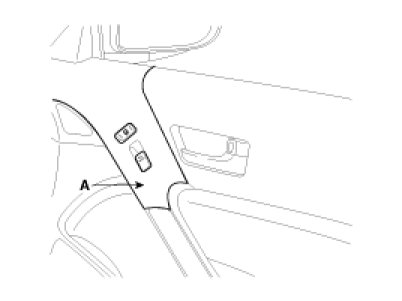

4. Remove the power window switch module(A) from the front door trim panel.
