Keyless Entry: Testing and Inspection

Inspection





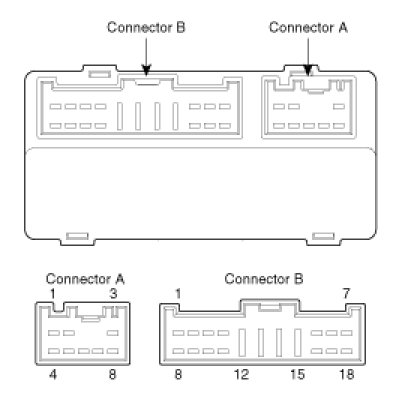

Burglar Alarm Horn
Check for continuity between the terminals.
1. There should be continuity between the No.8 and No.9 terminals when power and ground are connected to the No.8 and No.1 in the ICM relay B terminals.
2. There should be no continuity between the No.8 and No.9 terminals when power is disconnected.

Burglar Alarm
Check for continuity between the terminals.
1. There should be no continuity between the No.11 and No.10 terminals when power and ground are connected to the No.11 and No.4 in the ICM relay B terminals.
2. There should be continuity between the No.11 and No.10 terminals when power is disconnected.

Front Door Lock Actuator Inspection
1. Remove the front door trim.

2. Remove the front door module.
3. Disconnect the 6P connector from the actuator.




4. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.





Trunk Lid Release Actuator Inspection
1. Remove the trunk lid trim panel.

2. Disconnect the 3P connector from the actuator.




3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.





Front Door Lock Switch Inspection
1. Remove the front door trim panel.

2. Remove the front door module.
3. Disconnect the 6P connector from the actuator.

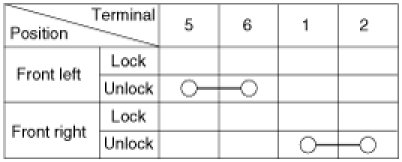

4. Check for continuity between the terminals in each switch position according to the table.





Trunk Lid Open Switch Inspection
1. Remove the trunk lid trim.

2. Disconnect the 3P connector from the actuator.




3. Check for continuity between the terminals in each switch position according to the table.





Door Switch Inspection

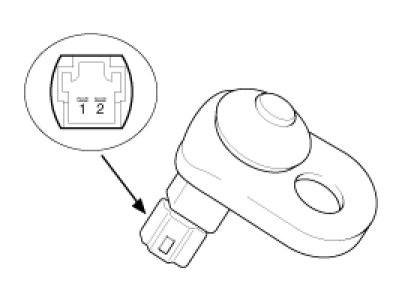

Remove the door switch and check for continuity between the terminals.









Hood Switch Inspection
1. Disconnect the 1P connector from the hood switch(A).

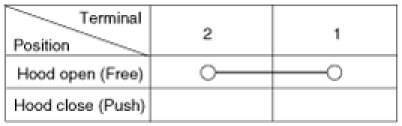

2. Check for continuity between the terminals and ground according to the table.





Burglar Horn Inspection

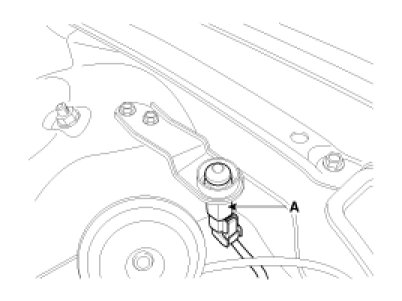

1. Remove the burglar horn(A) after removing 1 bolt and disconnect the 2P connector from the burglar horn.




2. Test the burglar horn by connecting battery power to the terminal 1 and ground the terminal 2.
3. The burglar horn should make a sound. If the burglar horn fails to make a sound replace it.
