Repair Procedures

Replacement

Roof Trim Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.

1. Remove the front seat.
2. Remove the rear seat.
3. Remove the interior trim.

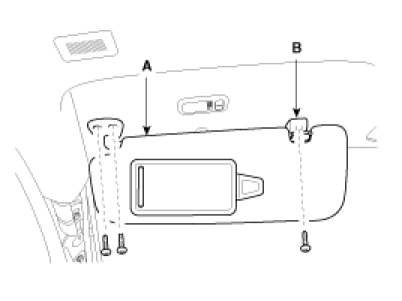

4. Remove the sunvisor
A. Remove the sunvisor (A) and holder (B) from each side.

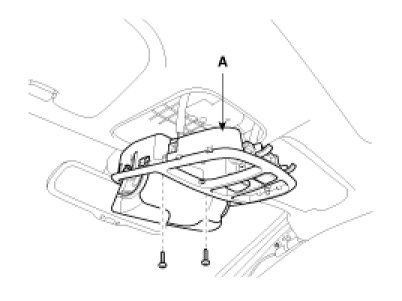

5. Remove the overhead console.
A. Remove the screw.
B. Pull out the roof console (A).

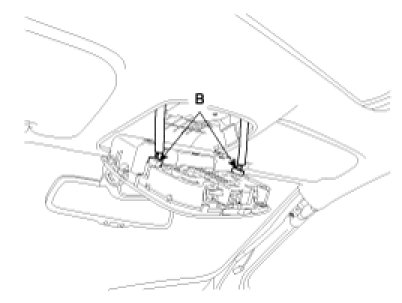

C. Disconnect the connector (B).








6. Remove the cover (A).




7. Disconnect the connector (A).

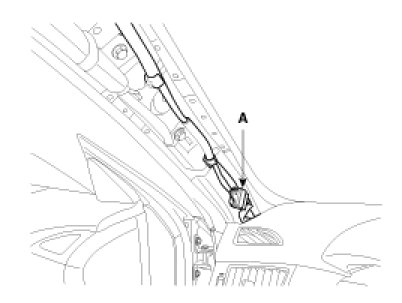

8. Disconnect the connector (A).

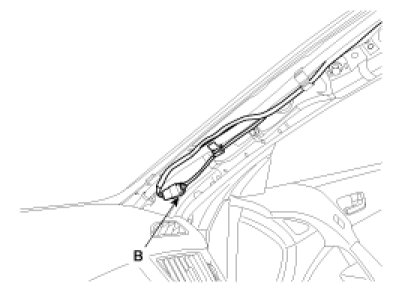

9. Disconnect the connector (B).

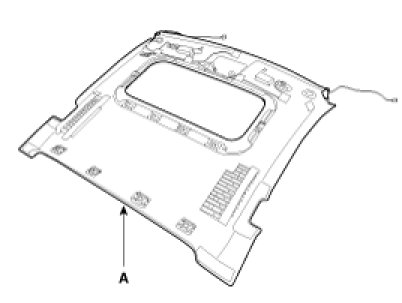

10. Remove the roof trim (A).




11. Installation is the reverse of removal.
