Repair Procedures

Replacement

Floor Console Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

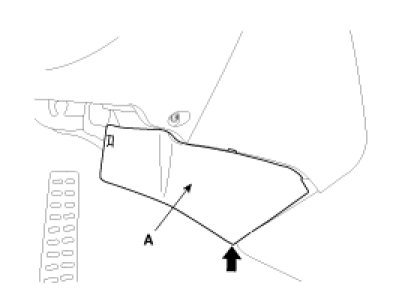

1. Remove the console side cover (A).

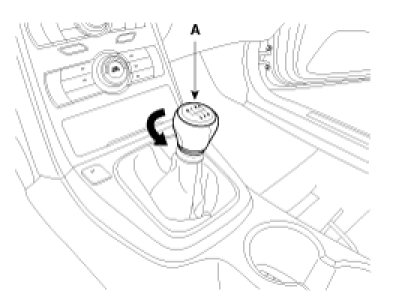

2. Remove the knob (A).

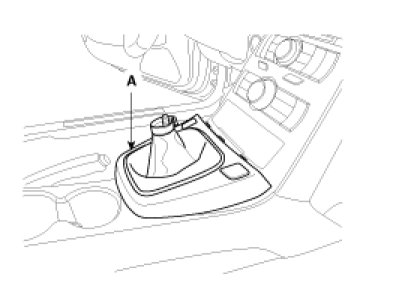

3. Remove the console upper cover (A).

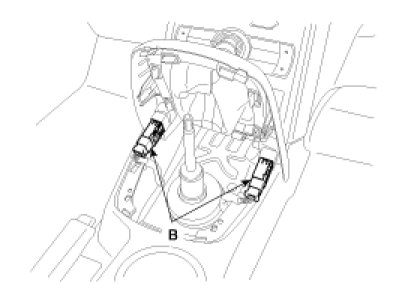

4. Disconnect the connector (B).

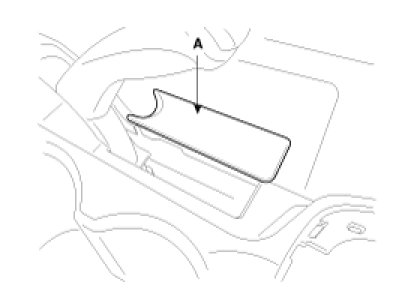

5. Remove the parking brake cover (A).

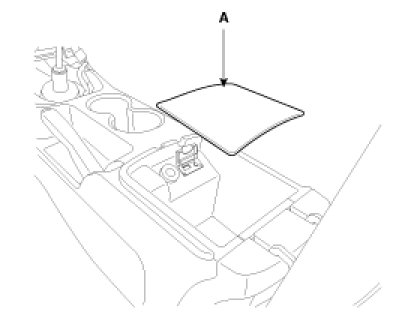

6. Remove the pad (A).




7. After loosening the console mounting screws and bolts, remove the floor console assembly (A).




8. Installation is the reverse of removal.

NOTE:
- Make sure the connector are connected in properly.
- Replace any damage clips.
