Console Lamp: Service and Repair

Inspection

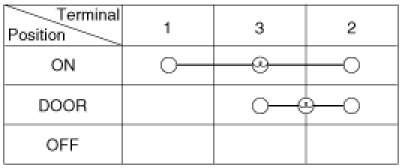

Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.










Removal

1. Disconnect the negative (-) battery terminal.
2. Loosen 2 screws holding the overhead console(A).




3. Disconnect the connectors(A) of sunroof switch then remove the overhead console lamp assembly.




4. If necessary to replace the bulb(A), replace the bulb after opening the overhead console lens.






Installation

1. Install the overhead console lamp after connecting the sunroof switch connector and lamp connector.
2. Install the lens after tightening 2 screws.
