Speaker: Service and Repair

Inspection

1. Troubleshooting for Speaker
(1) Basic inspection of speaker
Inspect the sound from speaker after verifying that the speaker mounting screws is removed and the wiring connector is connected precisely to remove vibration transmitted from body trims and surrounding parts.

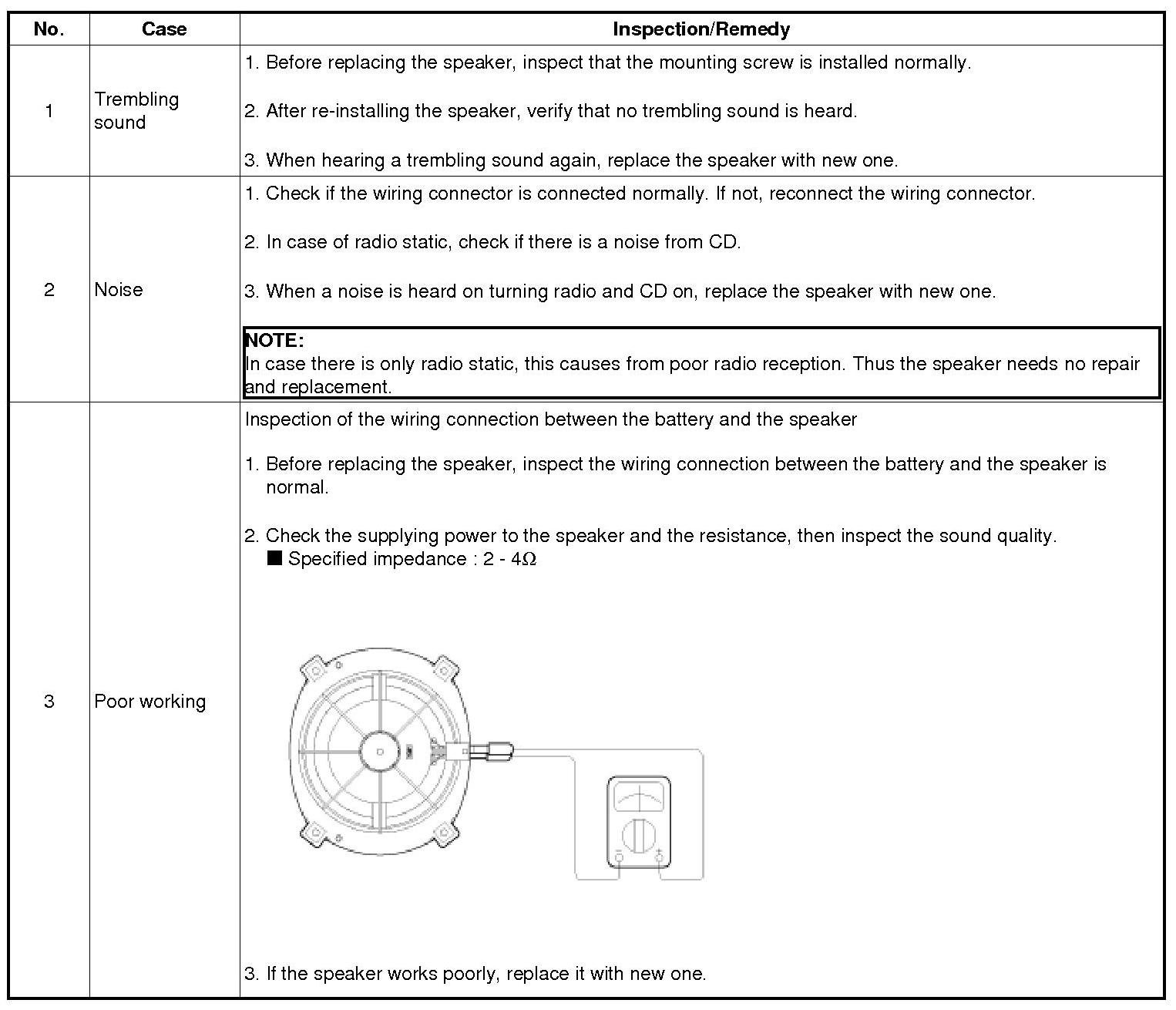

(2) Case Troubleshooting






CAUTION:
- During dealing of speaker
- Do not damage the speaker with impact as like a drop and a throw.
- Be careful not to cover water and oil over the speaker.

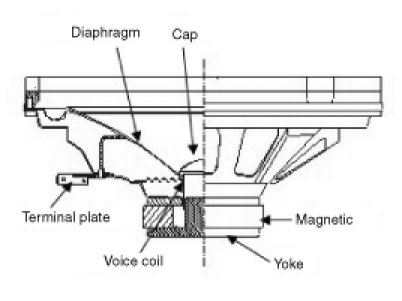

- Caution during dealing of speaker because the material of diaphragm is paper which is easy to be torn by impact and external force.
- When modifying audio system as customer pleases, this does electric damage to speaker.
- And, in this case the speakers are not covered by the manufacturer's warranty.

Removal

Front Speaker

1. Remove the front door trim panel.

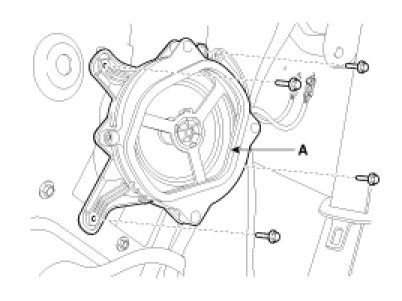

2. Remove the front speaker (A) after loosening 4 rivets.





Rear Speaker
1. Remove the rear seat.

2. Remove the rear side trim and then remove the rear speaker (A) after removing 4 bolts.





Crash pad center speaker
1. Remove the center fascia upper panel(A).

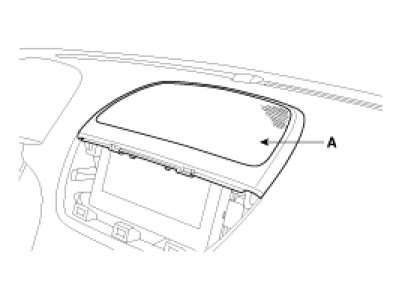

2. Remove the speaker grille(A).

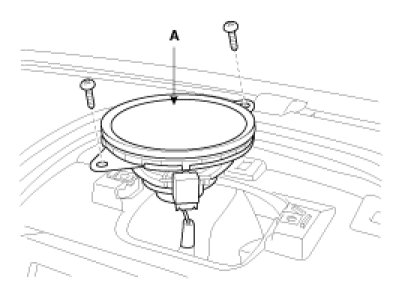

3. Remove the center speaker(A) after loosening the mounting screws.





Tweeter Speaker
1. Remove the front door trim(A).

2. Remove the tweeter speaker(A) from the front door trim after disconnecting the connector.





Woofer Speaker
1. Fold the rear seat forward.

2. Remove the rear package tray.

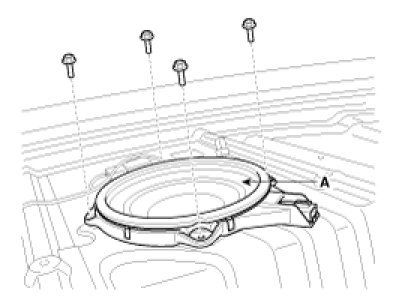

3. Remove the woofer speaker (A) after removing 4 bolts.





External Amp
1. Remove the rear seat.

2. Remove the rear right side trim.

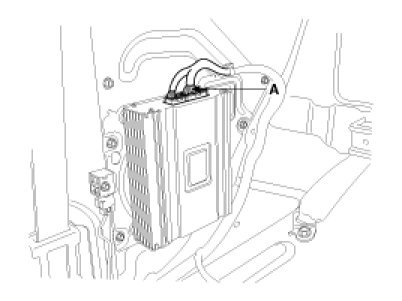

3. Remove the external amplifier connector(A) from the rear right quarter panel.

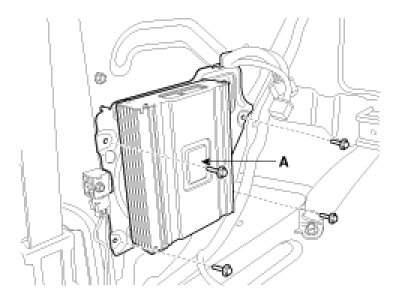

4. Remove the external amplifier(A) after loosening the mounting bolts.






Installation

Front Speaker
1. Install the front speaker.
2. Install the front door trim.

Rear Speaker
1. Install the rear speaker.
2. Install the rear side trim.
3. Install the rear seat.

Crash pad center speaker
1. Install the center speaker.
2. Install the center speaker grille.
3. Install the center fascia upper panel.

Tweeter Speaker
1. Install the tweeter speaker after connecting the tweeter speaker connector.
2. Install the front door trim.

Woofer Speaker
1. Install the woofer speaker after connecting the connector.
2. Install the rear package tray and rear seat assembly.

External Amp
1. Install the external amplifier after connecting the connector.
2. Install the rear right side trim.
