Repair Procedures

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the console upper cover(A).




3. Remove the crash pad center fascia lower panel(A).





4. Remove the mounting screws then remove the audio head unit(A).




5. Remove the connectors and cable(A).






Disassembly

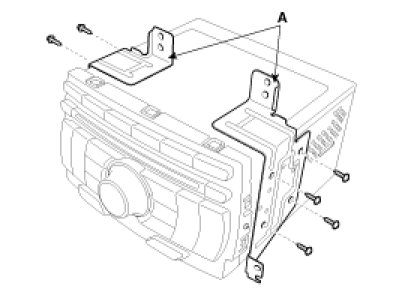

1. Remove the brackets(A) after loosening the mounting screws.

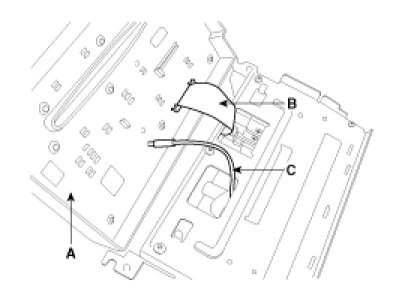

2. Disassemble the front panel(A) then disconnect the connector(B) and cable jack(C) between the unit and front panel.




3. Disassemble the front cover(A) after loosening 4 screws.

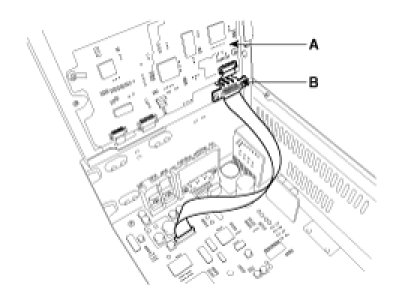

4. Disconnect the connector(B) between the unit and the deck(A) after loosening screws.




5. Disassemble the deck from the unit.

Reassembly

1. Reassemble the deck to the audio unit.
2. Reassemble the front cover.
3. Reassemble the front panel.
4. Reassemble the audio brackets.

NOTE:
Make sure the film connector and cable jack are plugged in properly.

Installation

1. Connect the audio unit connectors and cables.
2. Install the audio unit.
3. Install the crash pad center fascia lower panel.
4. Install the console upper cover.
5. Check the audio system.

NOTE:
Make sure the audio head unit connectors are plugged in properly and the antenna cable is connected properly.
