General Information

Engine Control
P2066 Fuel Level Sensor - General Information

Component Location





General Description

The Fuel Level Sensor(FLS) measures the fuel level in fuel tank and its information is used to supply the ECM with information regarding the monitoring condition of the EVAP canister purge system for leak detection. If the fuel level sensor is monitored for high or low stuck or difference between voltage of fuel level sensor and voltage deviation of fuel level sensor is exceeds limited value while driving, this is interpreted by the ECM as a fault.

DTC Description

ECM sets DTC P2006 if the calculated fuel consumption is more than 30% or the feul level signal variation from fuel level sensor is less than 5%

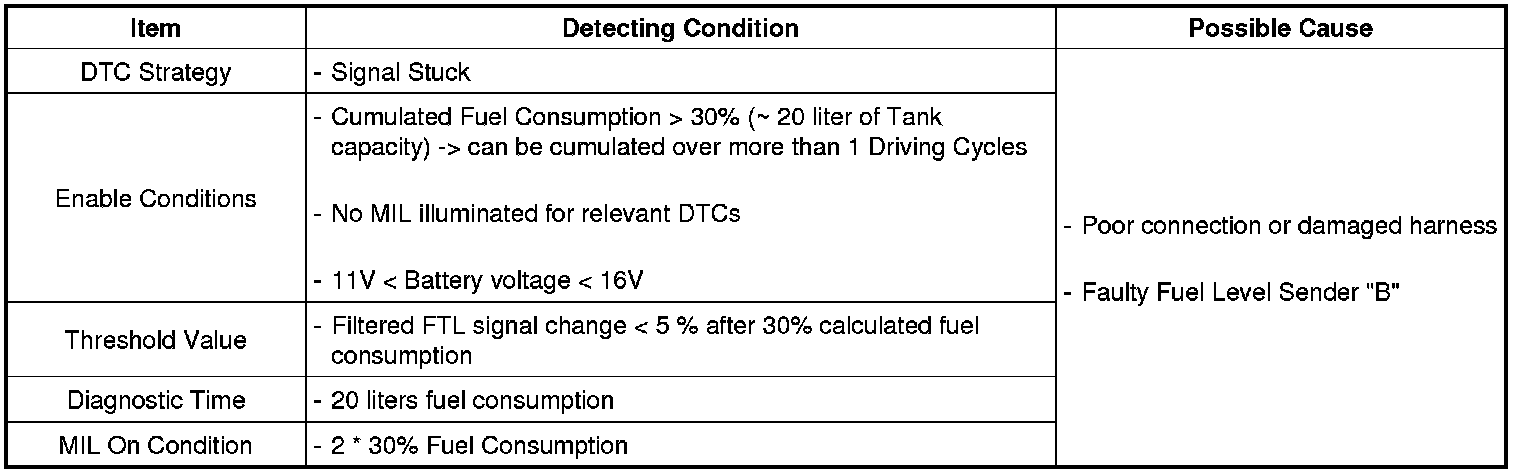

DTC Detecting Condition

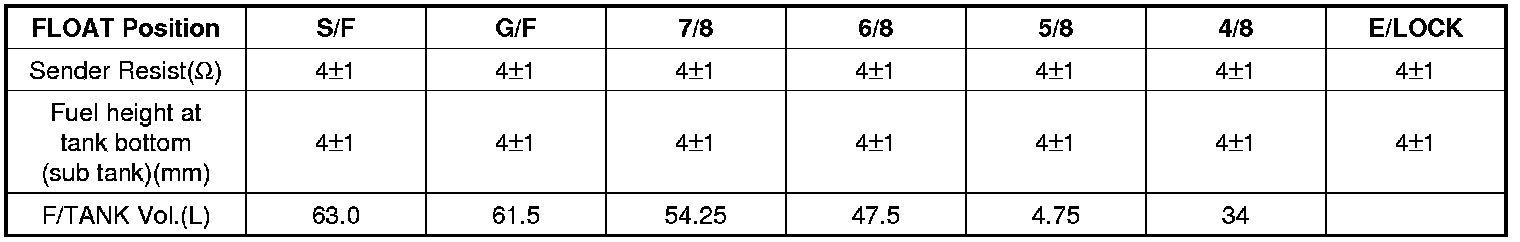

Specification





Diagnostic Circuit Diagram
