General Information

Automatic Transaxle
P0773 Shift Control Solenoid Valve - General Information

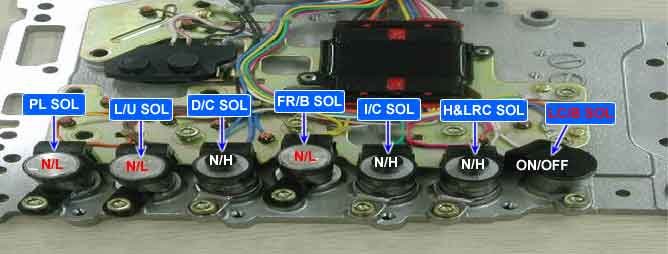

Component Location





General Description

The Automatic Transmission changes the gear position of the transmission utilizing a combination of Clutches and Brakes, which are controlled by solenoid valves. High&low reverse clutch solenoid valve is controlled by the TCM in response to signals sent from the inhibitor switch, vehicle speed sensor and accelerator pedal position sensor (throttle position sensor). Gears will then be shifted to the optimum position.

DTC Description

The PCM/TCM checks the Shift Control Solenoin Valve E control signal by monitoring the feedback signal from the solenoid valve drive circuit. If an unexpected signal is monitored, (For example, high voltage is detected when low voltage is expected, or low votage detected when high voltage is expected)

DTC Detectiong Condition





Diagnostic Circuit Diagram
