P0768 Shift Control Solenoid Valve - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to data link connector(DLC)
2. Engine "ON".
3. Monitor the "H& LR/C SOLENOID" parameter on the GDS.
4. Select "D RANGE" and Operate the vehicle.
5. Check ""H& LR/C SOLENOID" parameter value changes while driving.

Specification :Changeable correspondence with each gear postion
































Fig 1) "P" range
Fig 2) "R" range
Fig 3) "N" range
Fig 4) 1st gear in "D" range
Fig 5) 1st gear in sports mode

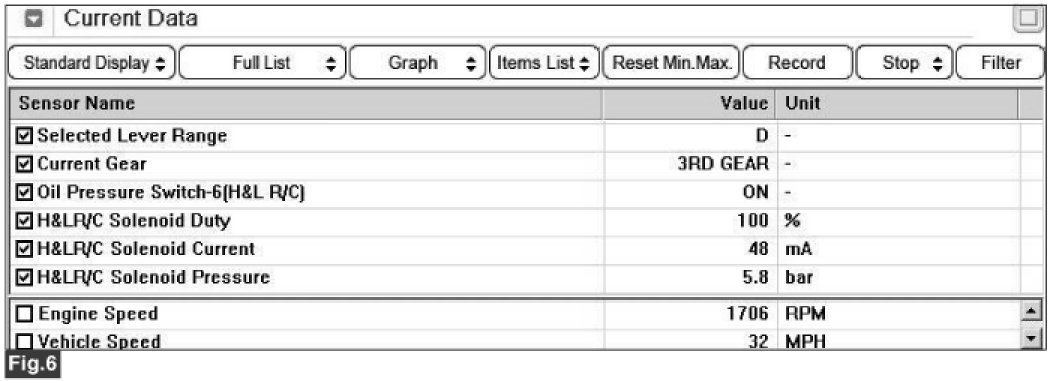

Fig 6) 2nd gear in "D" range
Fig 7) 2nd gear in sports mode
Fig 8) 3rd gear in "D" range
Fig 9) 4th gear in "D" range
Fig 10) 5th gear in "D" range
6. Does the "Shift Control Solenoid Valve" follow the reference data ?
