Component Inspection

Automatic Transaxle
P0763 Shift Control Solenoid Valve - Inspection/Repair:_:Component Inspection

Component Inspection

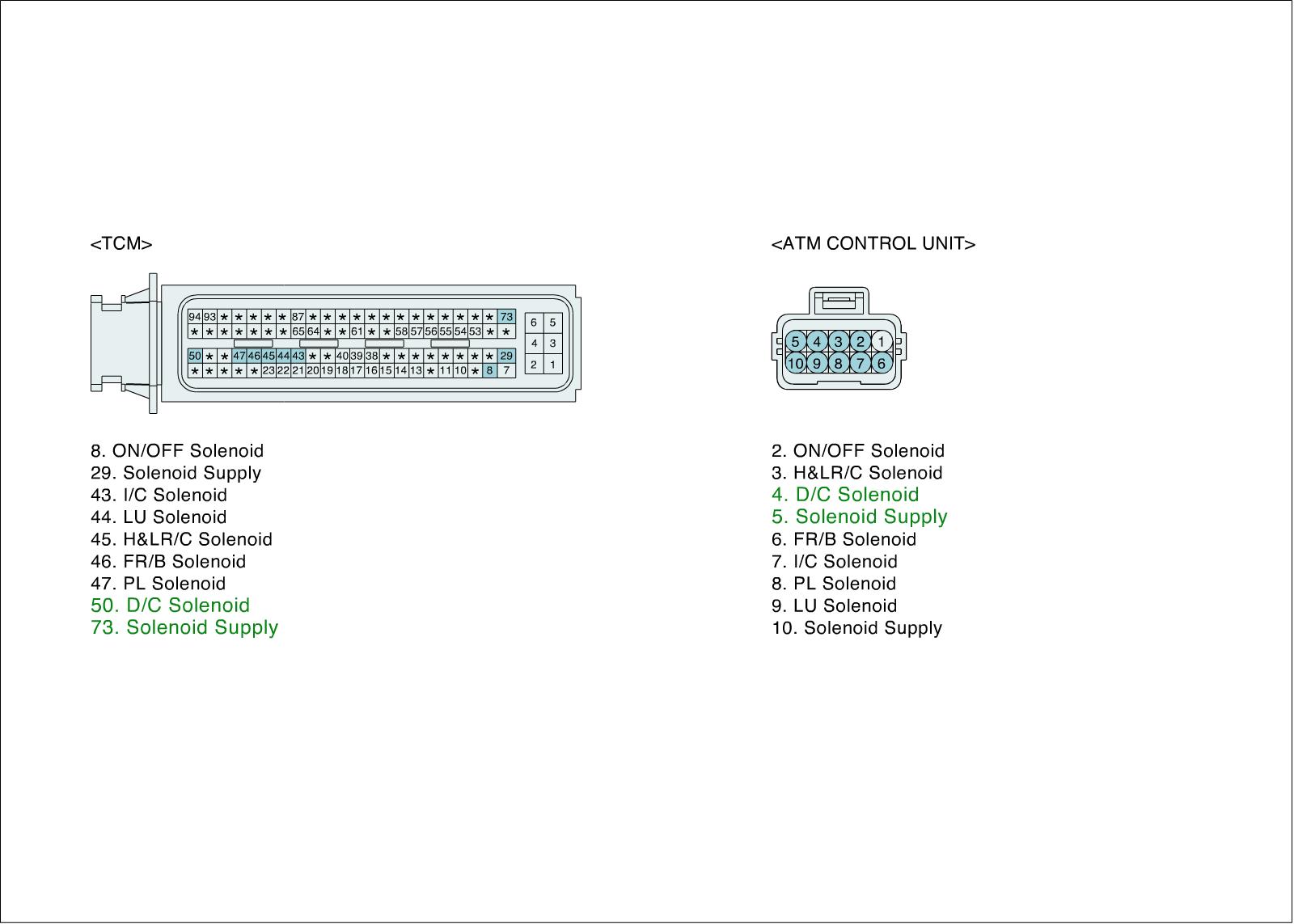

Check shift solenoid valve "DC"
1. Disconnect " ATM Solenoid Valve connector.
2. Ignition "OFF".
3. Measure continuity between ground terminal of DC Solenoid and chassis ground.

Specification :Approx. 3 - 9Ohms
