Scantool Diagnostics

Automatic Transaxle
P0758 Shift Control Solenoid Valve - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to data link connector(DLC)
2. Engine "ON".
3. Monitor the Fr/B SOLENOID" parameter on the GDS.
4. Select "D RANGE" and Operate the vehicle.
5. Check "FR/B SOLENOID" parameter value changes while driving.

Specification :Changeable correspondence with each gear postion
































Fig 1) "P" range
Fig 2) "R" range

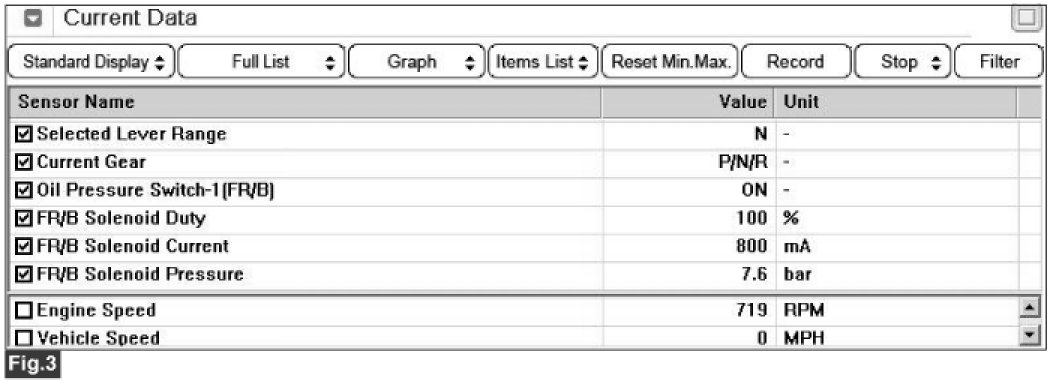

Fig 3) "N" range

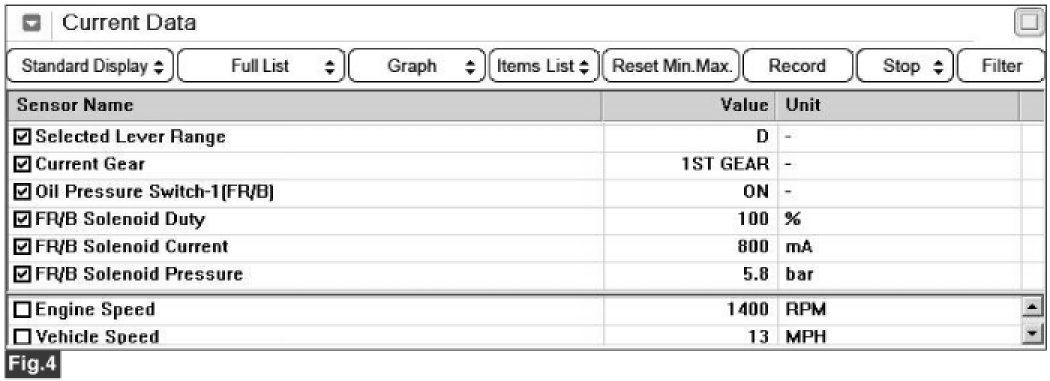

Fig 4) 1st gear in "D" range
Fig 5) 2nd gear in "D" range
Fig 6) 3rd gear in "D" range
Fig 7) 4th gear in "D" range

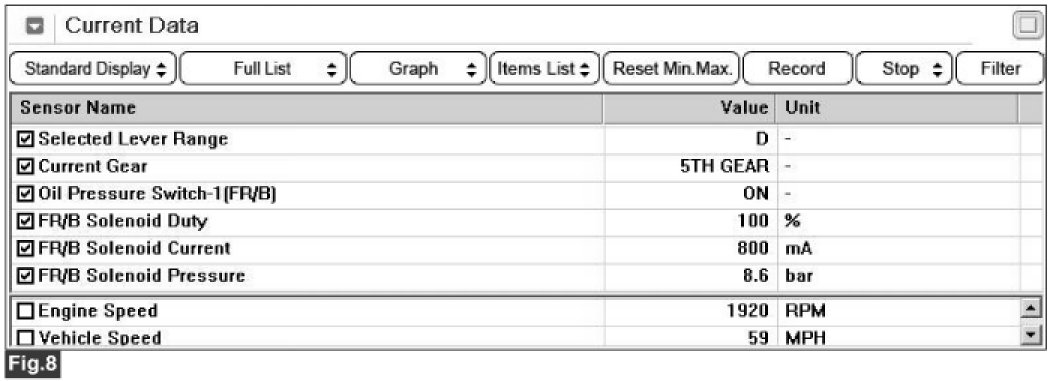

Fig 8) 5th gear in "D" range
6. Does the "Shift Control Solenoid Valve" follow the reference data ?
