Component Inspection

Automatic Transaxle
P0753 Shift Control Solenoid Valve - Inspection/Repair:_:Component Inspection

Component Inspection

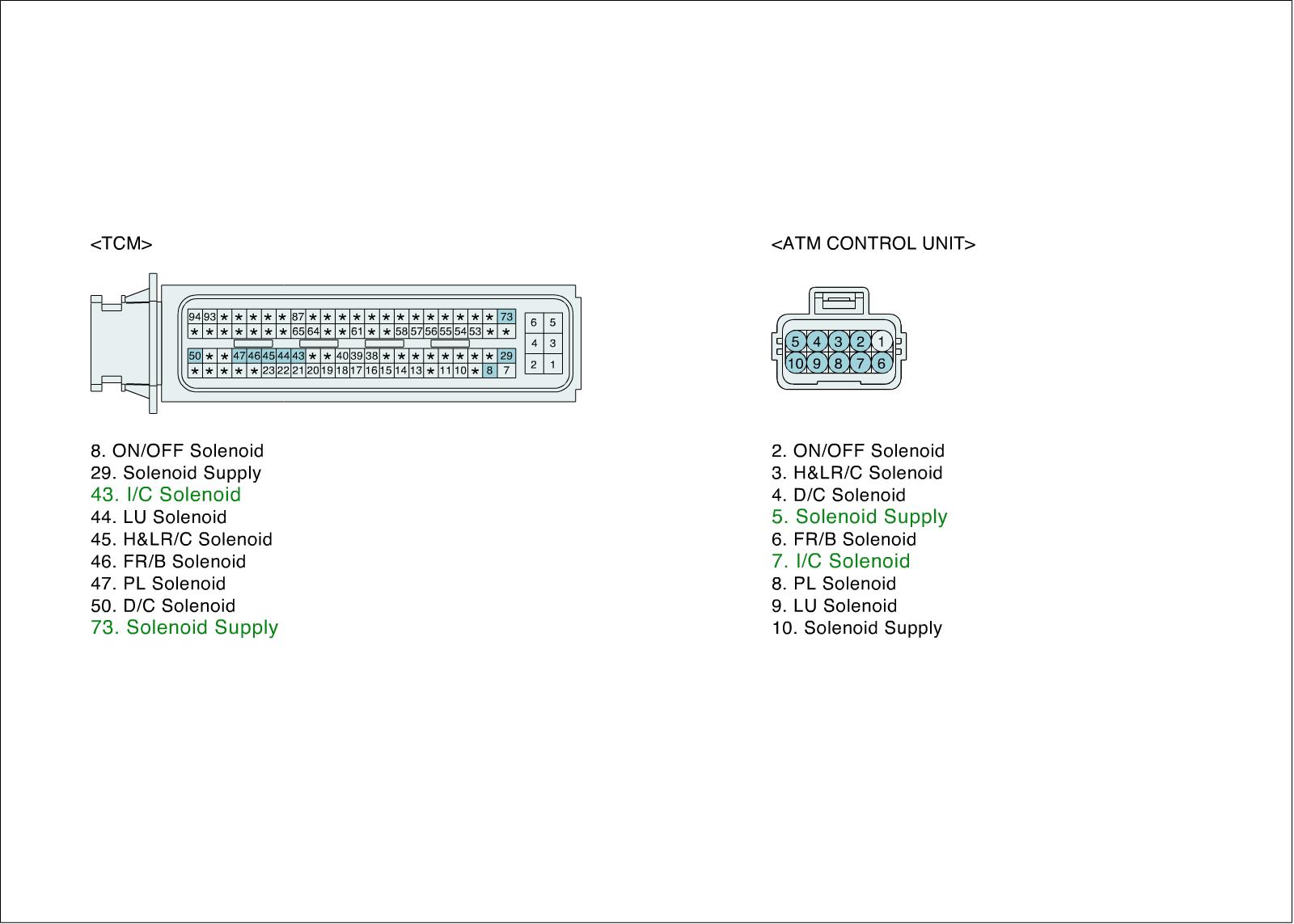

Check shift solenoid Valve "I/C"
1. Disconnect " ATM Solenoid Valve connector.
2. Ignition "OFF".
3. Measure continuity between ground terminal of IC Solenoid and chassis ground.

Specification :Approx. 3 - 9Ohms








4. Is the measured resistance within specifications ?
