Component Inspection

Automatic Transaxle
P0748 Pressure Control Solenoid Valve(VFS) - Inspection/Repair:_:Component Inspection

Component Inspection

Check Pressure Control Valve
1. Disconnect " ATM Solenoid Valve connector.
2. Ignition "OFF".

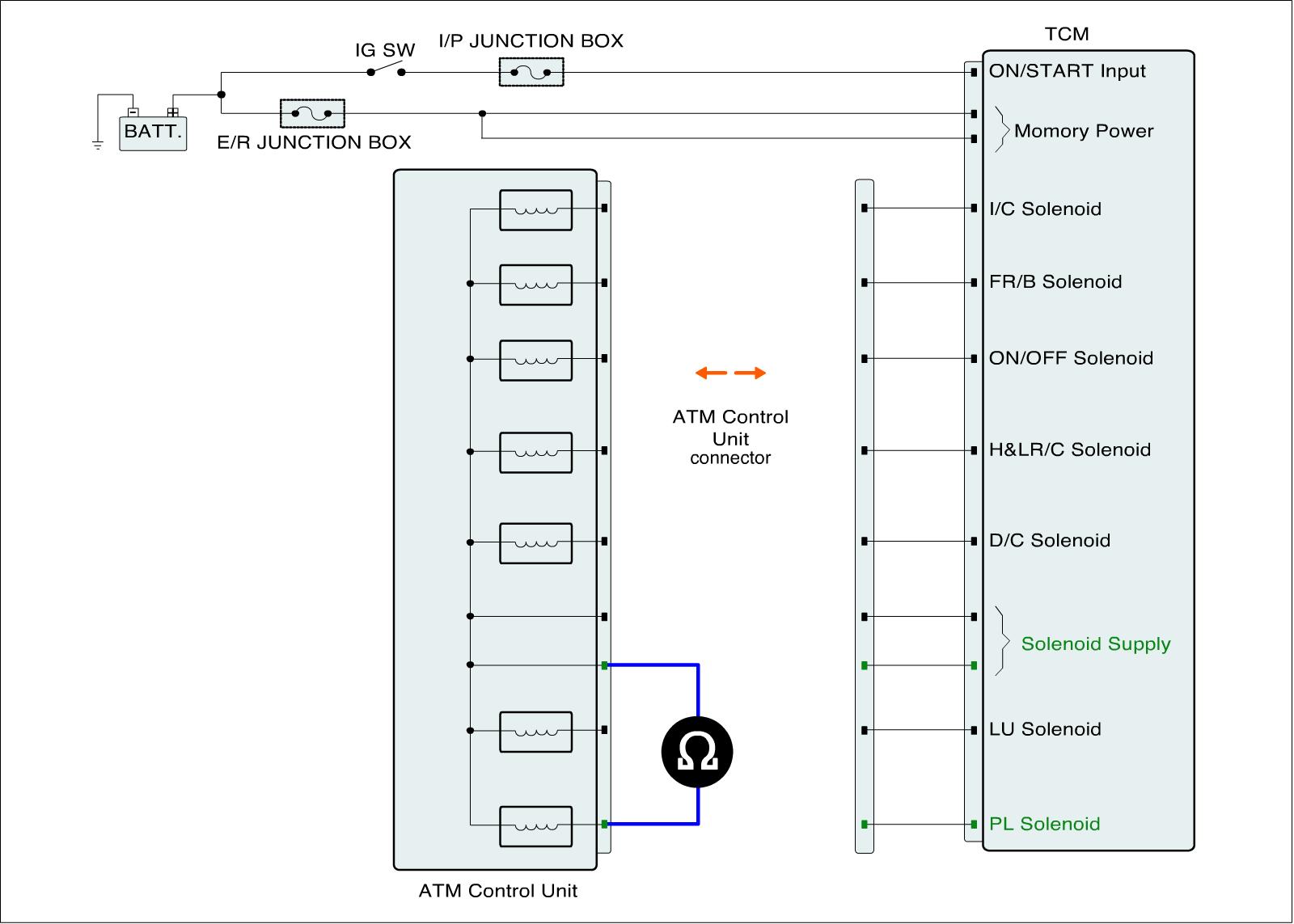

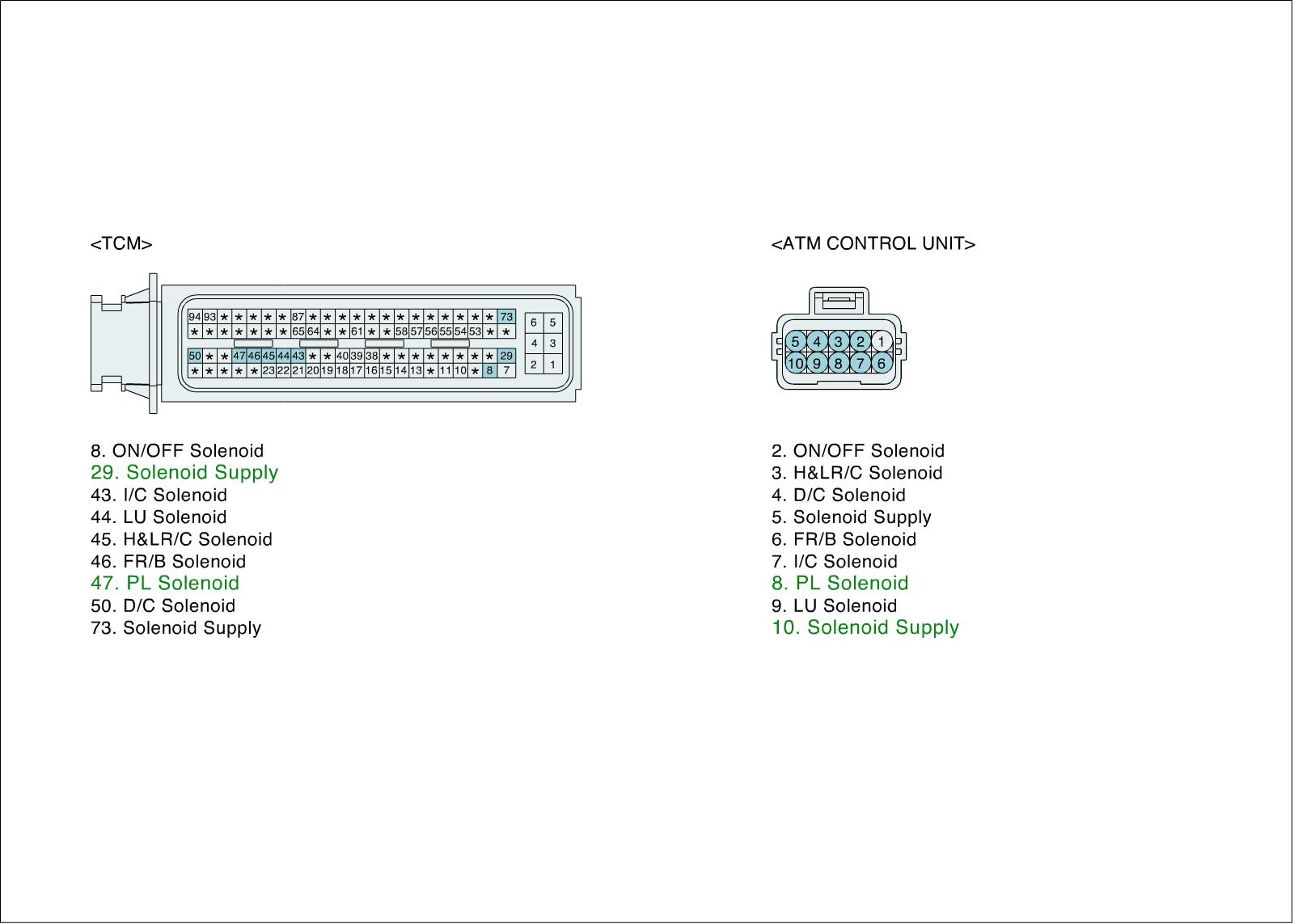

3. Measure continuity between ground terminal of PL Solenoid and chassis ground.

Specification :Approx. 3 - 9Ohms
